Condux | SKU:
08960875

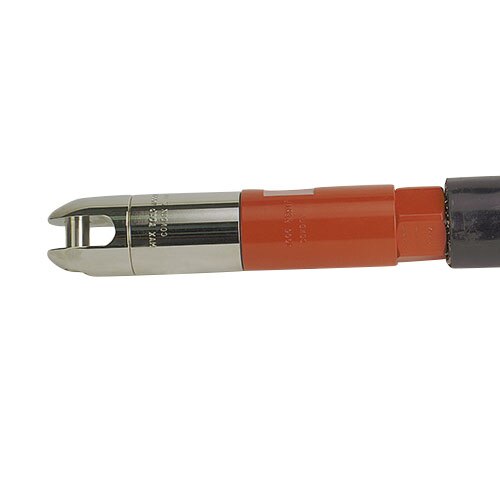

Condux 08960875 2/0 AWG Black Swivel Head Power Pulling Eye
Free Shipping
$356.99
Unit price
/
Unavailable
Description
Description
Condux 08960875 Description
The Swivel Head Power Pulling Eye is a hybrid tool that combines features from standard reusable power pulling eyes and Condux swivels for superior performance. A swivel head prevents twisting and binding of the cable as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single cables into individual conduits or multiple cables into a single conduit. Each Swivel Head Power Pulling Eye includes a swivel head, sleeve nut, and plug.
Condux 08960875 Includes
- (1) Swivel Head
- (1) Sleeve Nut
- (1) Plug
Condux 08960875 Features
- Reusable
- Will fit the 1/8"" (3 mm) and 1/4"" (6 mm) cable pulling harnesses
Condux 08960875 Specifications
| Part Number | 08960875 |
| Cable Size | 2/0 AWG |
| Color | Black |

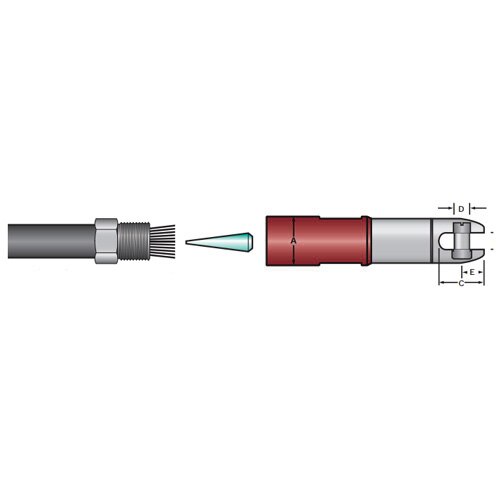

| Max Conductor Diameter | .419 in. (11 mm) |
| Max Eye OD (A) | 1.00 in. (25 mm) |
| Slot Width (B) | .38 in. (10 mm) |
| Slot Depth (C) | 1.06 in. (27 mm) |
| Pin Diameter (D) | .31 in. (8 mm) |
| Pin Center (E) | .53 in. (13 mm) |
| Replacement Plug | 08960823 |
| Load Rating | 2,500 lbs (1,134 kg) |
