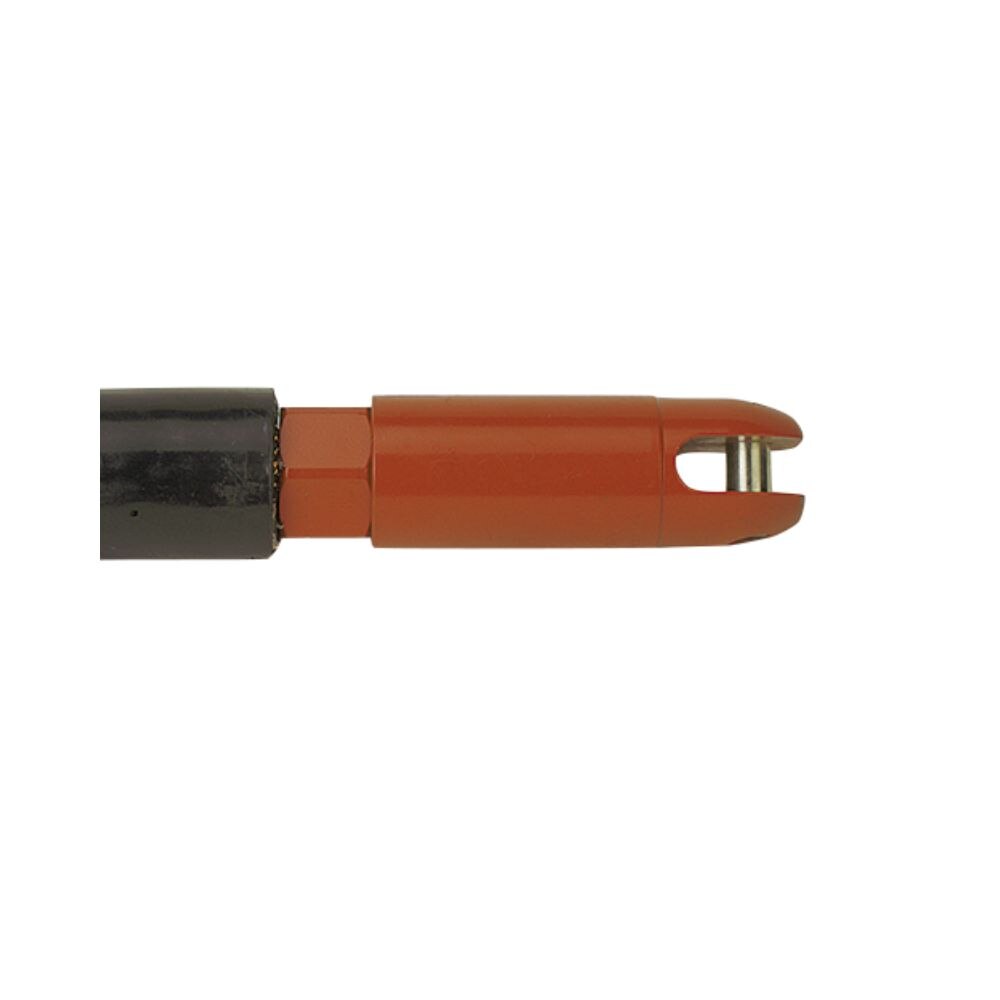

Condux 08960950 3/0 AWG Orange Clevis Head Reusable Power Pulling Eye
Free Shipping
$288.99
Unit price
/
Unavailable
Description
Description
Condux 08960950 Description
The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
Condux 08960950 Includes
- (1) Clevis Socket
- (1) Sleeve Nut
- (1) Plug
Condux 08960950 Features
- Slotted Head with Clevis Pin
- Will fit the 1/8" (3 mm) and 1/4" (6 mm) cable pulling harnesses
Condux 08960950 Specifications
| Part Number | 08960950 |
| Cable Size | 3/0 AWG |
| Color | Orange |
| Maximum Conductor Diameter | .475 in. (12 mm) |
| Max Eye OD (A) | 1.00 in. (25 mm) |
| Slot Width (B) | .38 in. (10 mm) |
| Slot Depth (C) | 1.06 in. (27 mm) |
| Pin Diameter (D) | .31 in. (8 mm) |
| Pin Center (E) | .53 in. (13 mm) |
| Replacement Plug Part Number | 08960923 |
| Load Rating | 2500 lbs (1134 kg) |
