Spitznas | SKU:
2 1317 0030 SA

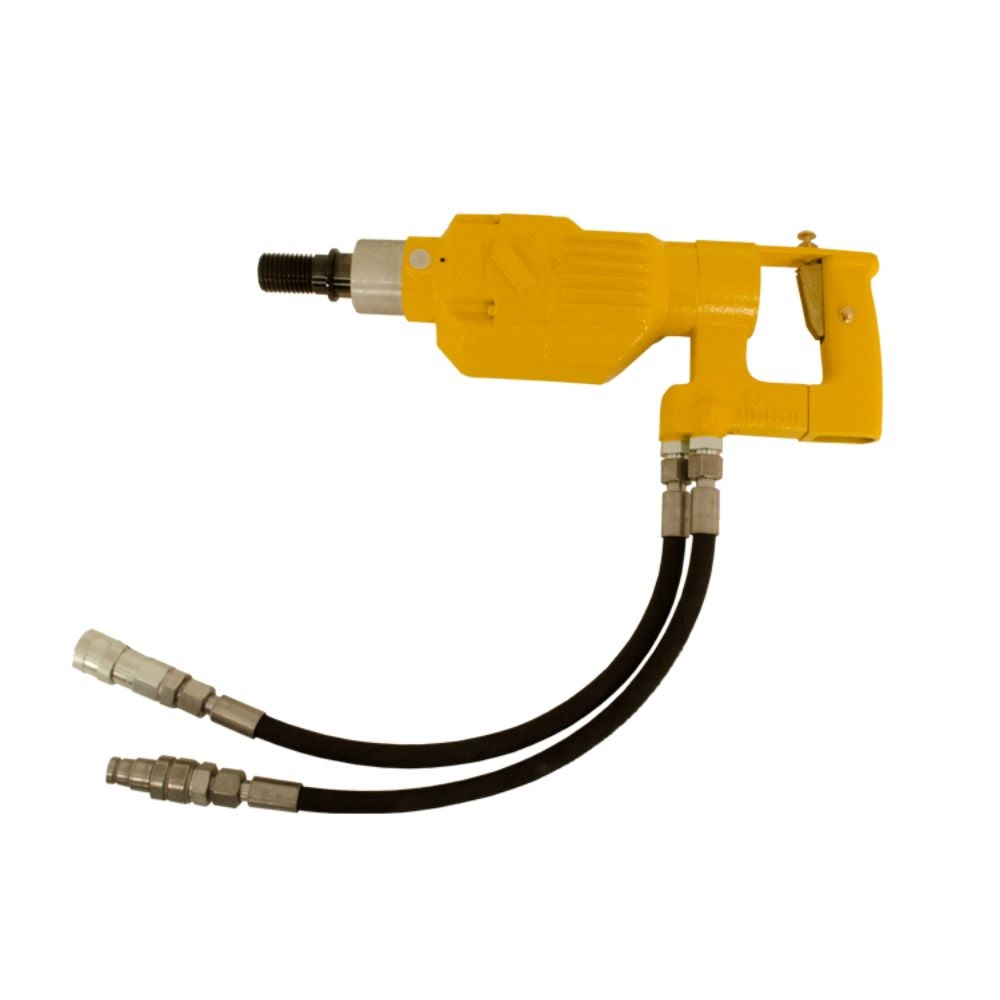

Spitznas CS Unitec 2 1317 0030 SA Wet Hand Held Hydraulic Core Drill |6" Capacity | 3-Speed | w/ Anchor Stand Kit
Free Shipping
$5,391.14
Unit price
/
Unavailable
Description
Description
CS Unitec 2 1317 0030 SA Includes
- (1) 2 1317 0030 SA Core Drill
- (1) Anchor Stand with Motor Mount
- (1) Rotatable Side Handle
- (1) Metal Carrying Case for Drill
- (1) 1-1/4" x 7 UNC adapter
- (1) 5/8" x 11 UNC adapter
CS Unitec 2 1317 0030 SA Features
- Powerful 3-speed hydraulic handheld core drill with anchor/vacuum stand/rig. Drill and Stand can be easily mounted independently.
- 6" diameter hole capacity in reinforced concrete & more.*
- Increased Safety: ATEX certified drill motor for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces.
- 3.6 HP Hydraulic motor provides excellent power to weight ratio, continuous run time and long life.
- Increased Safety: Mechanical slip clutch design
- 3 speed gear box (390/900/1800 rpm free speed) for increased bit life and cut quality.
- Self-regulating oil flow control, ideal for heavy-duty core drilling
- Drill can be used handheld or rig-mounted. Vacuum Pump also available for Anchor/vacuum stand.
- For professional drilling contractors and underwater applications. Ideal for heavy-duty wet drilling in concrete, reinforced concrete, and asphalt
- Stand is easily adjustable up to 45? from vertical
CS Unitec 2 1317 0030 SA Specifications
| Motor | 2.1 HP, 3.6 HP, 6 GPM @ 2000 PSI, 1/2" ID |
| Power Type | Hydraulic |
| Max. Drilling Diameter | 6"* |
| Drill Machine (2 1317 0030) ATEX Certification | II 2G Ex h IIB T5 Gb |
| Load Speed | 380/900/1800 RPM |
| Weight | 47 lbs. |
| Spindle Connection(s) | 1-1/4" x 7 UNC, 5/8" x 11 UNC |
| Hose & Fittings | 1/2" ID hose with 3/8" FF (HTMA) couplings |
| Oil Flow | 6 GPM @2000 PSI |
| Stand | Rig Mount Core Drill w/ Anchor Stand |
| Handheld or Rig Mounted | Handheld & Anchor/Vacuum Stand (Vacuum Pump Available) |
| Stand | BST 162 V Anchor/ Vacuum Stand (Included) (Vacuum Pump Not Included)This CS Unitec Spitznas powerful hydraulic wet diamond core drill is designed for fast, accurate drilling in concrete, reinforced concrete and other masonry materials. For driiling in reinforced concrete up to 6" diameter. This Sealed 3-speed gearbox with permanent oil bath lubrication. The hydraulic motor is ATEX certifed for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces offer increased safety. The motor operates at 2000 PSI oil pressure with required flow is 6 GPM. Additional flow is automatically bypassed back to the tank up to a maximum input of 13 GPM. The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8" x 11 UNC and 1-1/4" x 7 UNC and G 1/2" connecting threads are standard. 1/2" hose diameter with 3/8" FF (HTMA) couplings. Optional accessories include anchor stand, combination anchor/vacuum stand, centering aid, portable water tank, water collection ring kit, Unicore Diamond Core Bits and Hydraulic Power Unit. *For drilling over 3" dia. drill must be mounted to anchor or vacuum stand. |
