Spitznas | SKU:
2 1327 0010 SV

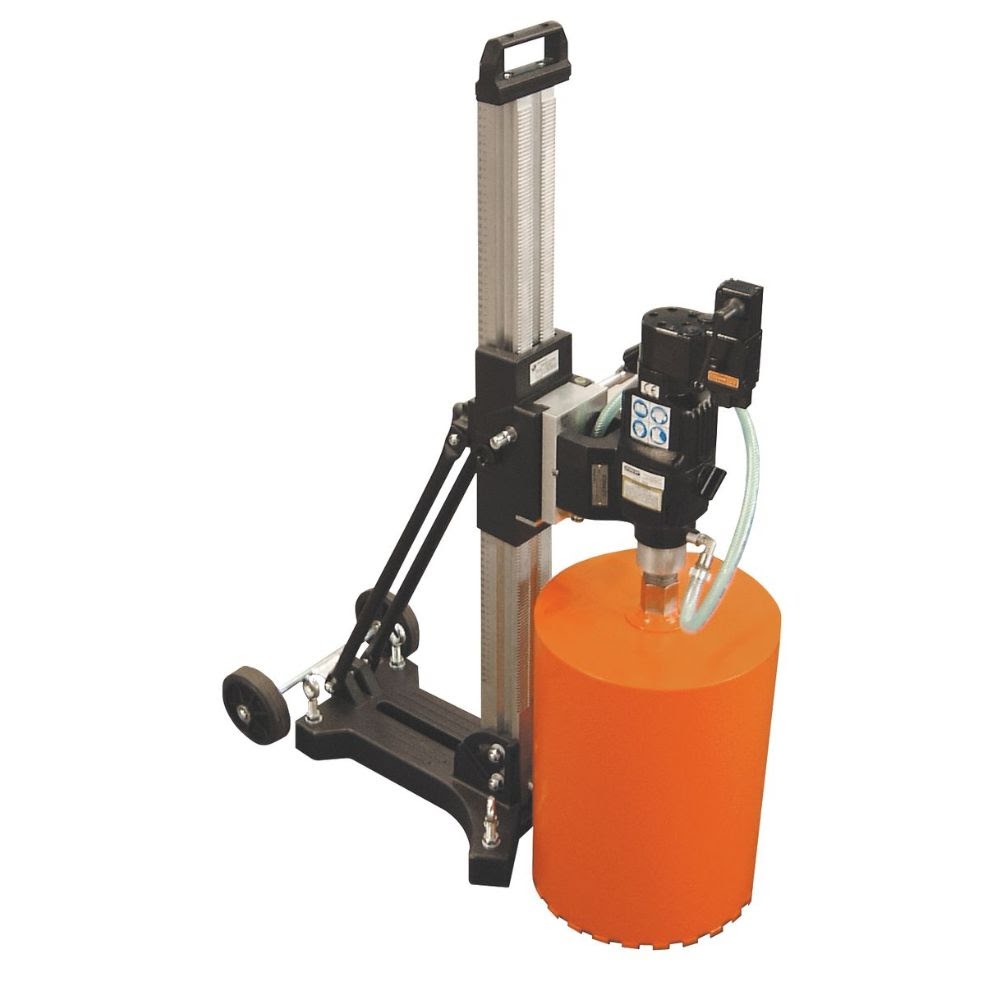

Spitznas CS Unitec 2 1327 0010 SV Wet Hydraulic Core Drill |12" Capacity | 3-Speed | w/ Anchor/Vacuum Stand Kit w/ Vacuum Pump
Free Shipping
$7,021.80
Unit price
/
Unavailable
Description
Description
CS Unitec 2 1327 0010 SV Includes
- (1) 2 1327 0010 Core Drill Motor
- (1) Anchor/Vacuum Stand with Motor Mount
- (1) Vacuum Pump 253 511
CS Unitec 2 1327 0010 SV Features
- Powerful 3-speed hydraulic core drill rig with anchor/vacuum stand and vacuum pump. Drill and Stand can be easily mounted independently.
- 12" diameter hole capacity in reinforced concrete & more.
- Increased Safety: ATEX certified drill motor for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces.
- 4.2 HP Hydraulic motor provides excellent power to weight ratio, continuous run time and long life.
- 3 speed gear box (390/900/1800 rpm free speed) for increased bit life and cut quality.
- For professional drilling contractors and underwater applications
- Mechanical slip clutch design
- Self-regulating oil flow control, ideal for heavy-duty core drilling
- Machine integrated water supply for easy use.
- Ideal for heavy-duty wet drilling in concrete, reinforced concrete, and asphalt
CS Unitec 2 1327 0010 SV Specifications
| Motor | 4.2 HP, 6 GPM @ 2000 PSI |
| Max. Drilling Diameter | 12" |
| Load Speed | 380/900/1800 RPM |
| Drill Machine (2 1317 0010) ATEX Certification | II 2G Ex h IIB T5 Gb |
| Weight | 82 lbs |
| Power Type | Hydraulic |
| Spindle Connection(s) | 1-1/4" x 7 UNC Optional |
| Hose & Fittings | 1/2" ID Hose with 3/8" FF (HTMA) Couplings |
| Handheld or Rig Mounted | Handheld & Anchor/Vacuum Stand (Vacuum Pump Included) |
| Stand | BST 300 V Anchor/ Vacuum Stand & Vacuum Pump IncludedThis CS Unitec Spitznas powerful hydraulic wet diamond core drill is designed for fast, accurate drilling in concrete, reinforced concrete and other masonry materials. For driiling in reinforced concrete up to 12" diameter. This Sealed 3-speed gearbox with permanent oil bath lubrication. The hydraulic motor is ATEX certifed for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces offer increased safety. The motor operates at 2000 PSI oil pressure with required flow is 6 GPM. The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8" x 11 UNC and 1-1/4" x 7 UNC and G 1/2" connecting threads are standard. 1/2" hose diameter with 3/8" FF (HTMA) couplings. |
