Spitznas | SKU:
2 1333 0010 SV

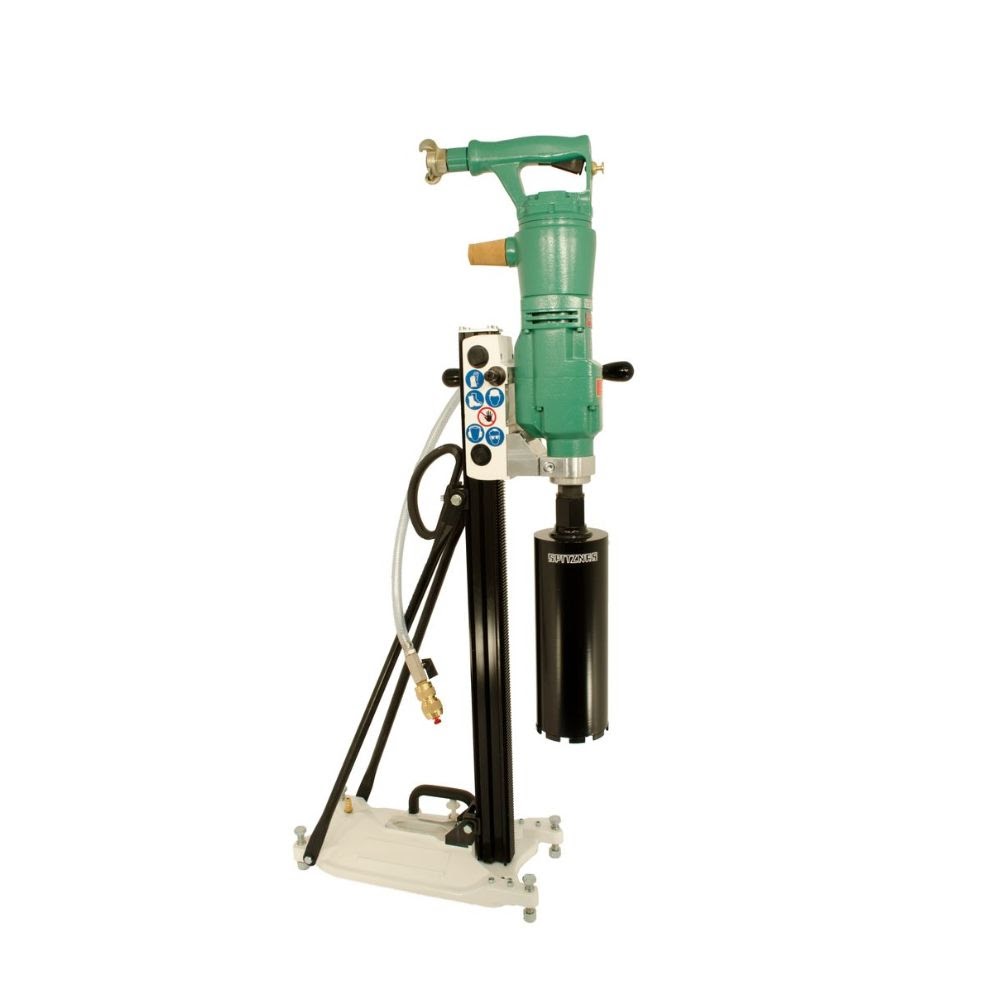

Spitznas CS Unitec 2 1333 0010 SV Wet Air Handheld Core Drilll |6" Capacity | 3-Speed | w/ Anchor/Vacuum Stand Kit w/ Vacuum Pump | ATEX/EX Zone Certified Motor
Free Shipping
$5,164.13
Unit price
/
Unavailable
Description
Description
CS Unitec 2 1333 0010 SV Includes
- (1) 2 1333 0010 Core Drill
- (1) Anchor/Vacuum Stand with Motor Mount
- (1) Vacuum Pump
CS Unitec 2 1333 0010 SV Features
- Powerful 3-speed air handheld core drill with anchor/vacuum stand/rig and air powered vacuum pump. Drill and Stand can be easily mounted independently.
- 6" diameter hole capacity in reinforced concrete & more.*
- Increased Safety: ATEX certified drill motor for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces.
- 2.1 HP Air motor provides excellent power to weight ratio, continuous run time and long life.
- 3 speed gear box (400/900/1600 rpm load speed) for increased bit life and cut quality.
- For professional drilling contractors
- Mechanical slip clutch design
- Machine integrated water supply for easy use.
- Ideal for heavy-duty wet drilling in concrete, reinforced concrete, and asphalt
- Air powered vacuum pump. Stand easily adjustable up to 45?
CS Unitec 2 1333 0010 SV Specifications
| Motor | 2.1 HP, 77CFM @ 90 PSI |
| Max. Drilling Diameter | 6"* |
| Load Speed | 400/900/1600 RPM |
| Drill Machine (2 1333 0010) ATEX Certification | II 2G Ex h IIB T5 Gb |
| Weight | 51 lbs |
| Power Type | Air |
| Spindle Connection(s) | 1-1/4" x 7 UNC, 5/8" x 11 UNC G 1/2" Female |
| Air Connection | 3/4" NPT |
| Air Consumption | 77 CFM @ 90 PSI |
| Handheld or Rig Mounted | Handheld & Anchor/Vacuum Stand (Vacuum Pump Included) |
| Stand | BST 162 V Anchor/ Vacuum Stand & Air Powered Vacuum Pump IncludedThe CS Unitec Spitznas 2 1333 0010 SV air diamond core drill with anchor/vacuum stand and air powered vacuum pump comes with a powerful 3-speed motor and can drill holes up to 6" in diameter. The air motor is ATEX certifed for use in EX Zones/Hot work and related areas offering increased safety. It is ideal for drilling refractory brick, concrete, and reinforced concrete. The mechanical slip clutch design maximizes user comfort. *For drilling over 3" dia. drill must be mounted to anchor or vacuum stand. |
