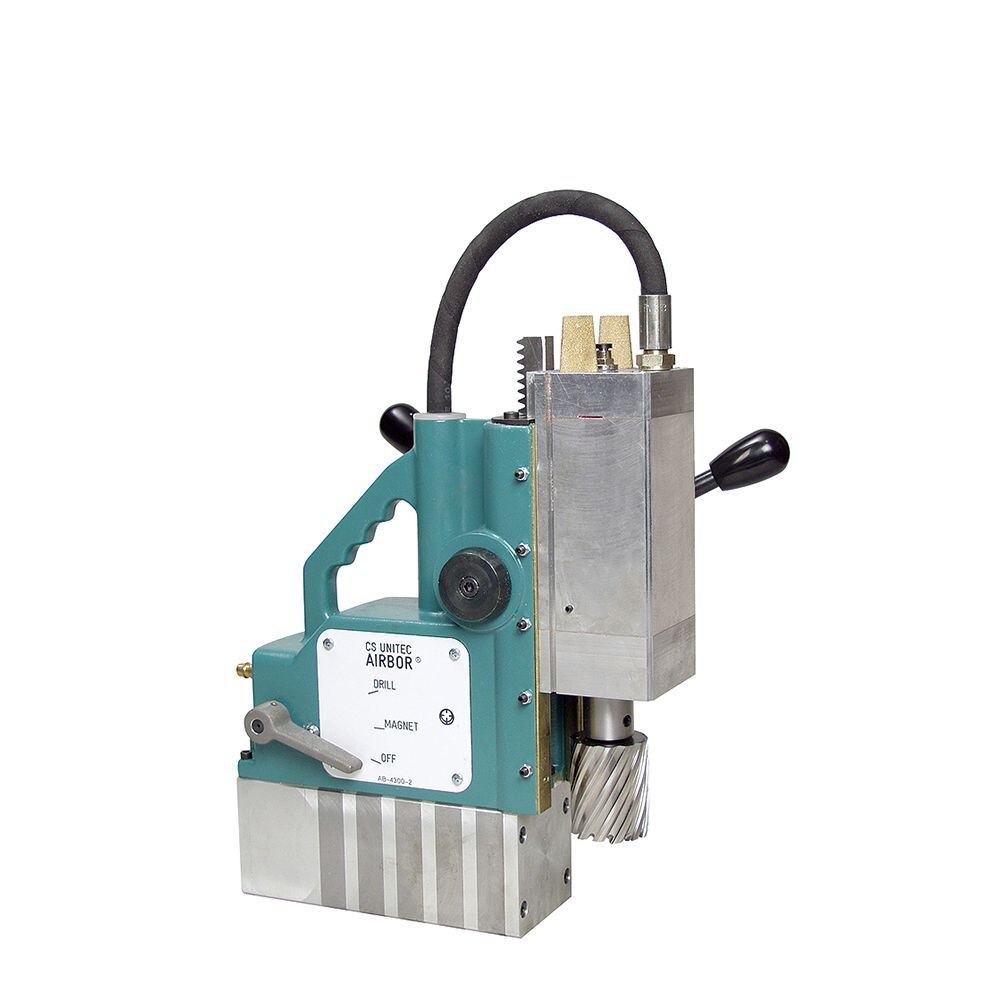

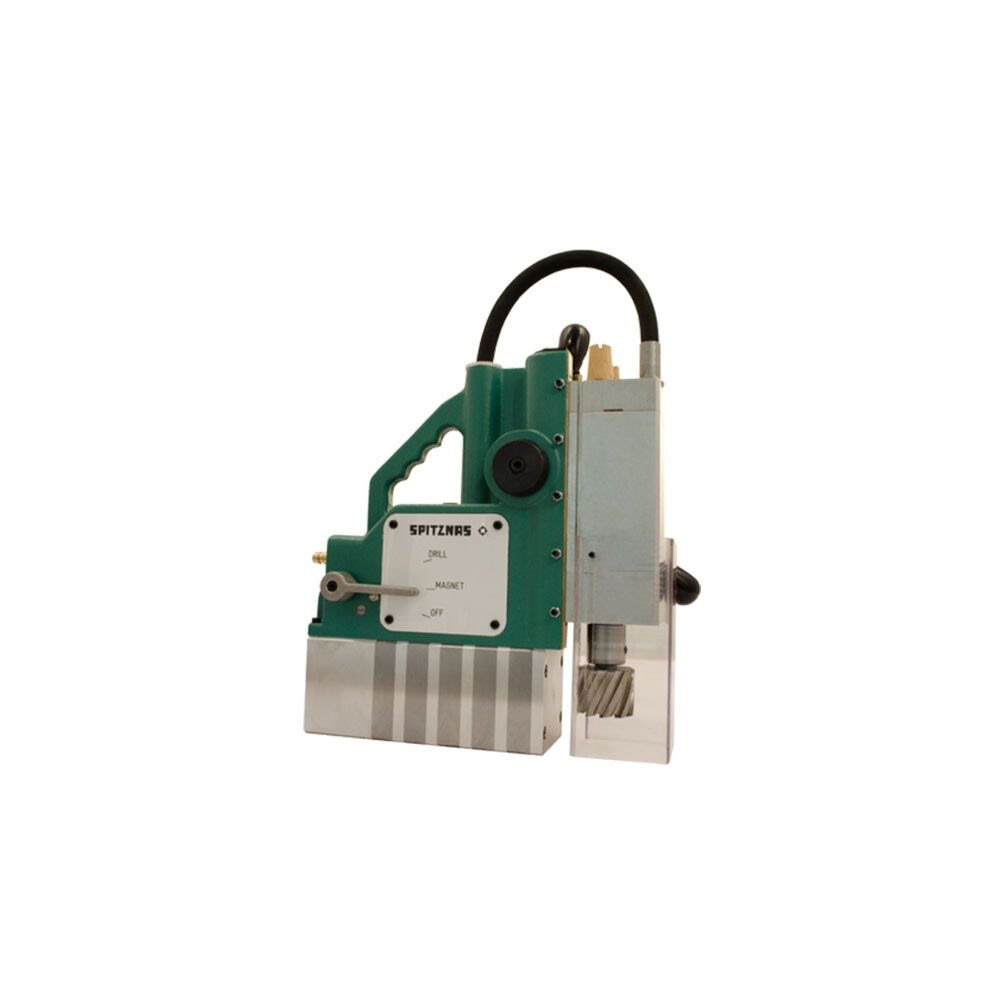

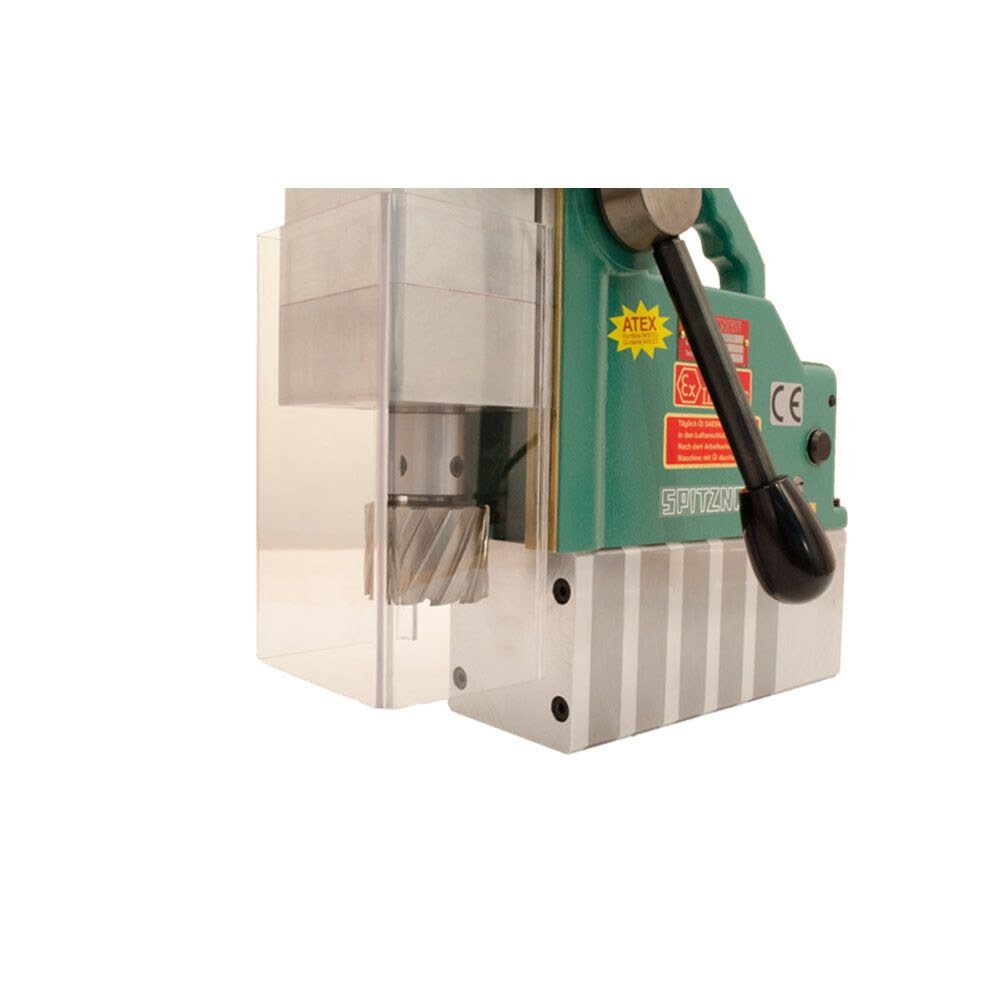

CS Unitec AB-4300-2 Airbor Air Magnetic Drill | 2-1/16" | ATEX EX Zone Certified | Also for Underwater Use
Description
Description
CS Unitec AB-4300-2 Description
The AIRBOR™ AB-4300-2 Magnetic Drill from CS Unitec answers the safety concerns associated with the need for drilling in hazardous environments. The motor and magnet of this Magnetic Drill are powered completely by compressed air – no electricity needed – allowing it to be used in EX zones and around water without fear of shock or blown circuitry. The Fail-Safe permanent magnet turns on and off by air pressure. In the event of a loss of air flow, the magnet will not disengage. This model is ATEX EX certified for use in hazardous environments (EX II 2 GcT6), making it ideal for use in oil and gas refineries, sugar refineries, grain silos, offshore oil, marine, and other process industries. AIRBOR™ easily drills up to 2-1/16” diameter holes with annular cutters through steel plate. It has a 4-7/8” stroke (For up to 10-1/4" stroke model AB-4300-2R is available), and can also be converted to a standard drill press with a geared chuck adapter (Part No. IBC-18). With solid twist drills, it is capable of drilling holes up to 5/8" diameter in structural steel and other applications. More durable than comparable electric-powered drills, the AIRBOR™ AB-4300-2 is designed and built for heavy industrial use. It is lightweight, yet has a powerful 1.6 HP air motor and its Fail-Safe magnet has a holding strength of 1,600 pounds.

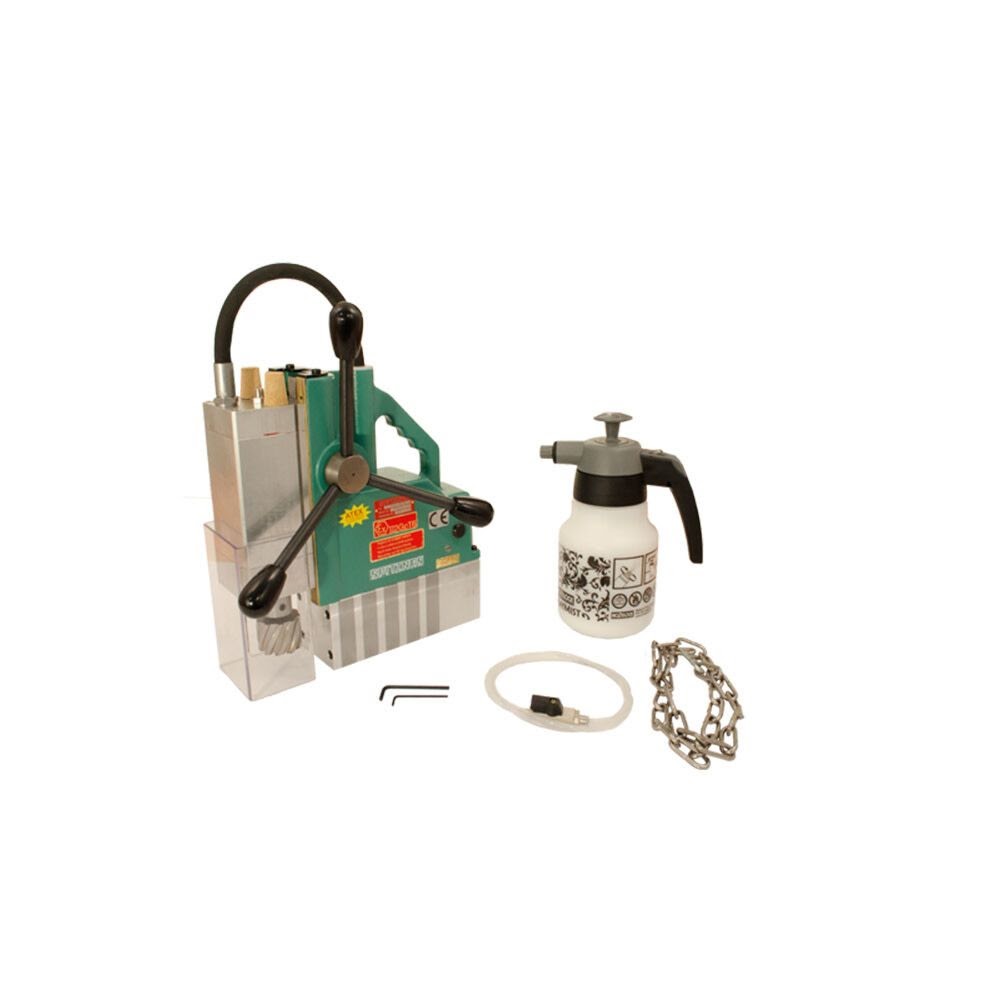

CS Unitec AB-4300-2 Includes
- (1) AB-4300-2
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication
CS Unitec AB-4300-2 Features
- Industry’s first completely air-operated magnetic drill – NO ELECTRICITY!
- 2-1/16" diameter hole cutting capacity
- ATEX, EX Zone Certified for use in hazardous environments
- Inherently safer than electromagnetic drills in hazardous atmospheres and wet environments where electricity requires "hot work permits"
- Pressurized coolant system lubricates cutter and reduces risk of sparking

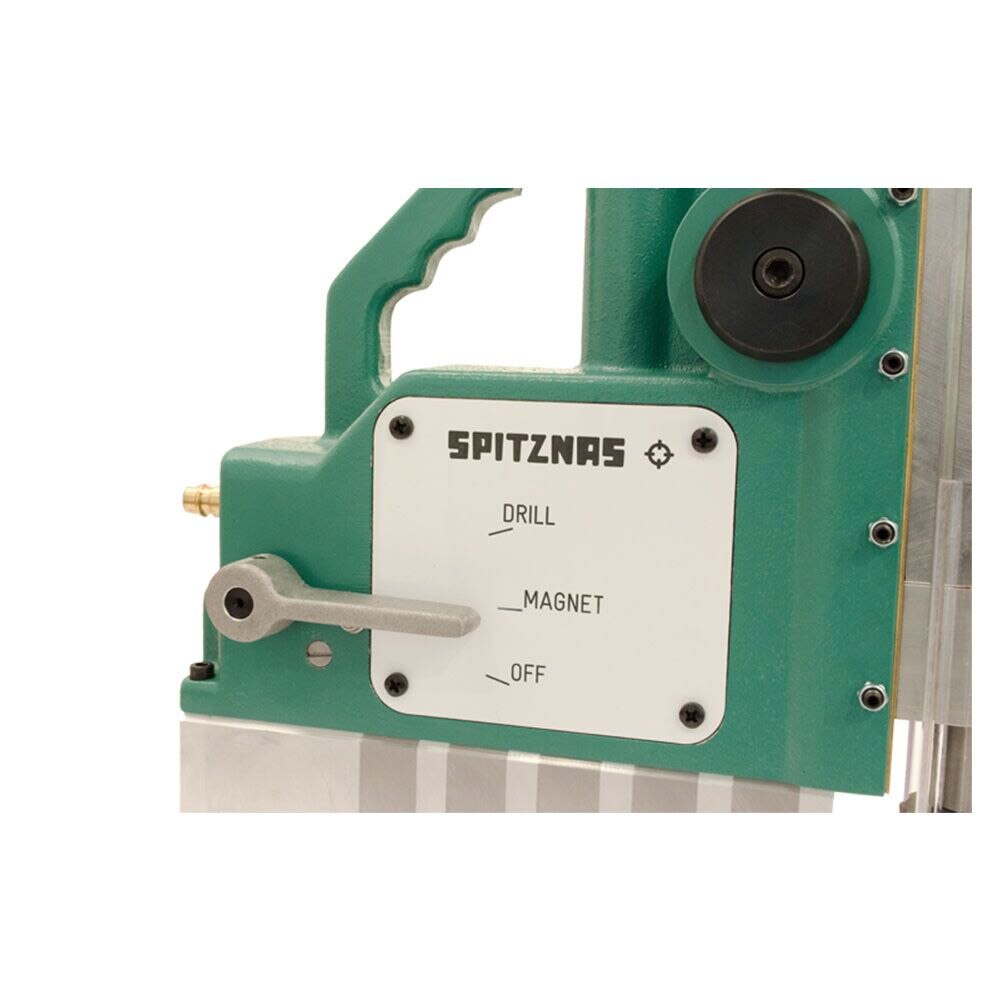

- Fail-safe permanent magnet is activated "on" and "off" by air pressure; in the event of a loss of air flow, the magnet will not disengage
- Stroke 4-7/8", for longer 10-1/4" stroke order model AB-4300-2
- Made in Germany
CS Unitec AB-4300-2 Specifications
| Max Annular Cutter Diameter | 2-1/16" |
| Max Twist Drill Diameter | 5/8" |
| Speed | 400 RPM |
| Motor | Air, 64 CFM @ 90 PSI |

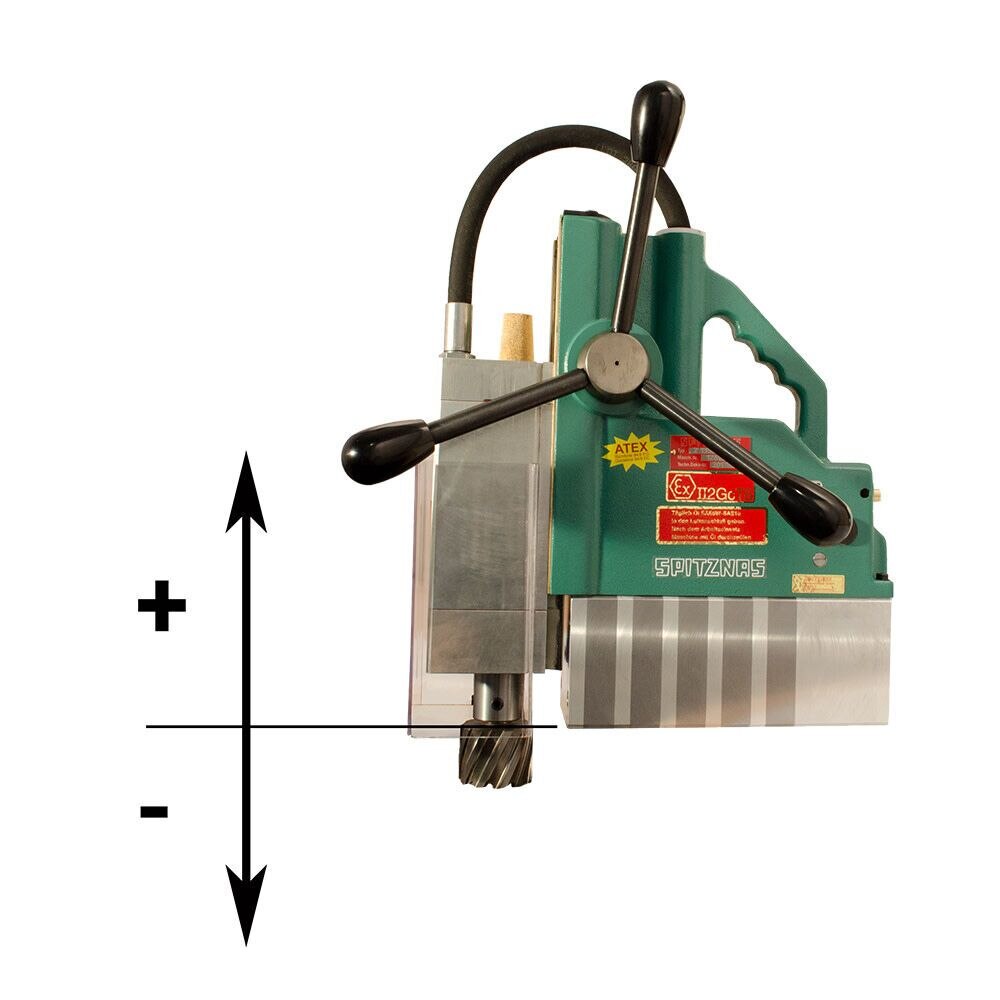

| Stroke | 4-7/8" |
| ATEX EX Zone Certification | II2GExhIIBT6Gb |
| Special Feature(s) | ATEX Certified for EX Zones, Underwater Model, Air Powered, Fail-safe permanent magnet activated by air pressure, will not disengage |
| Dimensions | 13-1/2" H x 12-1/2" L x 4-3/4" W |
| Magnetic Base Dimensions | 8-3/4" L x 3-1/2" W |
| Magnetic Force (1" Thick Plate) | 1600 lbs |
| Automatic Lubrication | Pressurized Coolant Bottle Available (9 4002 0020) |
