CS Unitec AutoMAB 350 Description
The AutoMAB 350 features an automatic feed and shutoff mechanism. A game changer in magnetic drilling, this magnetic drill will drill the hole for you, extend annular cutter life and keep the motor cool for continuos operation. Get more holes drilled per hour, more holes drilled per annular cutter and save time! Ideal for steel fabricators, contractors and plant maintenance professionals, the AutoMAB 350 drills holes up to 1-1/2” diameter with annular cutters in structural steel and other metals. Drilling depth is 2-3/8” maximum with a pilot pin and 4-3/8” without a pilot pin. An integrated automatic cooling/lubrication system increases the life of the annular cutters by reducing friction and wear. Designed for continuous use, the drill operates at 450 RPM. Its power feed controls drill pressure to maintain optimal RPM and feed rate. Additional features Include: Manual drilling mode by easily pulling handles away from the drill body. The AutoMAB 350 is equipped with the SAFEMAG™ System which determines whether the magnet has sufficient adhesive force on the material and alerts the user with LED indicators – green for go, red for stop. The Electronic Safety Shutoff Sensor automatically shuts down the drill motor if the magnet loses contact with the material. Additional safety features include simple arrangement of controls for one-handed operation and LED load indicators.
CS Unitec AutoMAB 350 Includes
- (1) AutoMAB 350
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication, Affixed
CS Unitec AutoMAB 350 Features
- Automatic feed with auto stop and retraction, a game changer in magnetic drilling, this magnetic drill will cut the hole for you!
- Maintain optimal feed rate/ pressure for longer cutter life: More holes drilled per annular cutter and save time!
- 1-1/2" diameter hole cutting capacity
- Excellent Power To Weight Ratio, Only 33 lbs
- Ideal for production: one user can operate multiple drills
- COOlMAG™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Made in Germany
CS Unitec AutoMAB 350 Specifications
| Max Annular Cutter Diameter | 1-1/2" |
| Max Twist Drill Diameter | 1/2" |
| Motor | 10.5 Amp / 110 Volt |
| Stroke | 6" |
| Speed | 460 RPM |
| Weight | 33 lbs |
| Tool Holder(s) | 3/4" Weldon Chuck |
| Special Feature(s) | Automatic Feed, Safemag Electronic Safety Shutoff, Automatic Lubrication |

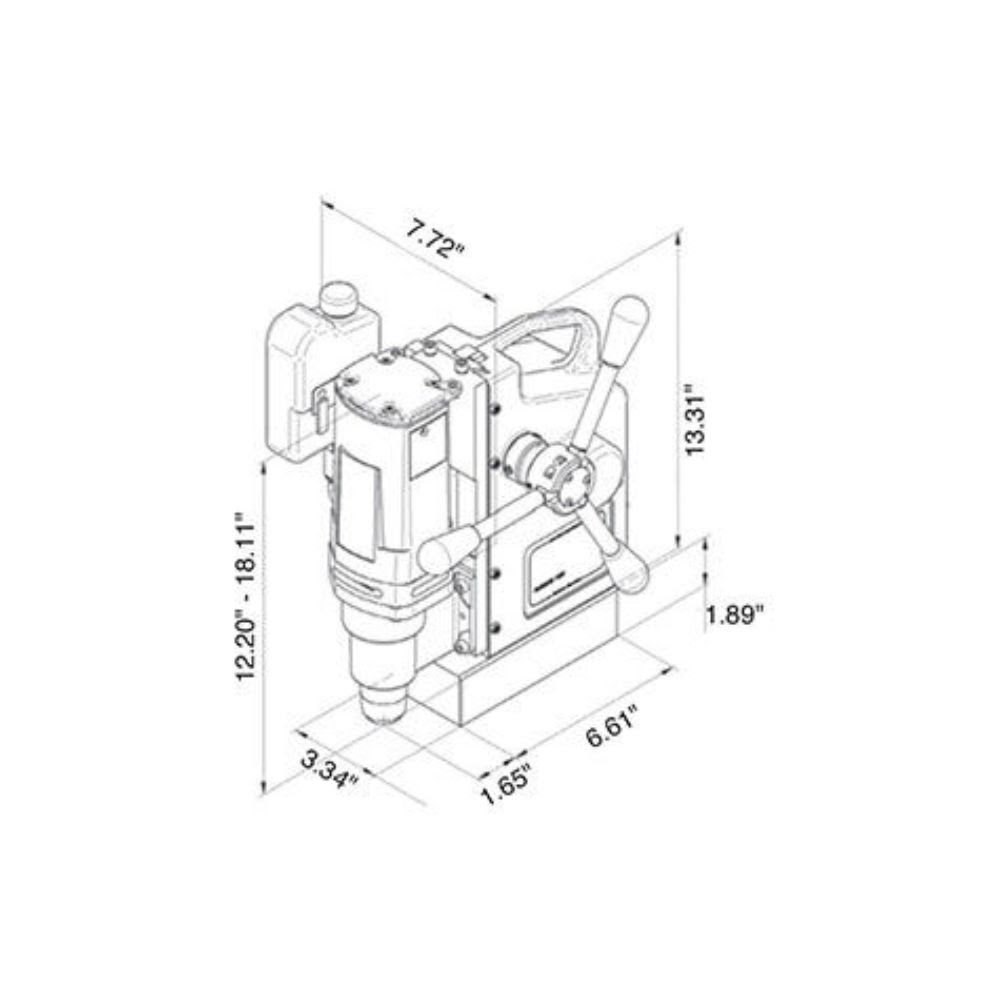

| Dimensions | 12-1/4" H x 8-3/4" L x 7-3/4" W |
| Magnetic Base Dimensions | 6-5/8" L x 3-1/3" W |
| Magnetic Force (1" Thick Plate) | 3750 lbs |
| Automatic Lubrication | Oil Bottle Included |
