CS Unitec  |  SKU: BST 162 H

CS Unitec BST 162 H Anchor Stand for Dry Core Drill ESD 162 | Made in Germany

Free Shipping
$1,371.99 $1,399.99

Description

CS Unitec BST 162 H Description

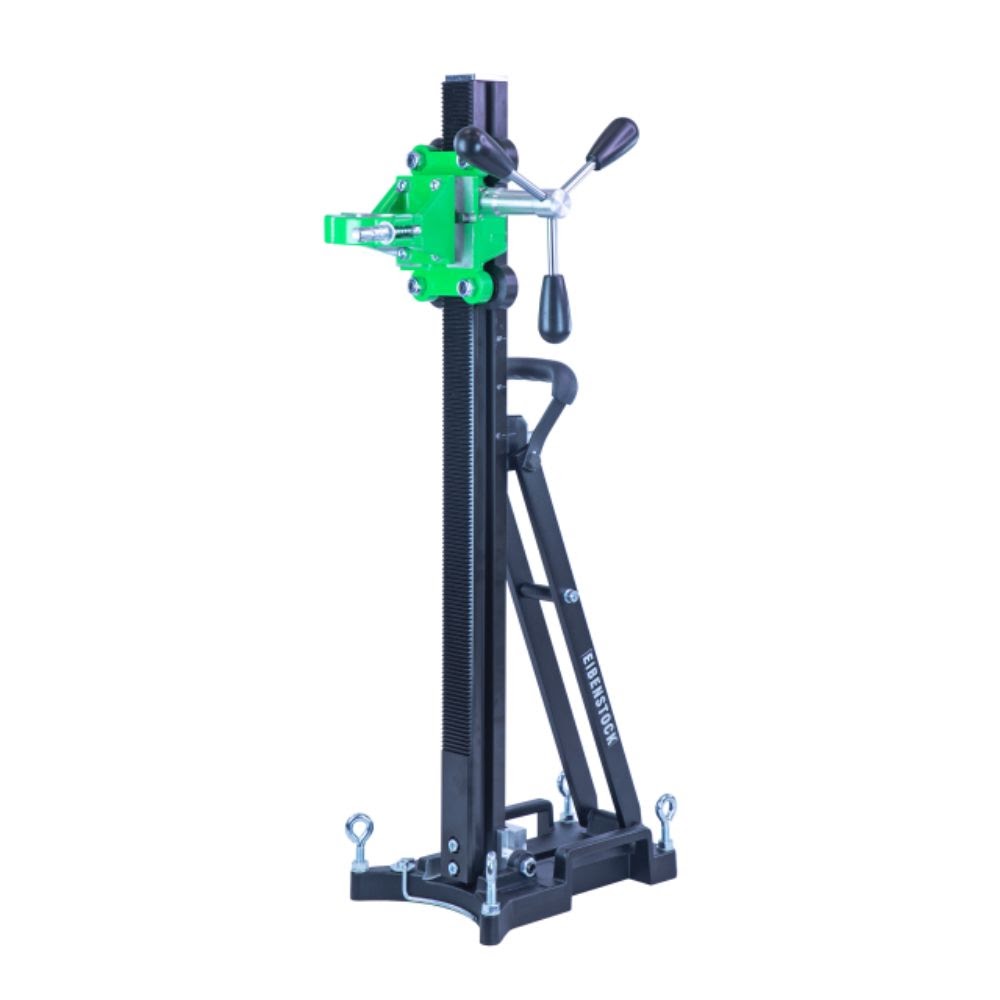

Specially designed for the CS Unitec Eibenstock IHT Soft Impact Dry Core Drill (ESD 162), the BST 162 H is engineerd for durability and lightweight. This anchor core drill stand includes extra bracing to stand up to the force of impact core drills. The BST 162 H is highly versatile with many great benefits: A large 8" diameter core drill bit capacity, fast mounting and breakdown with quick collar mounting system, accurate and consistent drilling with hole centering indicator, bubble levels adjustable feet, rugged 4 point roller system, and continuous feed gearing, portable and compact with lightweight column andspace saving base, and flexibility with angle drilling adjustment up to 45°, and tool free feed lever handle mounting on either side.

CS Unitec BST 162 H Includes

  • (1) BST 162 H Core Drill Stand
  • (1) Handle

CS Unitec BST 162 H Features

  • Durable and rugged design for use with ESD 162 soft impact dry core drill
  • Quick collar mounting connection with locking handle allowing for fast, easy mounting of core drills
  • Durable, continuous and precisely machines column gearing for longevity and hole cutting accuracy
  • Lightweight, aluminum column with 4 braces for high torsional strength. Only 23 lbs!
  • 8" Diameter Diamond Core Drill Bit Capacity
  • Small footprint anchor base allows strong mounting even in tight spaces
  • 8" Diameter Diamond Core Drill Bit Capacity
  • Reduced fatigue; Core drill can easily be mounted and transported separately from the rig
  • Adjustable leveling feet, built in hole alignment bubble levels for precise hole cutting
  • Strong 4 point sliding guides/ bearings for accurate hole drilling
  • Feed lever can be mounted on either side. Tool free changeover.
  • Dry diamond concrete core drill stand bit anchor ESD 162

CS Unitec BST 162 H Specifications

Max. Drilling diameter at 90° 8"
Surface Mounting Type Anchor
Column Length 33.8"
Height 38"
Base Dimensions 12.5" L x 8.66" W
Adjustable Column Yes, Up to 45° Angle
Column Material Aluminum
Core Drill Mounting Ø 60mm Collar, Quick Lever Mount
For use with ESD 162 Soft Impact Dry Core Drill
Weight 23 lbs.
