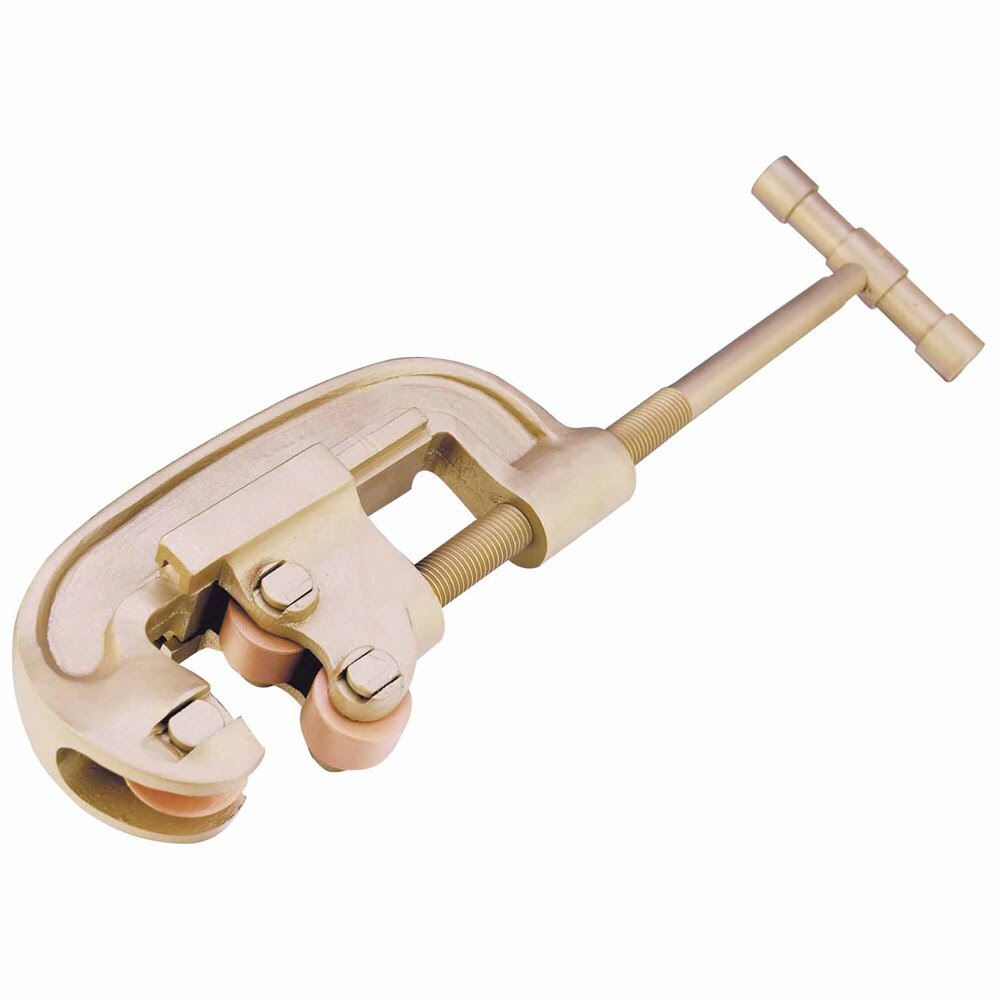

CS Unitec Ex1512-60A Aluminum Bronze Non-Sparking, Low-Magnetism, Corrosion Resistant 2-3/8" Pipe Cutters
Description
Description
CS Unitec Ex1512-60A Description
CS Unitec's non-sparking, non-magnetic, corrosion-resistant safety hand tools are manufactured from special Aluminum-Bronze (AlBr) or Copper-Beryllium (CuBe2) alloys. All CS Unitec Safety Tools are backed by a lifetime warranty against defects in workmanship. If any CS Unitec safety tool breaks or fails to perform under normal use or service, it will be repaired or replaced at no charge.* CS Unitec safety tools are high quality manufactured in an ISO 9001:2015 environment and are TUV materials certified. They comply with ATEX Directives for Ex Zones 0, 1 and 2 (Flammable Gas, Mists or Vapors); Zones 20, 21 and 22 (Combustible Dusts); and M1 and M2 for mining. All hand tools are drop forged to produce the highest quality and durability. With over 4,000 SKUs offered, CS Unitec safety tools fit a wide range of applications. Non-Sparking applications include: Ex zones where hazardous, flammable or combustible vapors, liquids, dusts or residues may be present. Non-Magnetic applications include: MRI/NMR, nuclear products, electronic manufacturing, and other sensitive equipment. Corrosion resistant applications include: use in desalination plants, chemical/paper manufacturing, and shipyards. *Any misuse, abuse or normal service wear is not covered under this warranty.
CS Unitec Ex1512-60A Includes
- (1) Pipe Cutters Non-Sparking
CS Unitec Ex1512-60A Features
- Non-Sparking, Non-Magnetic & Corrosion-Resistant Tools for Use in Hazardous Environments, ATEX and EX Zones
- Lifetime Warranty, ISO 9001:2015 manufactured, TUV certified
- Non-Sparking alloys are designed to eliminate the risk of sparks at sites where explosive atmospheres (flammable or combustible vapors, liquids, dusts or residues) may be present
- The non-magnetic feature of these hand tools also makes them ideal for working on MRI, FMRI, NMR, clean room environments and special machinery with powerful magnets. Copper Beryllium recommended for safer non-magnetic applications and around sensistive equipment.
- These corrosion-resistant tools are suitable for use in shipyards, laboratories, pharmaceutical, and food product manufacturing.
- Pipe cutter wheels that are nicked or otherwise damaged should be replaced. When removing, rapid spinning of the die threading stock is not recommended as this may damage the tool. Be certain the cutting wheel is suitable to cut type of pipe material. Thin wheel is suitable for cutting ordinary steel pipe, stout wheel is made to cut cast iron. Other wheels are available for stainless steel, plastic and other materials.
- If there is not enough space to swing the single wheel pipe cutter completely around pipe, then a three or four-wheel cutter should be used.
- Not as durable as CuBe
- Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications
CS Unitec Ex1512-60A Specifications

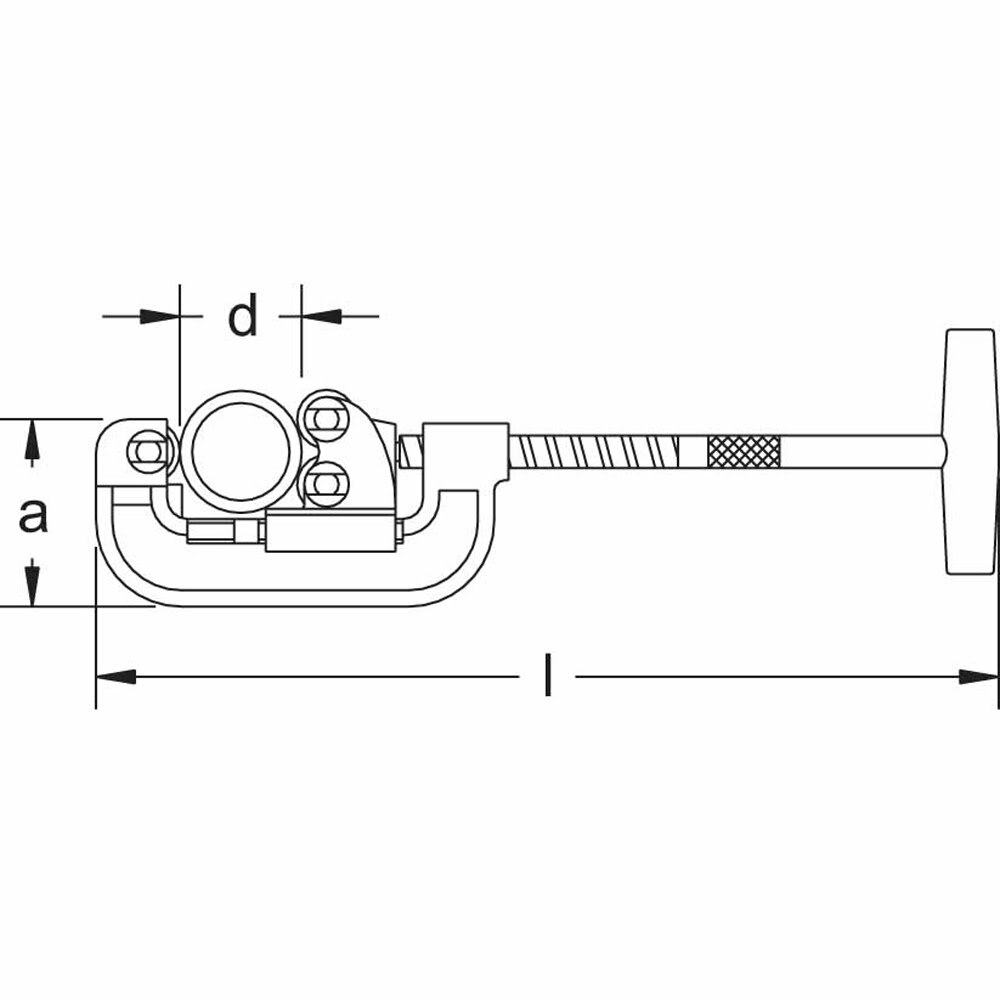

| Dimension D | 2-3/8" (60 mm) MAX |
| Dimension I | 17-3/4" (445 mm) |
| Dimension A | 3-11/16" (92 mm) |
| Alloy | Aluminum-Bronze (AlBr) |
| Zone Compatibility | ATEX Directive 1999/92/EC for work in Zones 0 / 1 / 2 / 20 / 21 / 22 / M1 / M2 |
| Rockwell Hardness | 27 |
| Composition | Al |
| WARNING | This product can expose you to chemicals including Nickel (Ni) that is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weight | 7.21 Lbs (3.27 Kg) |
