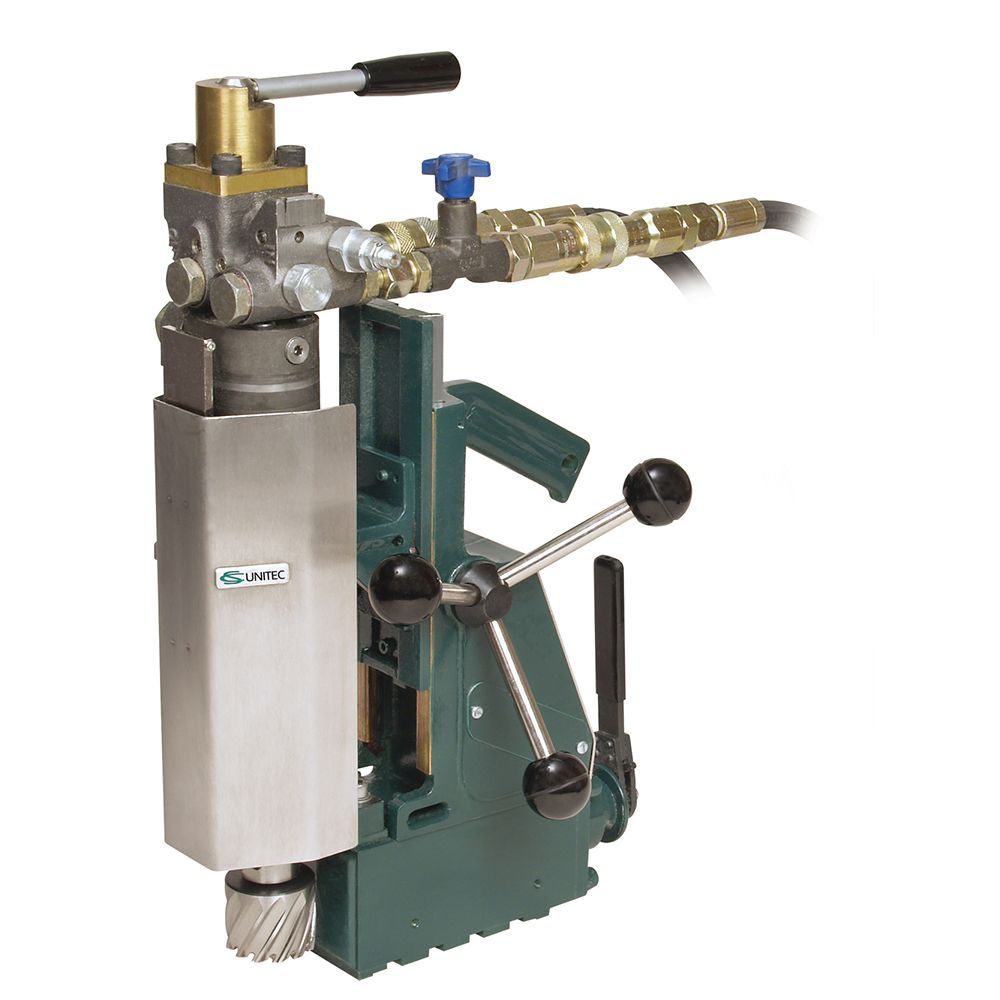

CS Unitec HB 4400 Hydraulic Magnetic Drill |2-1/16" | Also for Underwater Use, Variable Speed
Description
Description
CS Unitec HB 4400 Description
The HB-4400 is a versatile and efficient hydraulic magnetic drill for a wide range of jobs, including underwater applications. With a 1.5 HP motor and oil flow of 6.5 gpm at 2,000 PSI, and variable speed control (0-630 RPM) the HB-4400 efficiently drills holes up to 2-1/16" diameter in structural steel and other metals. The HB-4400 is a useful tool for marine contractors, as well as shipyards, offshore oil companies, municipalities, mining and other industries. The HB-4400 has a permanent “Fail Safe” magnet that is manually operated with a ratchet control. It will continue to maintain a magnetic holding force of up to 1300 lbs., even if the drill motor’s power supply is interrupted. A 3/4” geared chuck easily converts the HB-4400 into a standard drill press for use with solid twist drills up to 1/2” diameter.
CS Unitec HB 4400 Includes
- (1) HB 4400
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Pressurized Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication
CS Unitec HB 4400 Features
- Hydraulic Power for durability and continuous use
- 2-1/16" diameter hole cutting capacity
- Ideal for industrial construction, mining, underwater and marine applications
- Drill structural steel and other metals
- Reversible motor for tapping
- 1.5 HP 6.5 GPM @ 2000 PSI
- Made in the United Kingdom
CS Unitec HB 4400 Specifications
| Max Annular Cutter Diameter | 2-1/16" |
| Max Twist Drill Diameter | 1/2" |
| Motor Power | Hydraulic, 1.5 HP, 6.5 GPM @ 2000 PSI |
| Special Feature(s) | ATEX Certified for EX Zones, Underwater Model, Hydraulic Powered, Large Base, Permanent magnet |
| Weight | 48.5 lbs. |
| Dimensions | 18-1/2"H x 12-1/2" L x 7" W |
| Magnetic Base Dimensions | 7-1/4" L x 3" W |
| Magnetic Force (3/8" Thick Plate) | 1300 lbs |
| Automatic Lubrication | Pressurized Coolant Bottle Available (9 4002 0020) |
