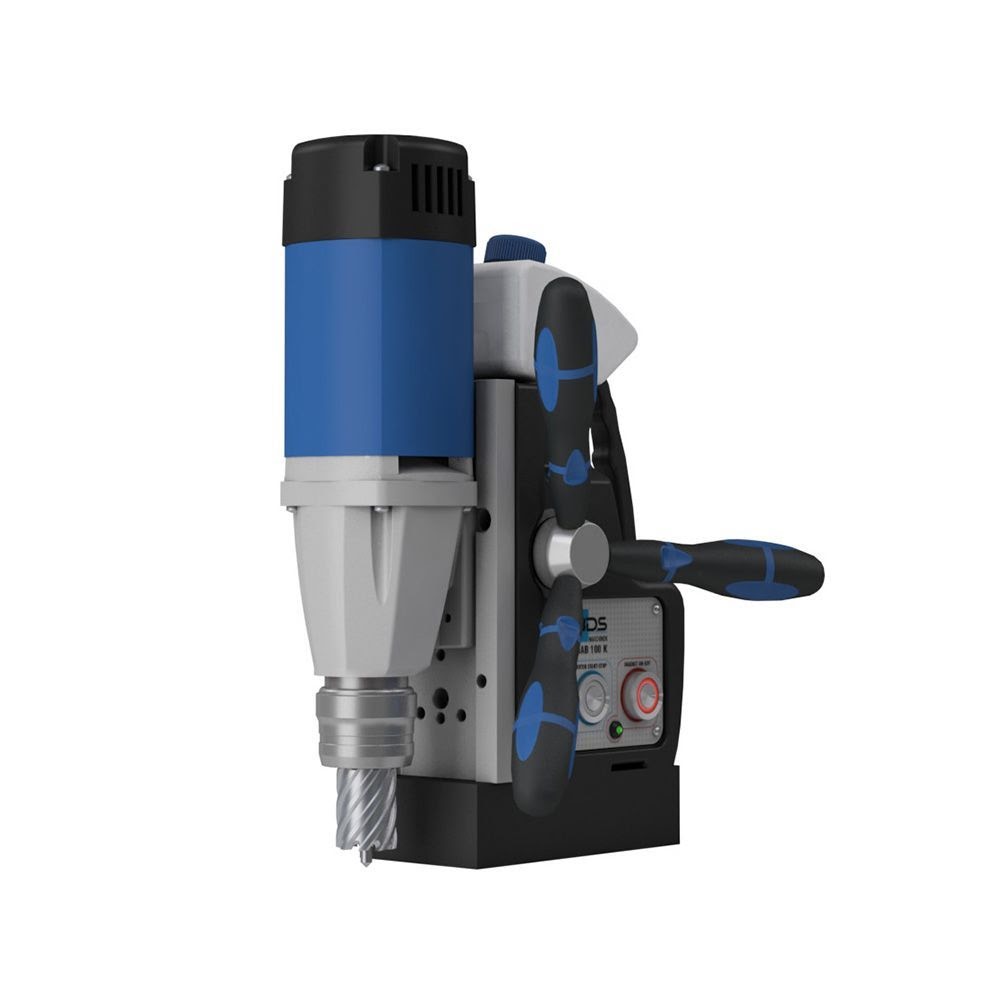

CS Unitec MAB 100 K Ultra Light Weight & Compact Magnetic Drill | 2" Dia. Hole Cutting Capacity
Description
Description
CS Unitec MAB 100 K Description
The MAB 100 K is a streamlined, lightweight magnetic drill that punches above its weight. At only 21.8 lbs., this is one of the lightest magnetic drills on the market. The MAB 100 K makes magnetic drilling on the job site a breeze. Due to its lightweight, users significantly reduce their fatigue from transporting and positioning heavier drills. With a quick-change keyless chuck as standard, the MAB 100 K dramatically reduces the time needed to switch between annular cutters and other cutting tools. Other features include: 1-3/8” Drilling capacity, automatic lubrication, internal cable routing, ergonomic design, and a powerful dual core magnet.
CS Unitec MAB 100 K Includes
- (1) MAB 100 K
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Quick Change Tool Holder w/ internal Lubrication, Affixed
CS Unitec MAB 100 K Features
- Weighing only 21.8 lbs., making it the lightest MAB series magnetic drill available and one of the lightest magnetic drills on the market.
- Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools
- 1-3/8" diameter hole cutting capacity
- Lightweight construction dramatically reduces user fatigue and allows for faster, easier hole alignment.
- Making the tiring task of drilling on verticals and overhead a breeze.
- Integrated cable routing: No threading and getting caught, No tearing or snapping off
- CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Made in Germany
CS Unitec MAB 100 K Specifications
| Max Annular Cutter Diameter | 1-3/8" |
| Max Twist Drill Diameter | 1/2" |
| Motor | 9 Amp / 110 Volt |
| Stroke | 2-3/4" |
| Speed | 460 RPM |
| Weight | 21.8 lbs |
| Tool Holder(s) | 3/4" Weldon Quick- Change Chuck |
| Special Feature(s) | Ultra Light Weight & Compact, Quick Change Tool Holder, Safemag Electronic Safety Shutoff, Integrated Cable Routing |

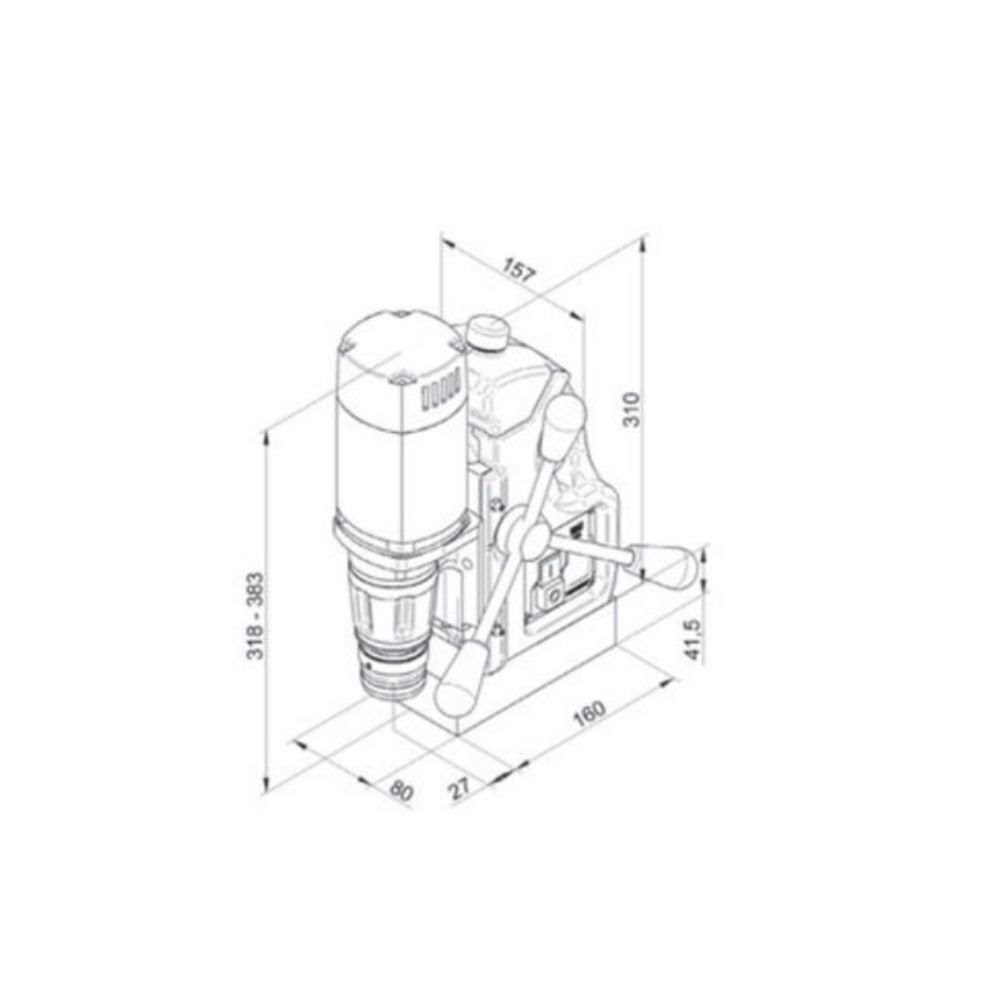

| Dimensions | 12-1/2" H x 7-2/5" L x 6-1/5" W |
| Magnetic Base Dimensions | 6-5/8" L x 3-1/3" W |
| Magnetic Force (1" Thick Plate) | 3080 lbs |
| Automatic Lubrication | Oil Bottle Included |
