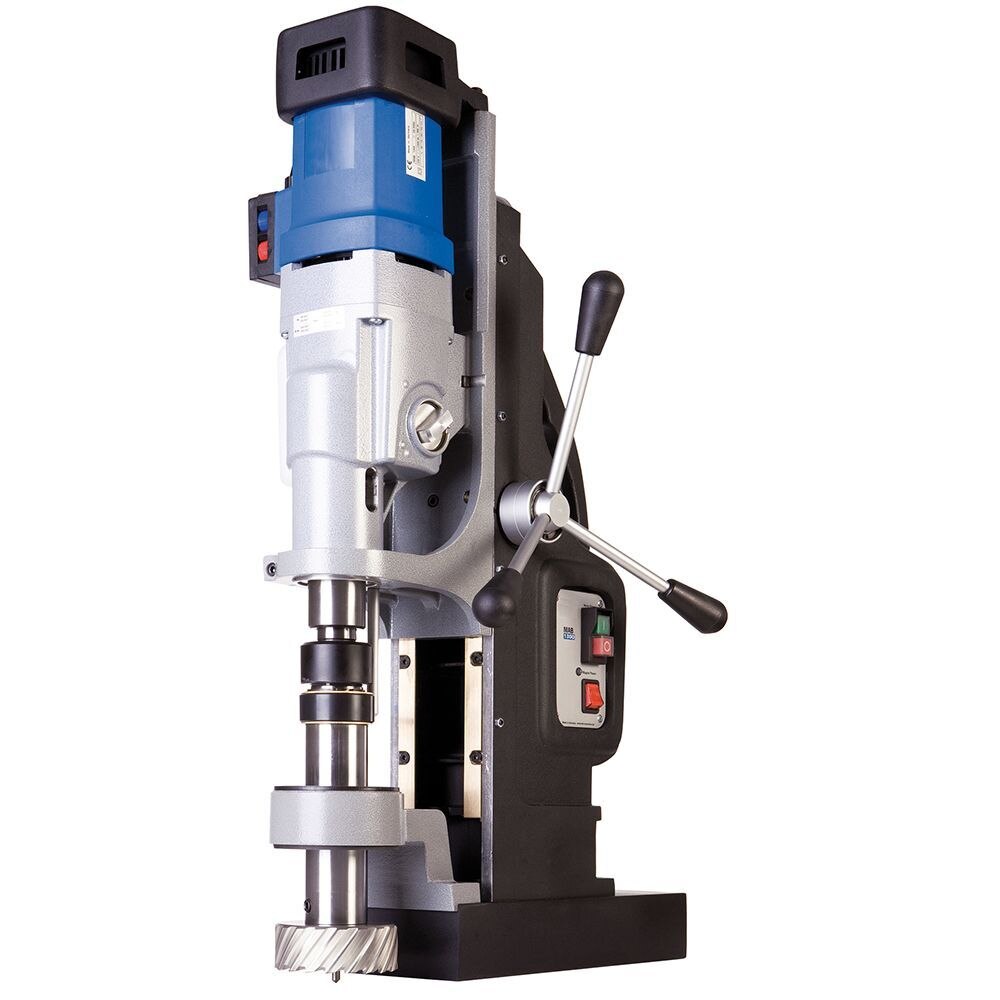

CS Unitec MAB 1300 Description

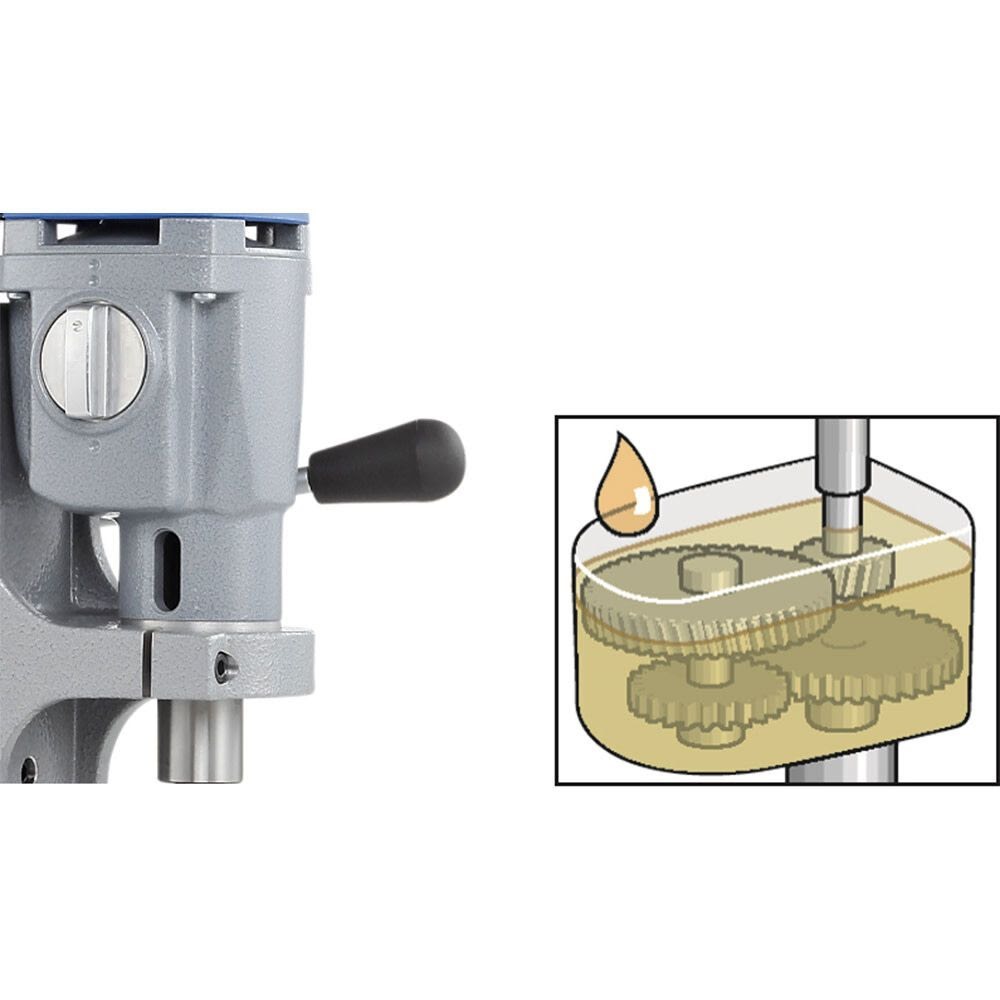

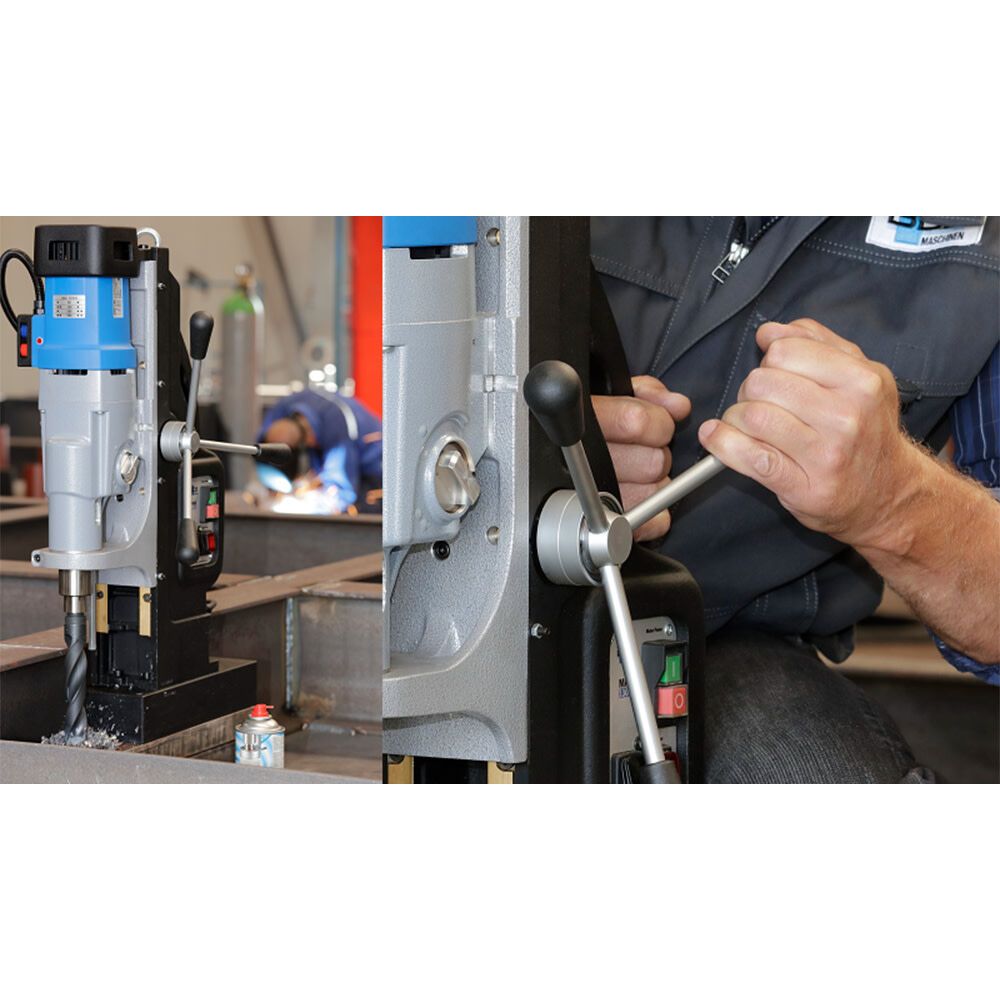

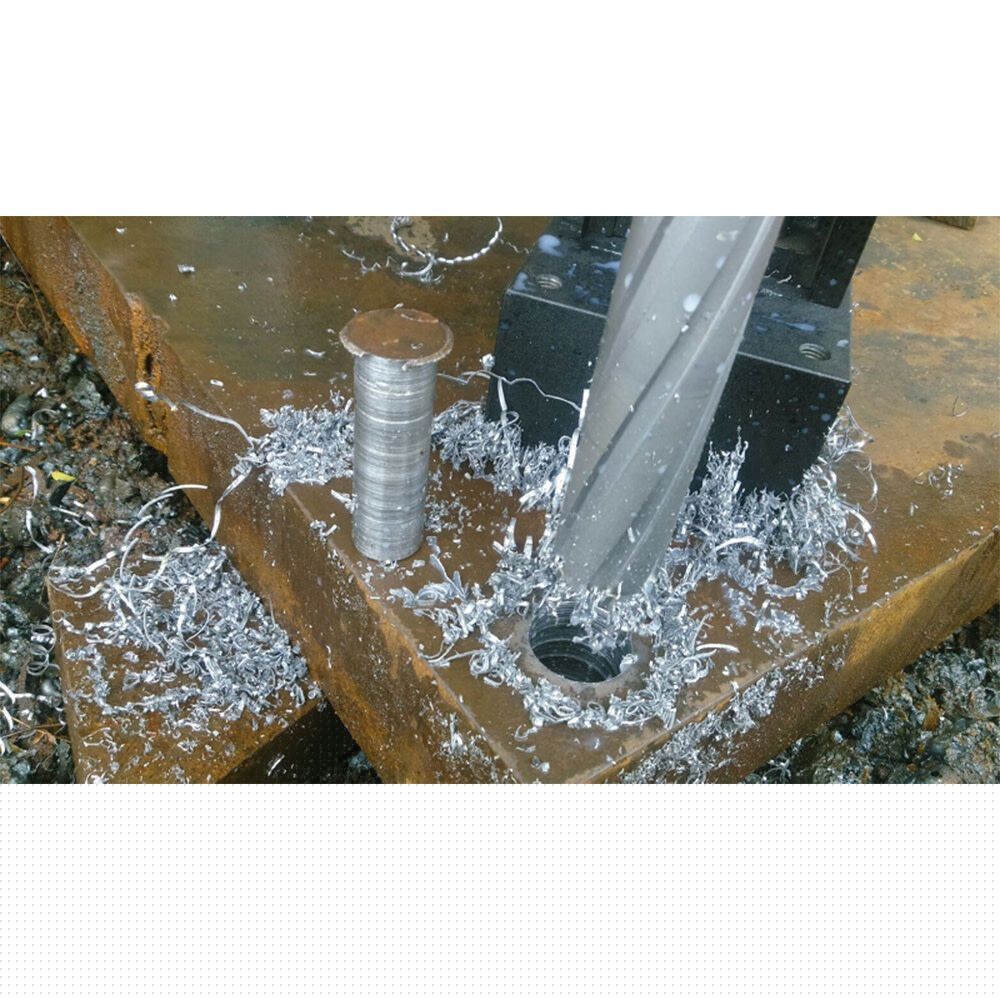

For large capacity drilling in steel the MAB 1300 magnetic drill has the largest hole cutting capacity in the industry – 6” diameter with annular cutters*. The drill’s powerful 20 Amp/110 Volt double-insulated, reversible motor is ideal for drilling structural steel and other metals. Designed for continuous use, the 4-speed oilbath gearbox is suitable for applications requiring high power. With the MAB 1300’s 12” stroke, other capabilities include large-hole tapping up to 1-5/8” diameter; twist drilling up to 1-3/4”, countersinking up to 3” and reaming up to 2”. The MAB 1300 has a 1-1/4” weldon tool holder with an adapter for 3/4” weldon shanks. The high-density, three-coil magnet has a holding strength of up to 23,600 pounds, providing the pulling power required for heavy-duty drilling. The unit includes an integrated automatic cooling/lubrication system to increase the life of the annular cutters by reducing friction and wear. *Annular cutter drilling capacity 6” diameter up to 1” thick in carbon steel - Use TCT cutters for large diameters
CS Unitec MAB 1300 Includes
- (1) MAB 1300
- (1) Carrying Case w/ wheels
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (4) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 1-1/4" Weldon Chuck w/ internal Lubrication, MT4
- (1) Arbor adapter to 3/4" Weldon
CS Unitec MAB 1300 Features
- 6" diameter hole cutting capacity - Largest hole cutting capacity in the industry*

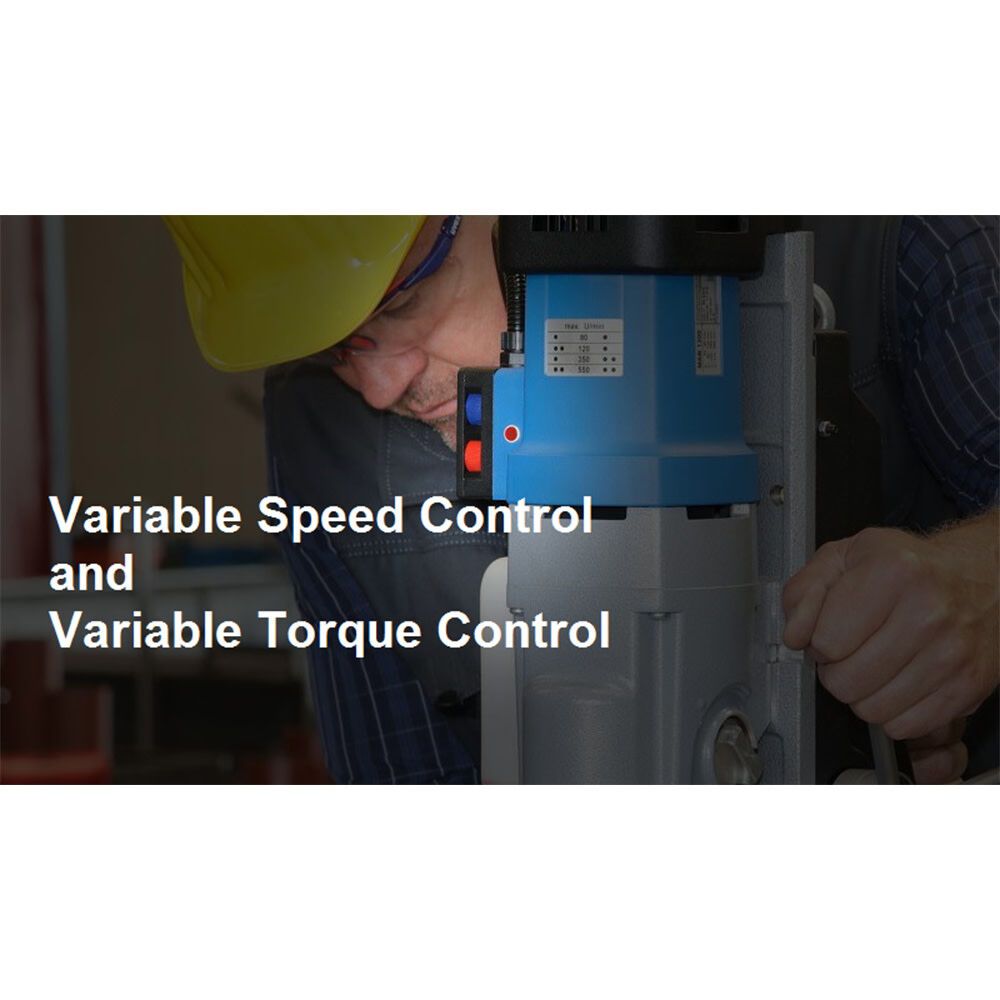

- Professional-grade, variable speed & torque, reversible through 2 gears amazing versatility
- Reversible: Tap up to 1-5/8", Ream, and CounterSink
- CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Automatic internal lubrication
- Morse Taper 4 to Weldon Tool Holder
- Made in Germany
CS Unitec MAB 1300 Specifications
| Max Annular Cutter Diameter | 6"* |
| Max Twist Drill Diameter | 1-3/4" |
| Max Tapping Diameter | 1-5/8" |
| Max Countersinking & Reaming | 3"/ 2" |
| Speed | 30-80/50-120/130-350/210-500 RPM |
| Motor | 20 Amp / 110 Volt |
| Stroke | 12" |
| Weight | 112 lbs |
| Tool Holder(s) | 1-1/4" Weldon Chuck, Adapter to 3/4" Weldon Chuck |
| Special Feature(s) | Large Drilling Capacity, Reversible, Variable Speed, Variable Torque, Quick Change Tool Holder, CoolMag, Safemag Electronic Safety Shutoff |
| Spindle | Morse Taper 4 |
| Dimensions | 27.05" H x 19-1/2" L x 10" W |
| Magnetic Base Dimensions | 14" L x 4-3/4" W |
| Magnetic Force (1" Thick Plate) | 23600 lbs |
| Automatic Lubrication | Oil Bottle Included |
