BDS CS Unitec MAB 455 SB Adjustable Base Magnetic Drill | 2" Dia. Hole Cutting Capacity |2 Speed
Description
Description

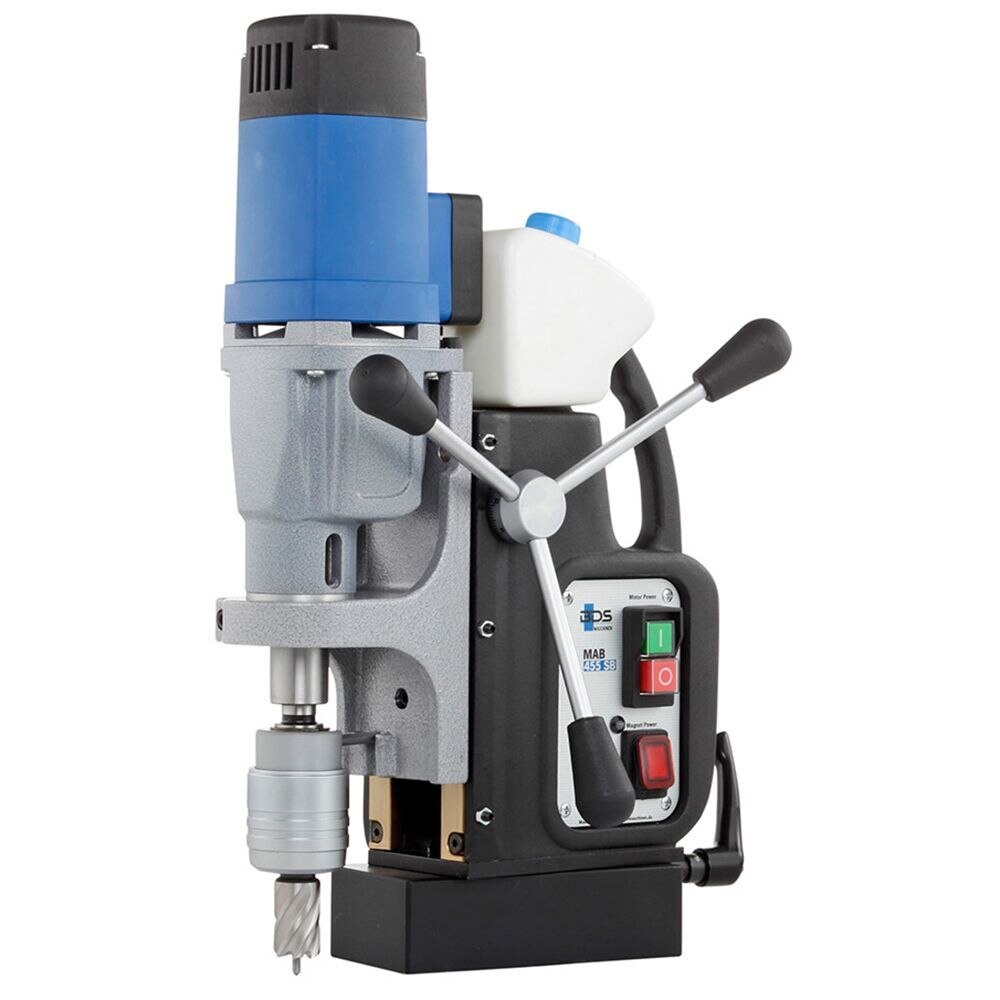

CS Unitec MAB 455 SB Description
The MAB 455 SB magnetic drill features a swivel base that provides 20? movement left and right and 5/8” forward and backward for drilling in hard-to-reach areas. With a stroke length of 6-1/3”, this powerful drill cuts holes up to 2-1/16” dia. in structural steel and other metals. Additional capabilities include twist drilling up to 7/8” diameter when used with a geared chuck. The 10.5 Amp, double-insulated motor has a 2-speed oil bath gearbox (250 / 450 RPM) and integrated automatic lubrication are ideal for annular cutters and twist drills. This unit has a quick-change keyless cutter system for 3/4” Weldon Shanks, saving time and money. An integrated Morse Taper 2 holder allows for fast, easy changeover between a wide range of tool holders. Integrated safety features in the MAB 455 SB include visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. Simple ergonomic arrangement of controls allows for one-handed operation. The magnet has a holding force of 3,750 lbs.
CS Unitec MAB 455 SB Includes
- (1) MAB 455 SB
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Quick-Change Tool Holder w/ internal Lubrication, MT2
- (1) 3/4" Standard Weldon Tool Holder w/ internal Lubrication, MT2
CS Unitec MAB 455 SB Features
- Swivel base for easy, alignment without straining yourself. Magnetize and then adjust.
- 2-1/16" diameter hole cutting capacity
- Excellent Power To Weight Ratio, Only 29 lbs
- Integrated cable routing: No threading and getting caught, No tearing or snapping off
- CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools
- Automatic internal lubrication
- Morse Taper 2 to 3/4" Weldon Tool Holder
- Made in Germany
CS Unitec MAB 455 SB Specifications
| Max Annular Cutter Diameter | 2-1/16" |
| Max Twist Drill Diameter | 7/8" |
| Motor | 10.5 Amp / 110 Volt |
| Stroke | 6-1/3" |
| Speed | 250/450 RPM |
| Weight | 33 lbs |
| Tool Holder(s) | 3/4" Weldon Quick- Change Chuck |
| Spindle | Morse Taper 2 |
| Special Feature(s) | Adjustable Base, Quick Change Tool Holder, Integrated Cable Routing, CoolMag, Safemag Electronic Safety Shutoff, Automatic Lubrication |
| Dimensions | 17-1/4" H x 11-5/8" L x 7" W |
| Magnetic Base Dimensions | 6-5/8" L x 3-1/3" W |
| Magnetic Force (1" Thick Plate) | 3750 lbs |
| Automatic Lubrication | Oil Bottle Included |
