CS Unitec MAB 485 Magnetic Drill | 2-1/16" | Variable Speed, Reversible
Description
Description

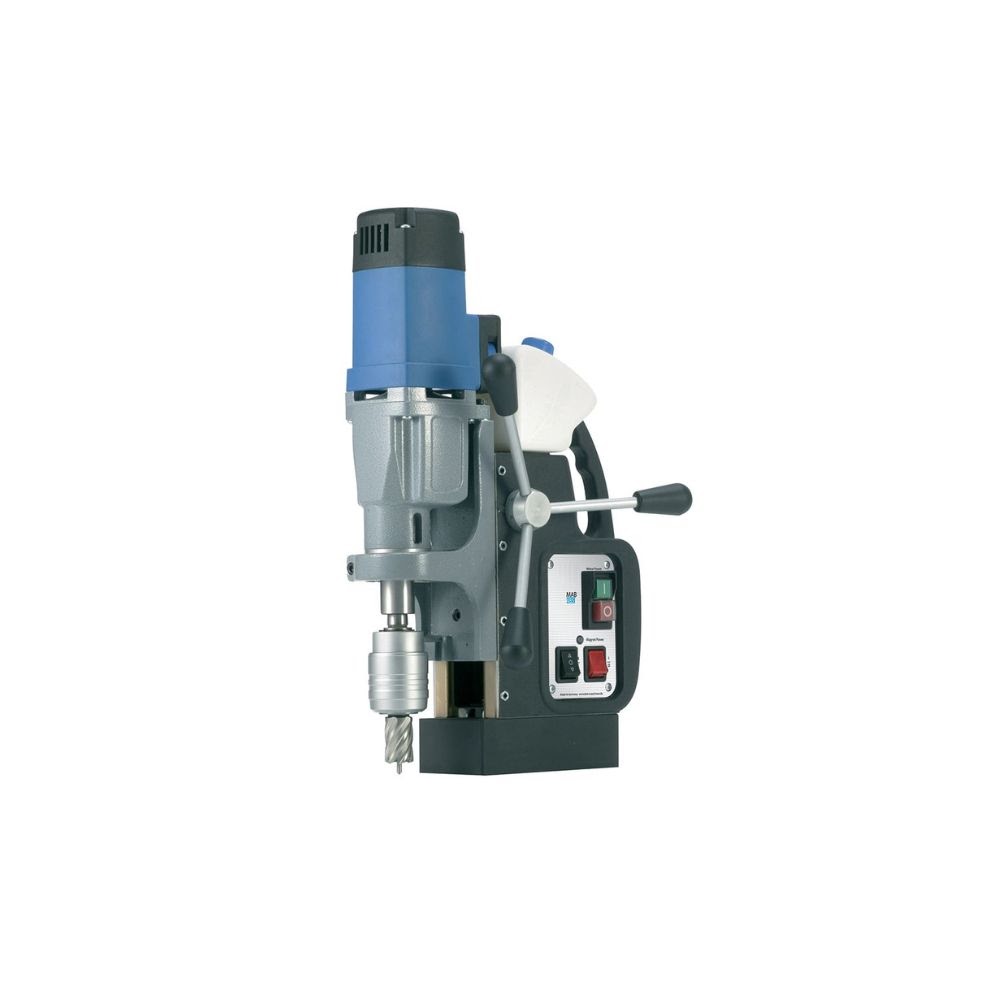

CS Unitec MAB 485 Description
The MAB 485 magnetic drill has a hole cutting capacity up to 2-1/16” dia. in structural steel and other metals. The 10.5 amp, double-insulated, reversible motor has fully variable speed through a 2-gear oil bath gearbox (70-280 and 180-580 RPM) ideal for annular cutters and twist drills. Additional capabilities include twist drilling up to 7/8” dia., tapping up to 15/16” dia., reaming up to 7/8” dia. and countersinking up to 1-5/8”. This unit has a quick-change keyless cutter system for 3/4” Weldon shanks, saving time and money. With a 3/4” drill chuck, the MAB 485 easily converts to a standard drill press. Integrated sensors in the MAB 485 include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 8,000 lbs.
CS Unitec MAB 485 Includes
- (1) MAB 485
- (1) Carrying Case

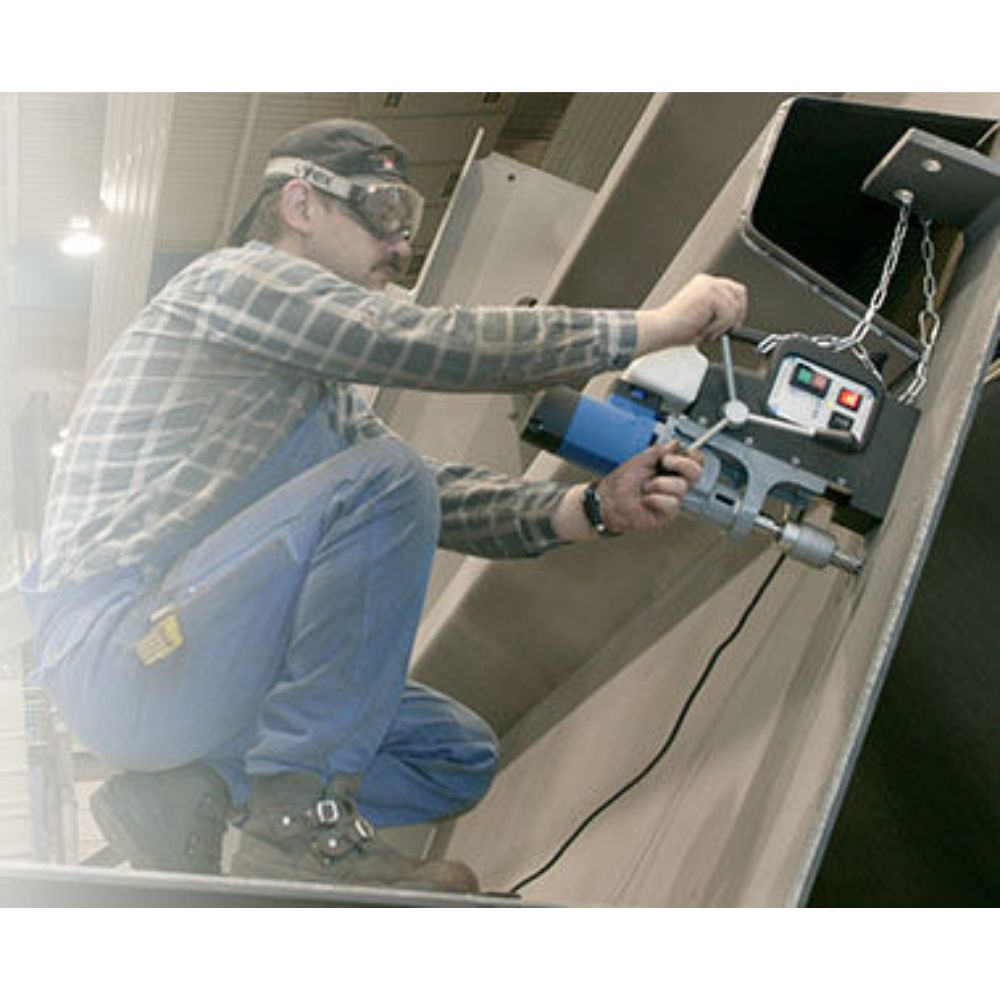

- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Quick-Change Tool Holder w/ internal Lubrication, MT2
- (1) 3/4" Standard Weldon Tool Holder w/ internal Lubrication, MT2
CS Unitec MAB 485 Features
- Professional-grade, variable speed, reversible through 2 gears amazing versatility
- 2-1/16" diameter hole cutting capacity
- Integrated cable routing: No threading and getting caught, No tearing or snapping off
- CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools
- Automatic internal lubrication
- Morse Taper 3 to 3/4" Weldon Tool Holder
- Made in Germany
CS Unitec MAB 485 Specifications
| Max Annular Cutter Diameter | 2-1/16" |
| Max Twist Drill Diameter | 7/8" |
| Max Tapping Diameter | 15/16" |
| Max Countersinking & Reaming | 1-5/8"/ 7/8" |
| Speed | 50-250/100-450 RPM |
| Motor | 10.5 Amp / 110 Volt |
| Stroke | 6-1/3" |
| Weight | 29 lbs |
| Tool Holder(s) | 3/4" Weldon Quick-Change Chuck (manual 3/4" Weldon also included) |
| Spindle | Morse Taper 2 |
| Special Feature(s) | Reversible, Variable Speed, Quick Change Tool Holder, Integrated Cable Routing, CoolMag, Safemag Electronic Safety Shutoff |

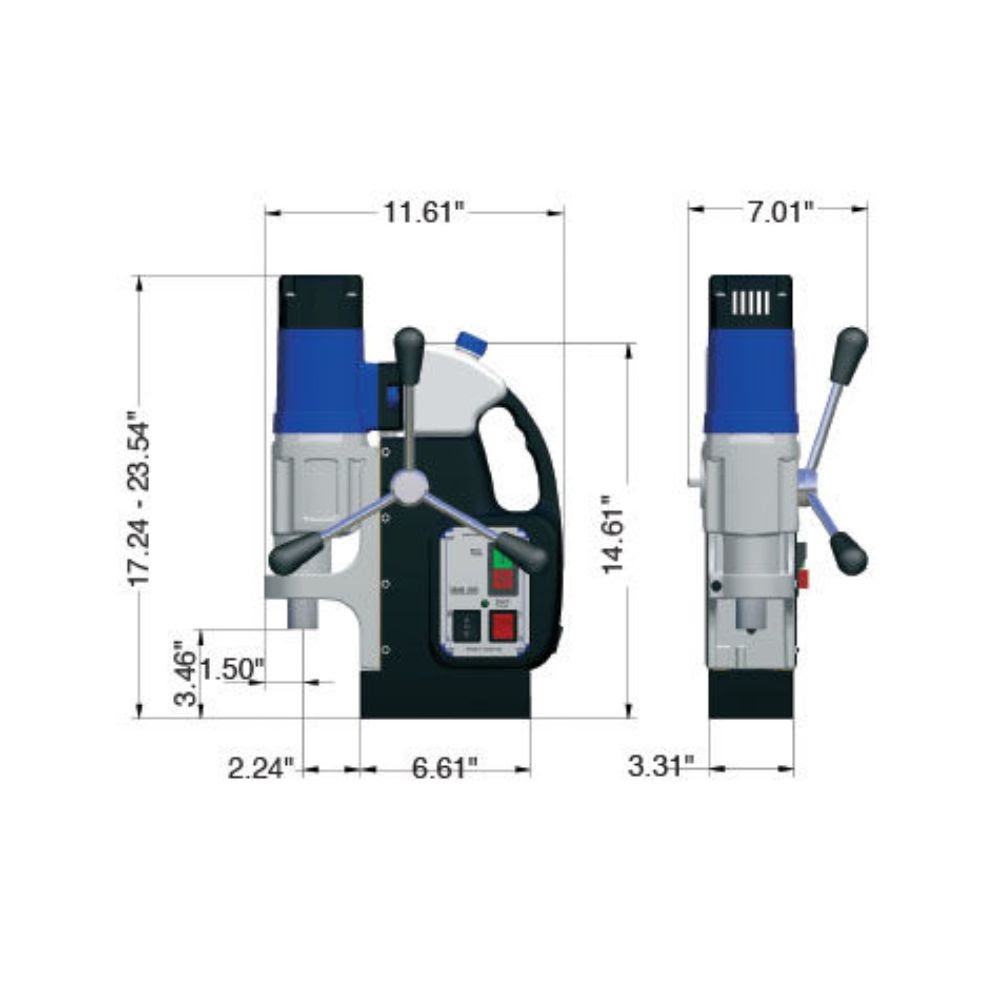

| Dimensions | 17-1/4" H x 11-5/8" L x 7" W |
| Magnetic Base Dimensions | 6-5/8" L x 3-1/3" W |
| Magnetic Force (1" Thick Plate) | 3750 lbs |
| Automatic Lubrication | Oil Bottle Included |
