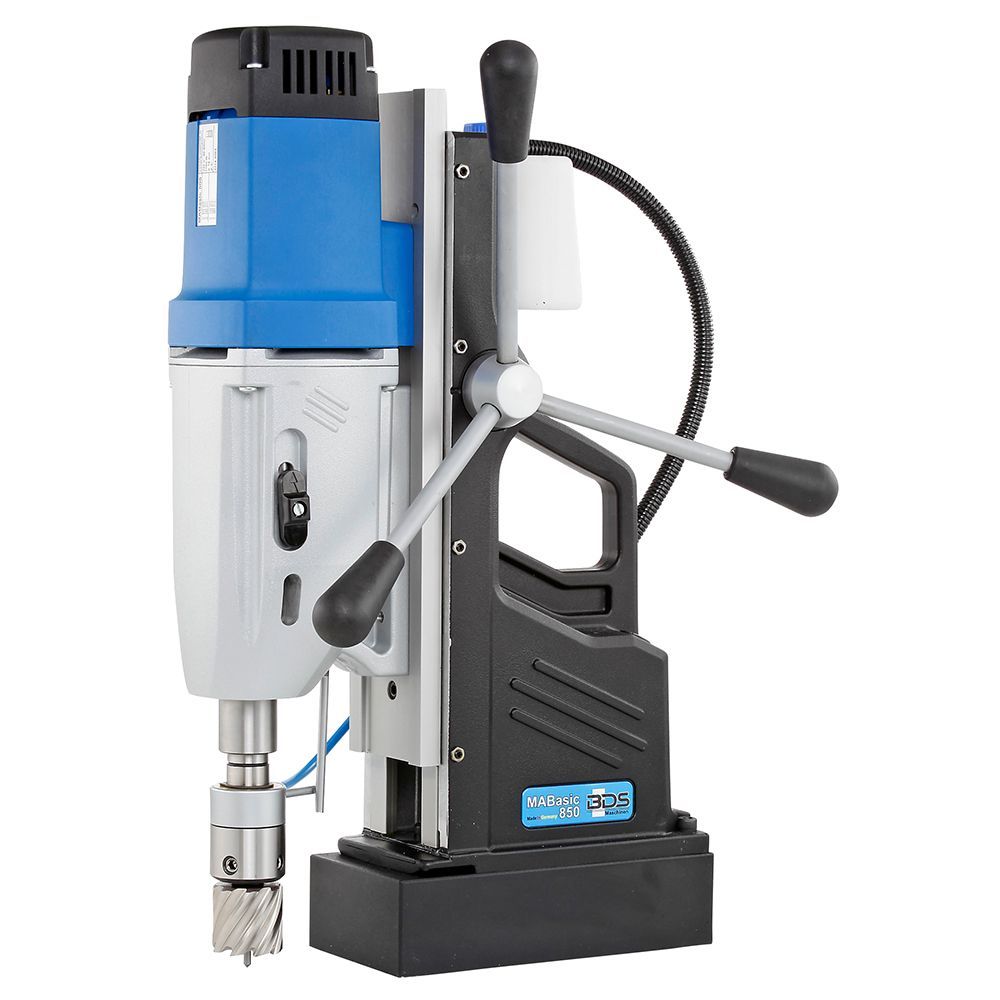

CS Unitec MABasic 850 Description
CS Unitec’s MABasic line of magnetic drills consists of powerful and reliable machines at an affordable price, a perfect blend of power, endurance and economy. The MABasic 850 is a professional-grade portable magnetic drill designed for continuous use with: 16 Amp, double-insulated motor, 4-speed gearbox (110, 175, 245, 385 RPM), a 10" stroke, and and a Morse Taper 3 spindle for easy changeover to different cutting tools. Powerful and portable, this drill cuts holes up to 3-1/16" dia. with annular cutters. The drill's MT3 design, coupled with the included 3/4" geared chuck, easily converts the MABasic 850 to a standard drill press for conventional twist drilling up to 1-1/4” diameter. The MABasic 850 is equipped with an internal lubrication system that increases the life of annular cutters by reducing friction and wear. The machine’s magnet has a holding strength of 6000 lbs.
CS Unitec MABasic 850 Includes
- (1) MABasic 850

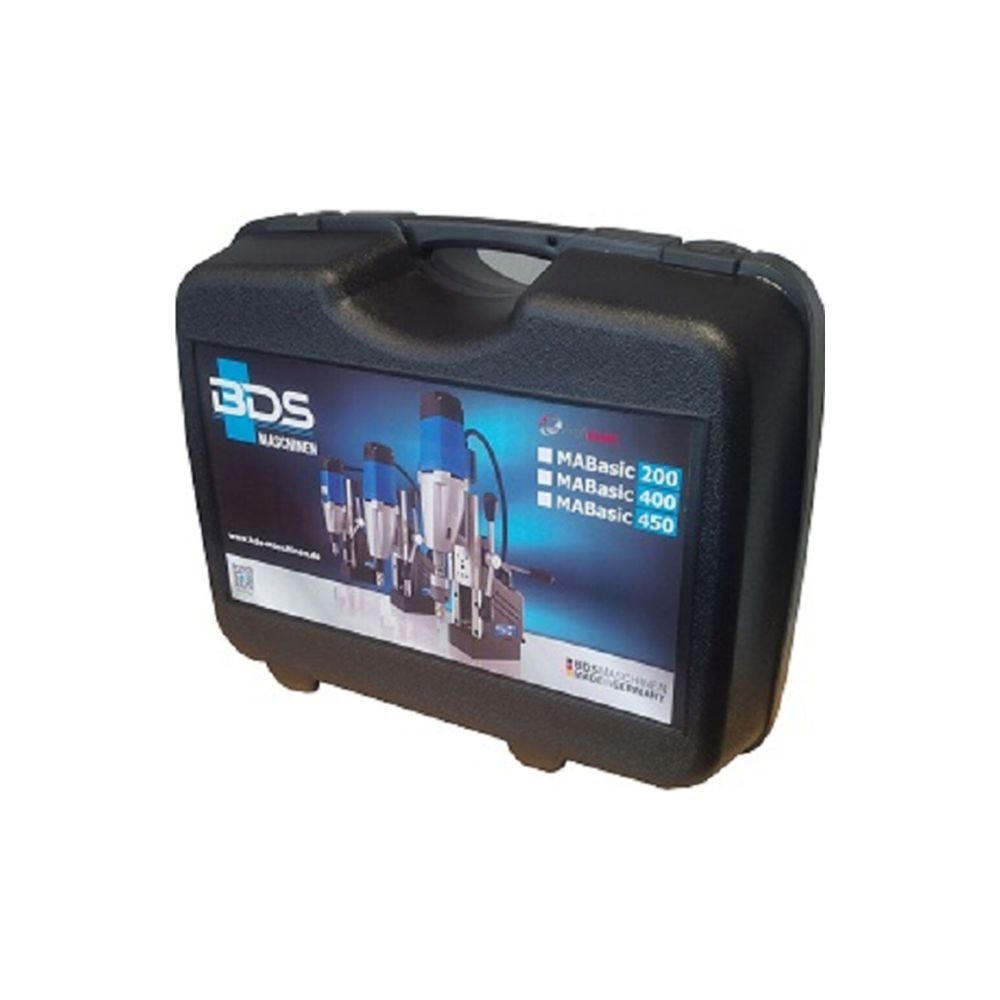

- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication, MT3
- (1) 3/4" Geared Chuck
CS Unitec MABasic 850 Features
- Heavy-duty, purpose-built, 2-speed workhorse
- 3-1/16" diameter hole cutting capacity
- Powerful and reliable machines at an affordable price
- Excellent Power To Weight Ratio
- Compact, lightweight, portable design
- Internal lubrication system
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- MT3 Spindle & Weldon tool holder
- Made in Germany
CS Unitec MABasic 850 Specifications
| Max Annular Cutter Diameter | 1-3/8" |
| Max Twist Drill Diameter | 1-1/4" |
| Speed | 110/175/245/385 RPM |
| Motor | 16 Amp / 110 Volt |
| Stroke | 10" |
| Weight | 53 lbs |
| Special Feature(s) | 4-Speed, Morse Taper, Durability, Economy, Electronic Safety Shutoff |
| Spindle | Morse Taper 3 |
| Dimensions | 19-3/8" H x 11-5/8" L x 8-1/4" W |
| Magnetic Base Dimensions | 14" L x 4-3/4" W |
| Magnetic Force (1" Thick Plate) | 6000 lbs |
| Automatic Lubrication | Oil Bottle Included |
