BDS CS Unitec PipeMAB 200 Magnetic Drill with Patented Pipe Saddle Base | 1-3/8" | Drill on Pipe, Curved & Flat Surfaces | Large Stroke
Description
Description

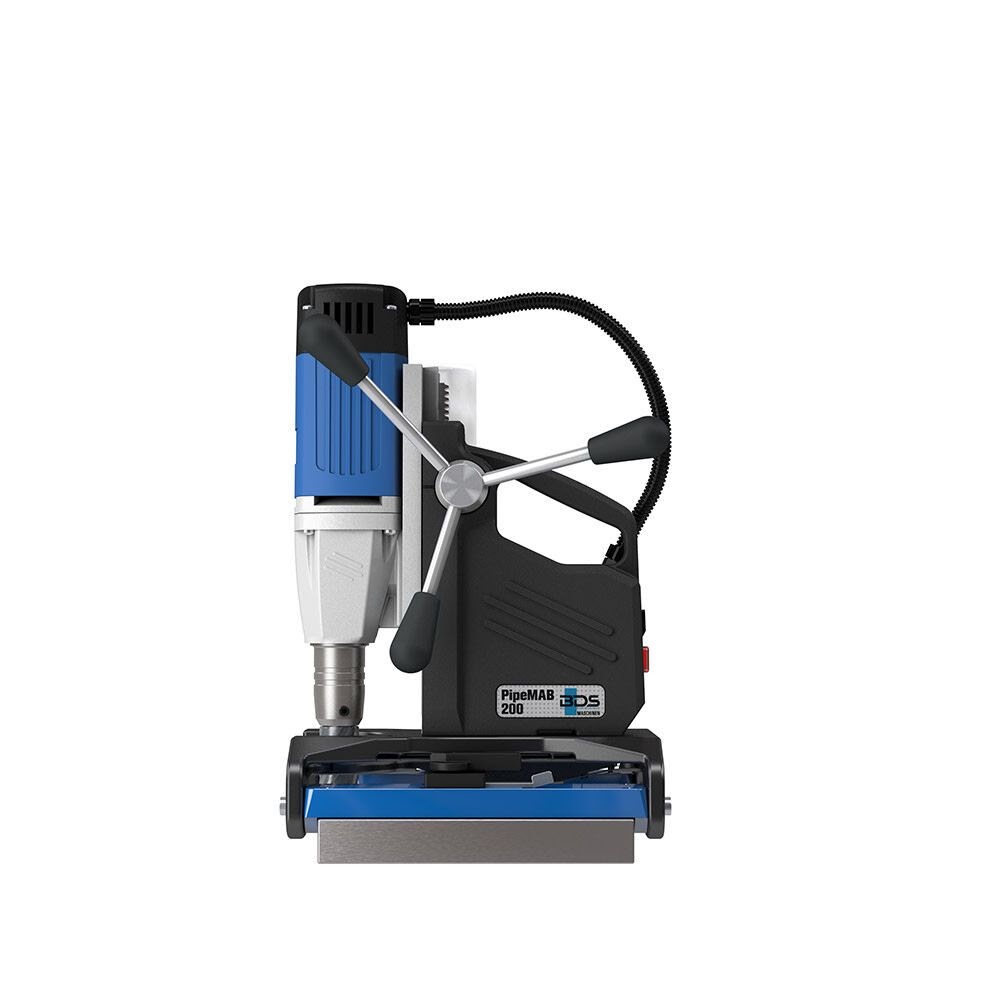

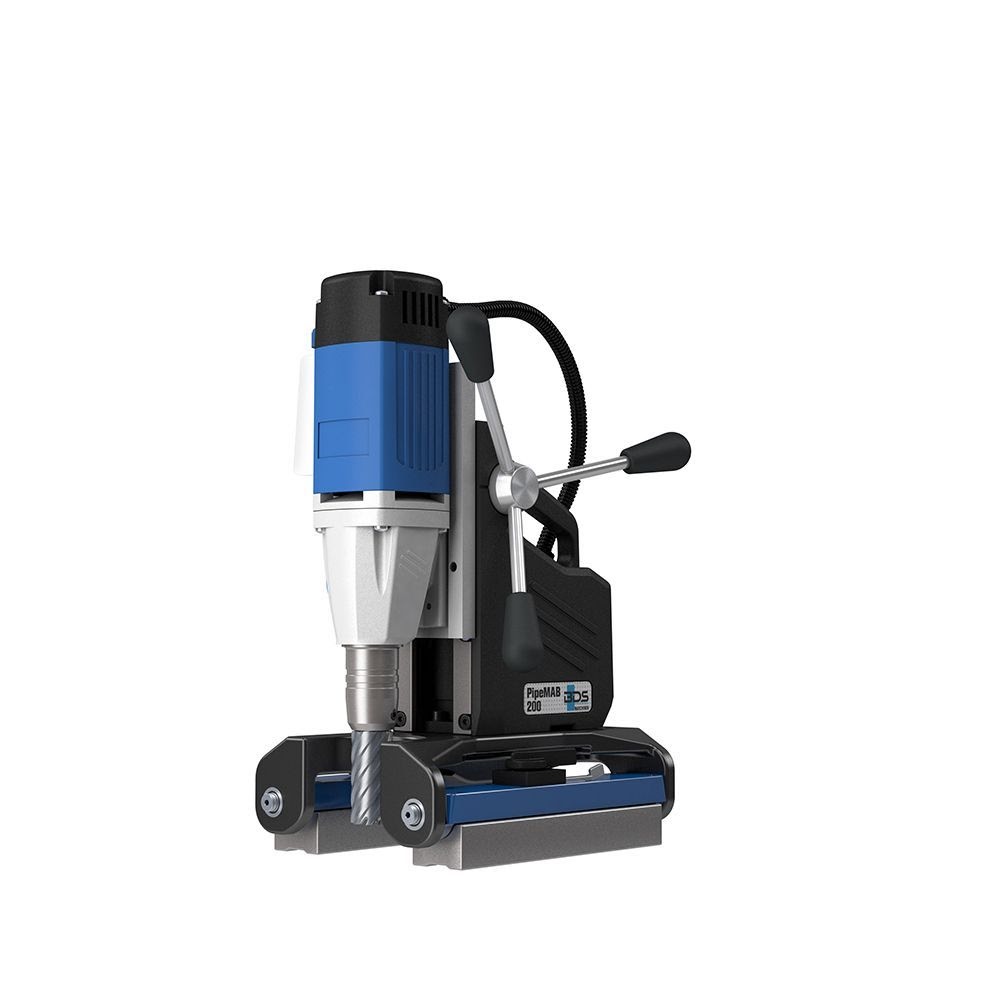

CS Unitec PipeMAB 200 Description

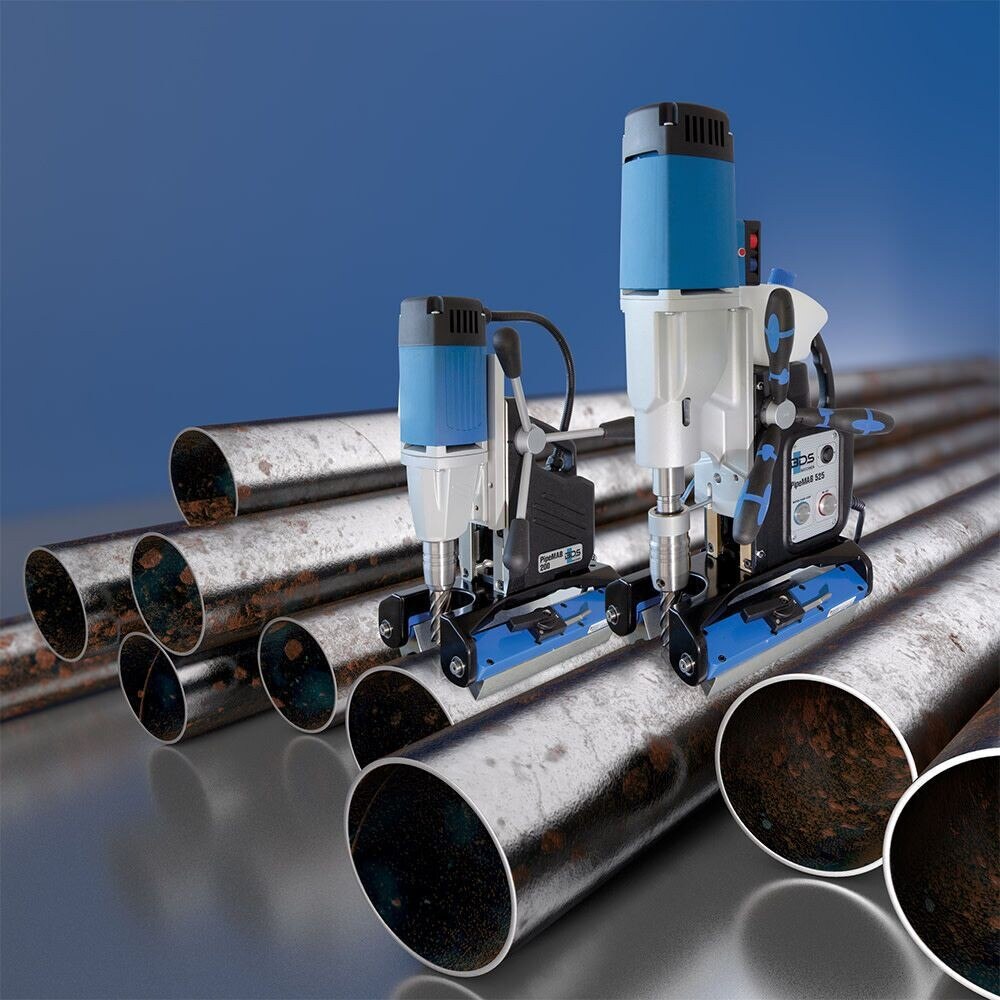

Our NEW PipeMAB magnetic drills dramatically reduce the time and effort required to drill, tap, ream and countersink in pipe. Equipped with patented swivel magnetic clamping systems, PipeMAB models can drill on pipe 3” OD and larger, inner pipe wall (ID,) as well as flat and curved surfaces. The permanent magnets’ strong clamping force allows for great flexibility with adhesion on ferrous materials as thin as 9/64,” and increased accuracy with swing-away magnetic clamping allowing for easy hole alignment and clearing of debris. With a highly stable permanent magnet system, the PipeMAB’s magnets remain active independent of electricity, increasing safety and reducing the chance of drop hazards. This pipe system combined with the features of the PipeMAB 200 make for the most versatile pipe drilling machines on the market. Features include: Up to 1-3/8” drilling diameter capacity, 1/2" Twist Drill Capacity, 3/4" Weldon Tool Holder, 6-1/3" Stroke, automatic lubrication, 35 lb weight.
CS Unitec PipeMAB 200 Includes
- (1) PipeMAB 200
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4" Weldon Tool Holder w/ internal Lubrication, Affixed
CS Unitec PipeMAB 200 Features
- Game changer for pipe drilling & more! Easily attaches to pipe over 3" OD, curved and flat surface saving time and effort
- Patented shallow field field magnetic technology, with easy switch on/off permananent magnets. Strong clamping force even on thin material.
- Swing arm design allows the machines to swing away for hole inspection, debris removal and adjustment
- 1-3/8" diameter hole cutting capacity
- Ideal for industrial, construction, marine, and mining applications
- Drill structural steel and other metals
- Reversible motor for tapping
- Automatic lubrication
- Made in Germany
CS Unitec PipeMAB 200 Specifications
| Max Annular Cutter Diameter | 1-3/8" |
| Max Twist Drill Diameter | 1/2" |
| Speed | 450 RPM |
| Motor | 8.2 Amp / 110 Volt |
| Stroke | 6-1/3" |
| Weight | 35 lbs |
| Special Feature(s) | Patented Pipe Magnet System, Permanent Magnet Quick Lock System |

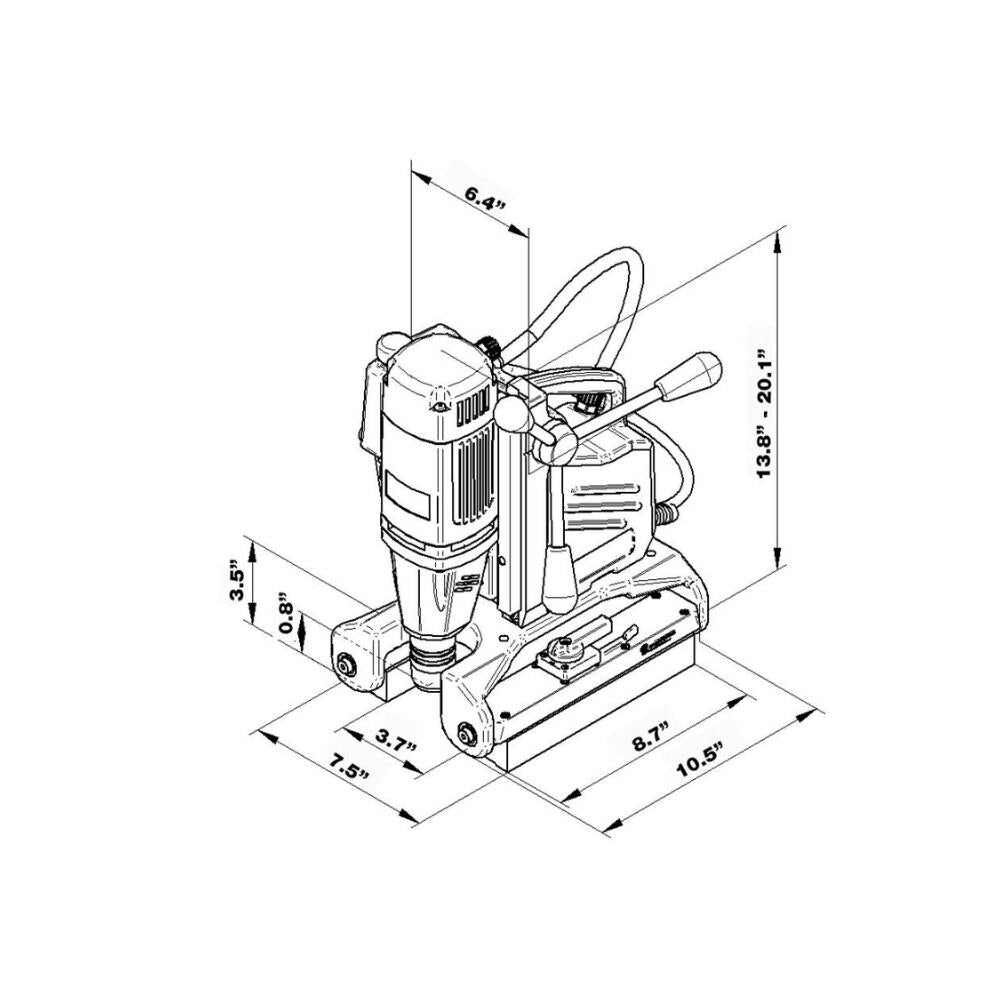

| Dimensions | 13.75" H x 10.5" L x 7.5" W |
| Magnetic Base Dimensions | 10.5" L x 7.5" W x 3.5" H |
| Magnetic Force (3/4" Thick Plate) | 2250 lbs |
| Automatic Lubrication | Oil Bottle Included |
