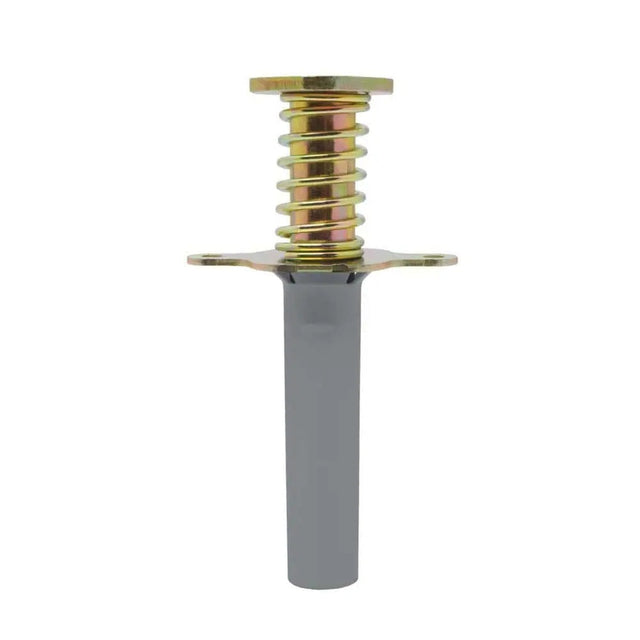

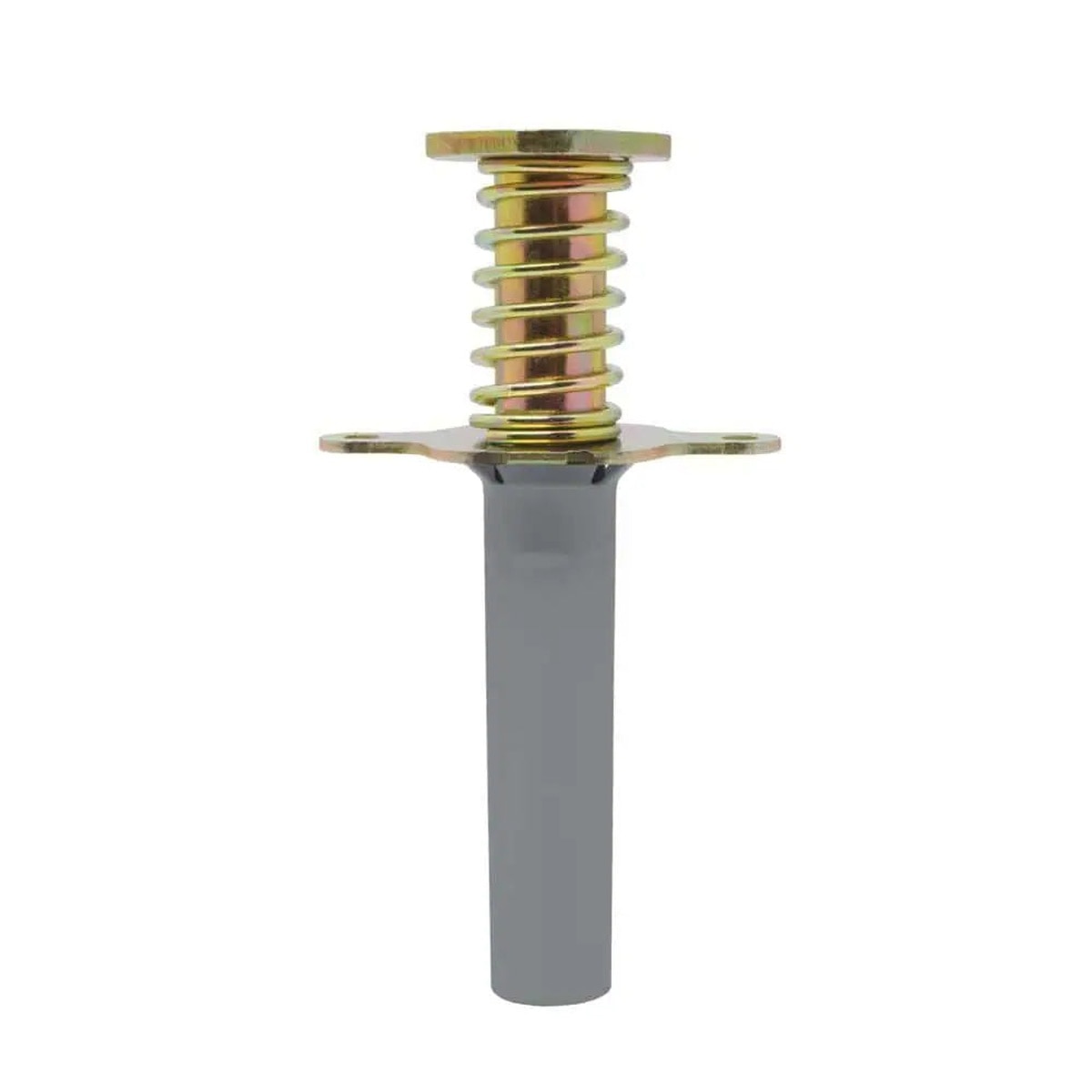

DeWalt 07543-PWR Description
The DeWalt 07543-PWR Multi-Thread BANG-IT metal deck insert is designed for fast, simple installation in cast-in-place concrete over steel deck. Its multi-thread design accepts 3/8 in. to 1/2 in. threaded rod sizes with one insert, while the sturdy base and non-rotating hex head help provide reliable placement and performance. The gray color coding allows quick size identification, and the insert is suitable for normal-weight and lightweight concrete applications.
DeWalt 07543-PWR Includes
- (100) Multi-Thread BANG-IT Metal Deck Inserts
DeWalt 07543-PWR Features
- Multi-thread insert accepts 3/8 in. to 1/2 in. threaded rod sizes
- Designed for fast, simple installation with low installed cost
- Suitable for use in upper and lower steel deck profiles with limited concrete topping thickness
- Hex head does not rotate when set
- Sturdy base design helps resist the insert from being kicked over after placement
- Color-coded gray for quick size identification
- Suitable for seismic and wind loading
- Rated for tension and shear loading
- Compatible with normal-weight and lightweight concrete
DeWalt 07543-PWR Specifications
| Color | Gray |
| Product Type | Metal Deck Insert |
| Thread Type | Multi-Thread |
| Anchor Diameter | 3/8 in. to 1/2 in. |
| Hole Size | 7/8 in. |
| Material | Carbon Steel and Engineered Plastic |
| Quantity | 100 |
| Suitable Base Materials | Normal-weight Concrete, Lightweight Concrete |
| Approvals and Listings | ICC-ES ESR-3657, UL Listed, ASTM E488, ICC-ES AC446, FM Approved |
| Shipping Weight | 42.24 lb |
Toolup Part # :
367179
