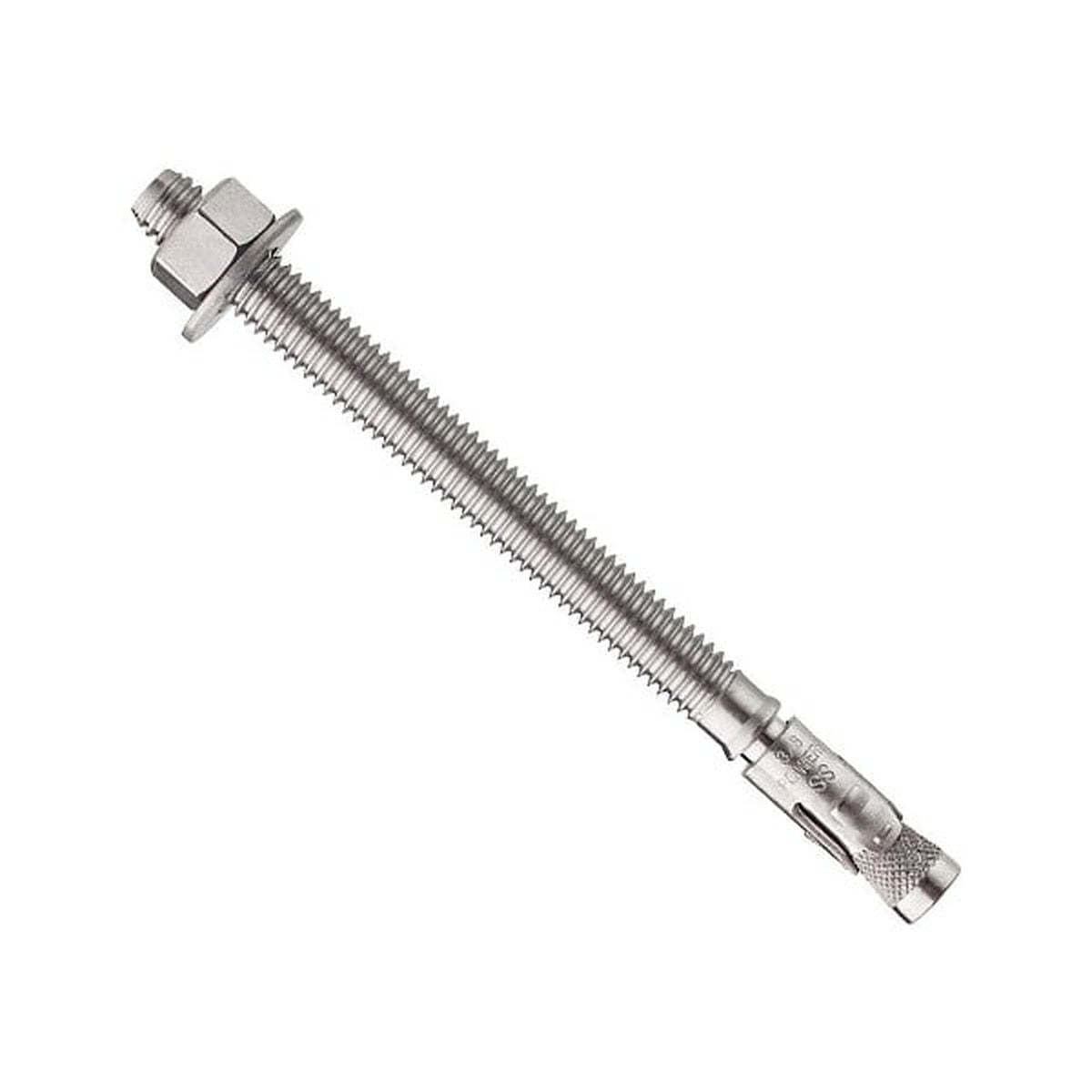

DeWALT 7349SD4USA-PWR Description
The DeWALT Power Stud Plus SD4 is a fully threaded, torque-controlled wedge expansion anchor built for reliable performance in cracked and uncracked concrete as well as grouted CMU. Made from corrosion-resistant 304 stainless steel, this 3/4 in. x 10 in. anchor is suited for structural connections, pipe supports, fire sprinklers, cable trays, and other interior or exterior fastening applications. Nut and washer are included.
DeWALT 7349SD4USA-PWR Includes
- (1) Wedge Expansion Anchor
- (1) Nut
- (1) Washer
DeWALT 7349SD4USA-PWR Features
- Fully threaded, torque-controlled wedge expansion anchor
- 304 stainless steel construction for corrosion resistance
- Designed for consistent performance in cracked and uncracked concrete
- Knurled mandrel helps reduce galling during service life
- Installs through standard clearance fixture holes
- Allows follow-up expansion after setting under tensile load
- Head is stamped with length ID code and identifying marking
- Nominal drill bit size matches anchor diameter
DeWALT 7349SD4USA-PWR Specifications
| Product Type | Wedge Expansion Anchor |
| Series | Power Stud Plus SD4 |
| Diameter | 3/4 in |
| Overall Length | 10 in |
| Thread Length | 7-5/8 in |
| Material | 304 Stainless Steel |
| Minimum Embedment Depth | 3-3/8 in |
| Drill Size | 3/4 in |
| Thread Type | UNC |
| Base Material | Concrete and Grouted Concrete Masonry |
| Application | Structural connections, beam and column anchorage, cable trays, strut, pipe supports, and fire sprinklers |
| Country of Origin | United States |
Toolup Part # :
892063
