At a Glance
Anchor Type
Screw
Bolt Diameter
5/16 in
For Use On
Concrete
Description
Description

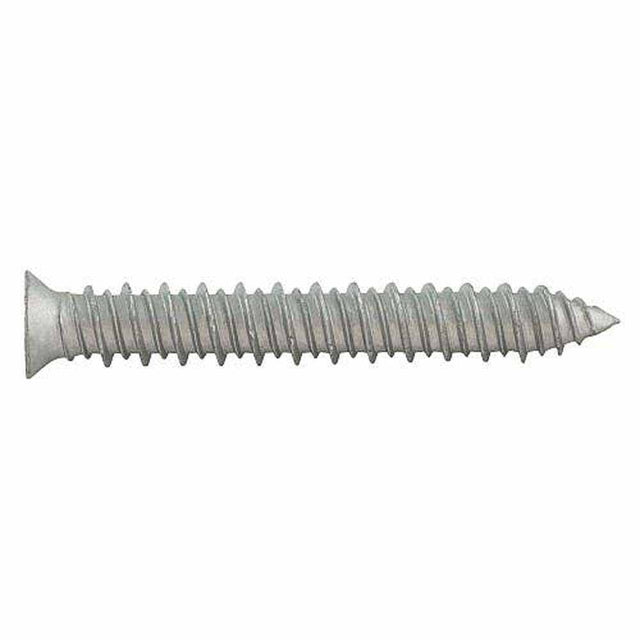

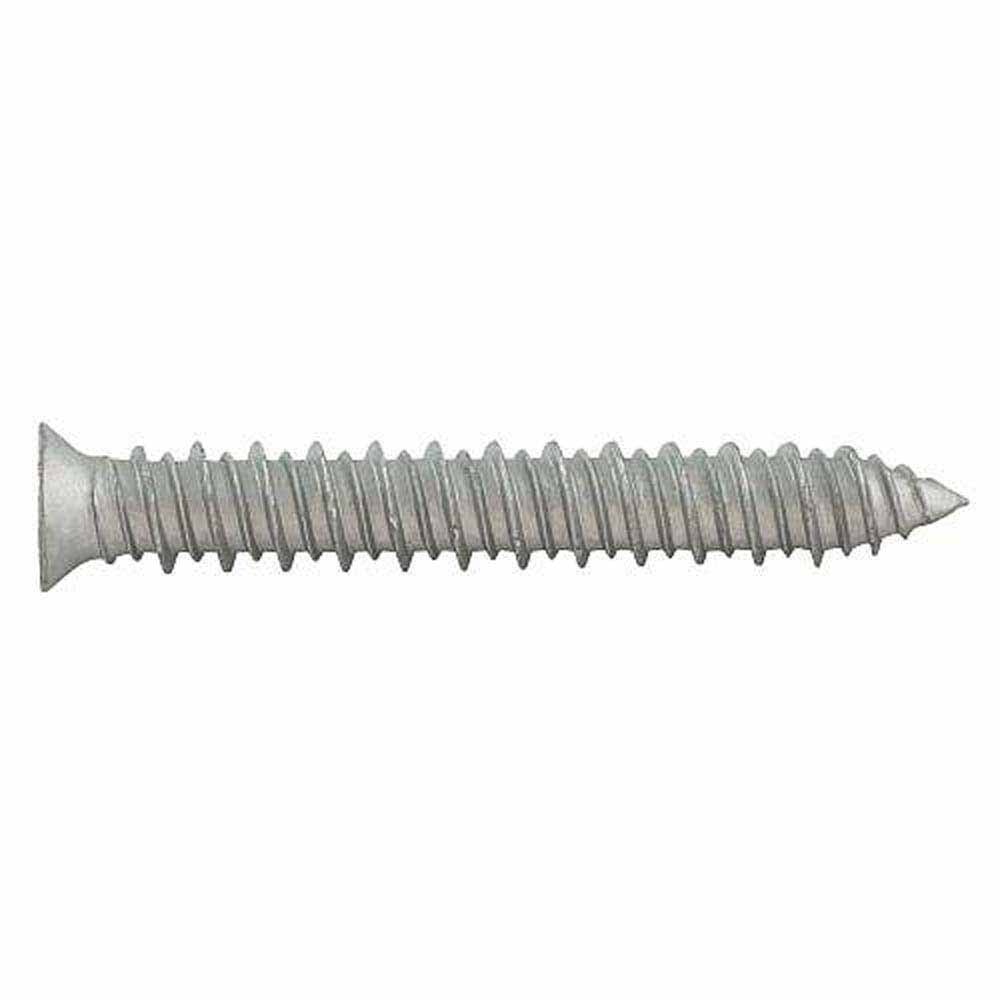

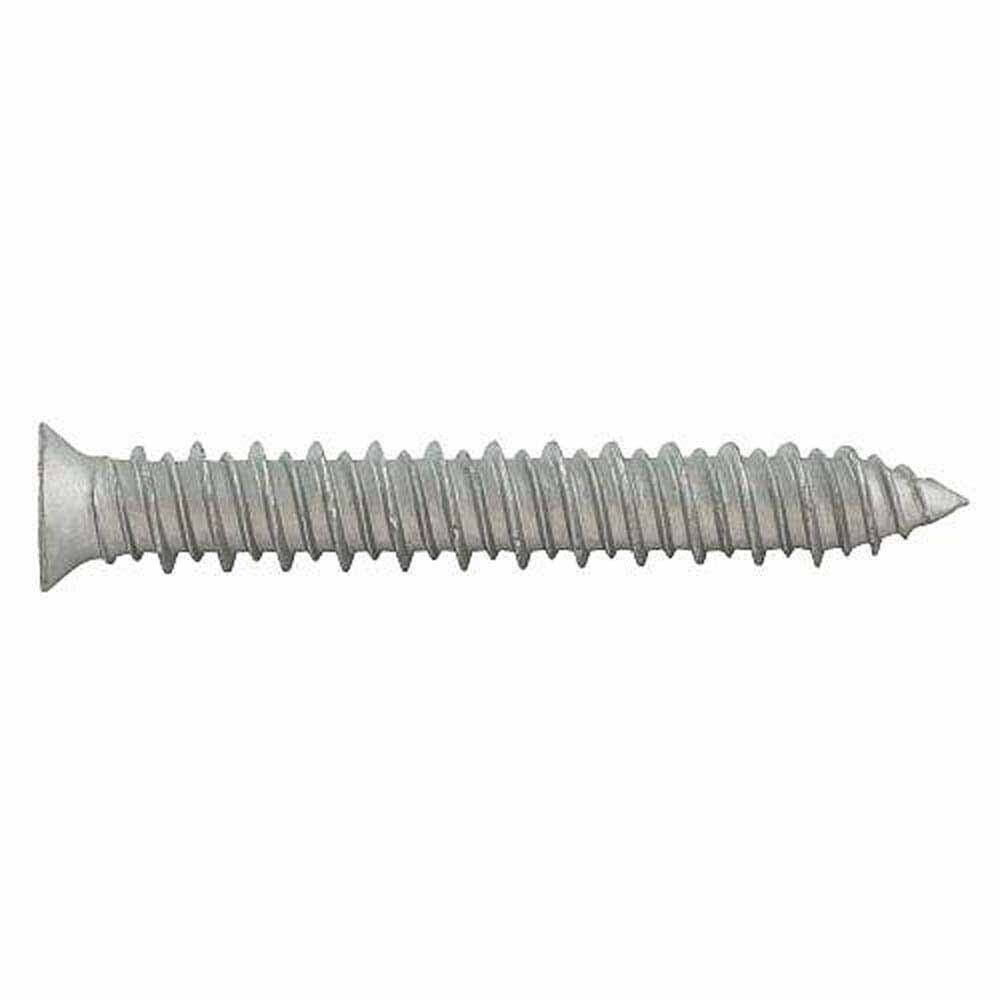

UltraCon TFH 5/16 x 5 Concrete Screw Anchor Description
The UltraCon fastening system is a complete family of screw anchors for light to medium duty applications in concrete and masonry block base materials. UltraCon is available in 5/16" diameter which provides increased shear and tensile strength to meet the needs of more demanding applications. The UltraCon is fast and easy to install and provides a neat, finished appearance. The UltraCon screw anchor is available in carbon steel with a Stalgard coating in silver that provides additional corrosion resistance.
UltraCon TFH 5/16 x 5 Concrete Screw Anchor Includes
- (250) UltraCon TFH 5/16 x 5 Concrete Screw Anchors
UltraCon TFH 5/16 x 5 Concrete Screw Anchor Features
- 5/16" diameter provides increased shear and tensile strength
- Available in various head styles to fit the intended application
- Stalgard coating provides 1000 hours of salt spray protection
- Installed with a standard ANSI bit
UltraCon TFH 5/16 x 5 Concrete Screw Anchor Specifications
| Diameter | 5/16" |
| Length | 5" |
| Head Type | Flat TrimFit |
| Drive Type | Star |
| Driver Size | #3 |
| Material | Carbon Steel |
| Finish | Stalgard Silver |
| Drill Bit Reference | 7/32" |
Toolup Part # :
764558
