At a Glance
RPM
2700 RPM
Blows Per Minute
46000 BPM
Motor Type
Brushed
Chuck Size
1/2 in
Description
Description

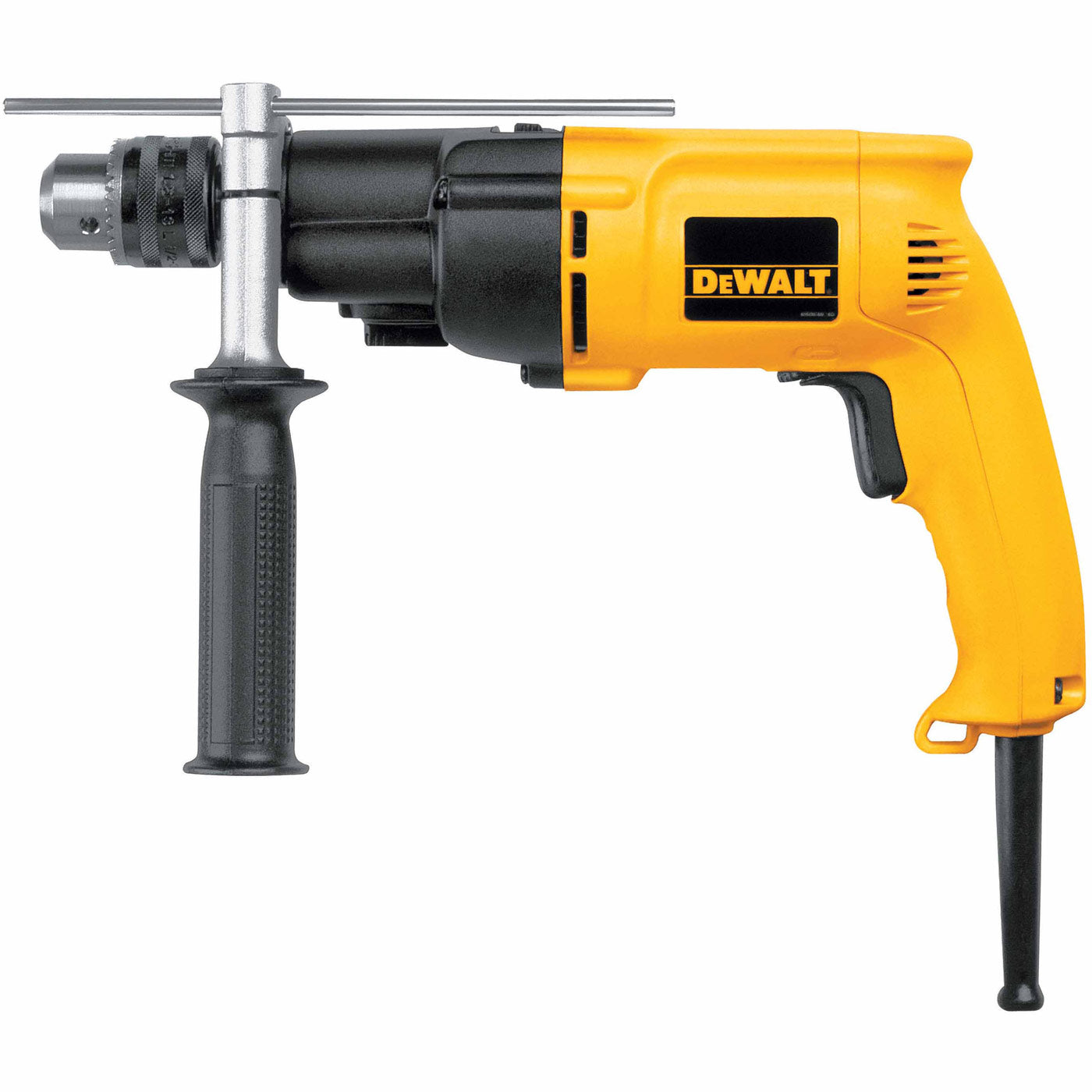

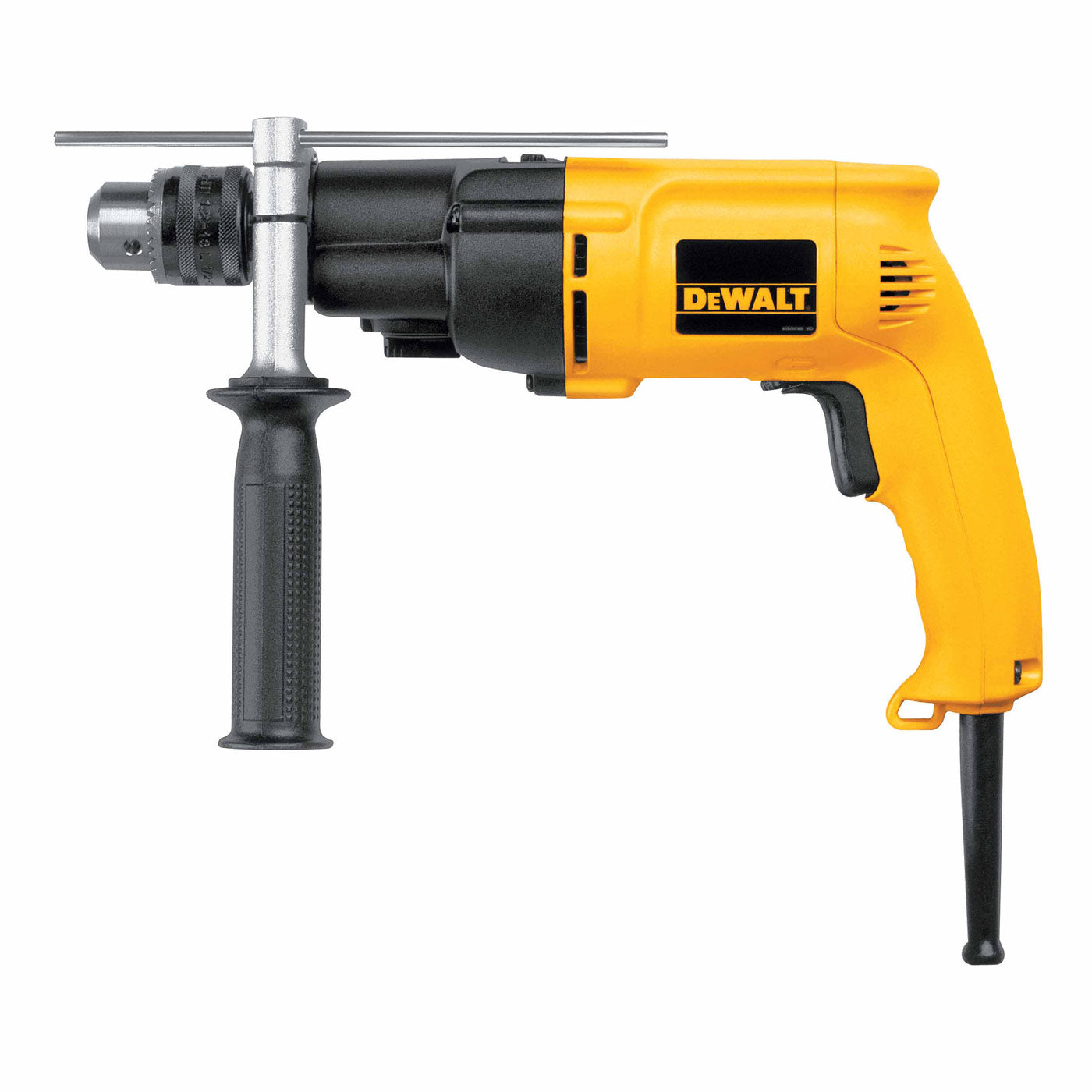

DeWalt DW505 Includes
- 360� side handle
- Depth rod
- Chuck key
DeWalt DW505 Features
- 7.8 Amp motor provides high performance and overload protection
- High/low speed for high speed drilling or high torque applications
- Dual mode: hammerdrill/drill for wood, steel or masonry applications
- Lightweight design for less user fatigue
- Two-finger trigger for increased comfort
- 360� side handle with depth rod offers greater control, versatility, and increased depth accuracy
- Variable speed allows for precise hole placement on work surface
DeWalt DW505 Specifications
| Amps: | 7.8 Amps |
| Max Watts Out: | 650 W |
| No Load Speed: | 0-1,100 / 0-2,700 rpm |
| Blows/Min: | 0-19,000 / 0-46,000 bpm |
| Capacity In Steel: | 1/2" |
| Capacity In Wood: | 1-1/2" |
| Concrete Optimum: | 3/16 - 3/8" |
| Concrete Maximum: | 1/2" |
Toolup Part # :
4568
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
Proudly Made In The USA
DEWALT understands that buying American products and building the American economy are important to our customers. DEWALT is now offering a selection of more than 600 different power tool, hand tool and accessory products that are being made right here in the USA using materials and components from all over the world.
