DeWalt | SKU:
DWS780

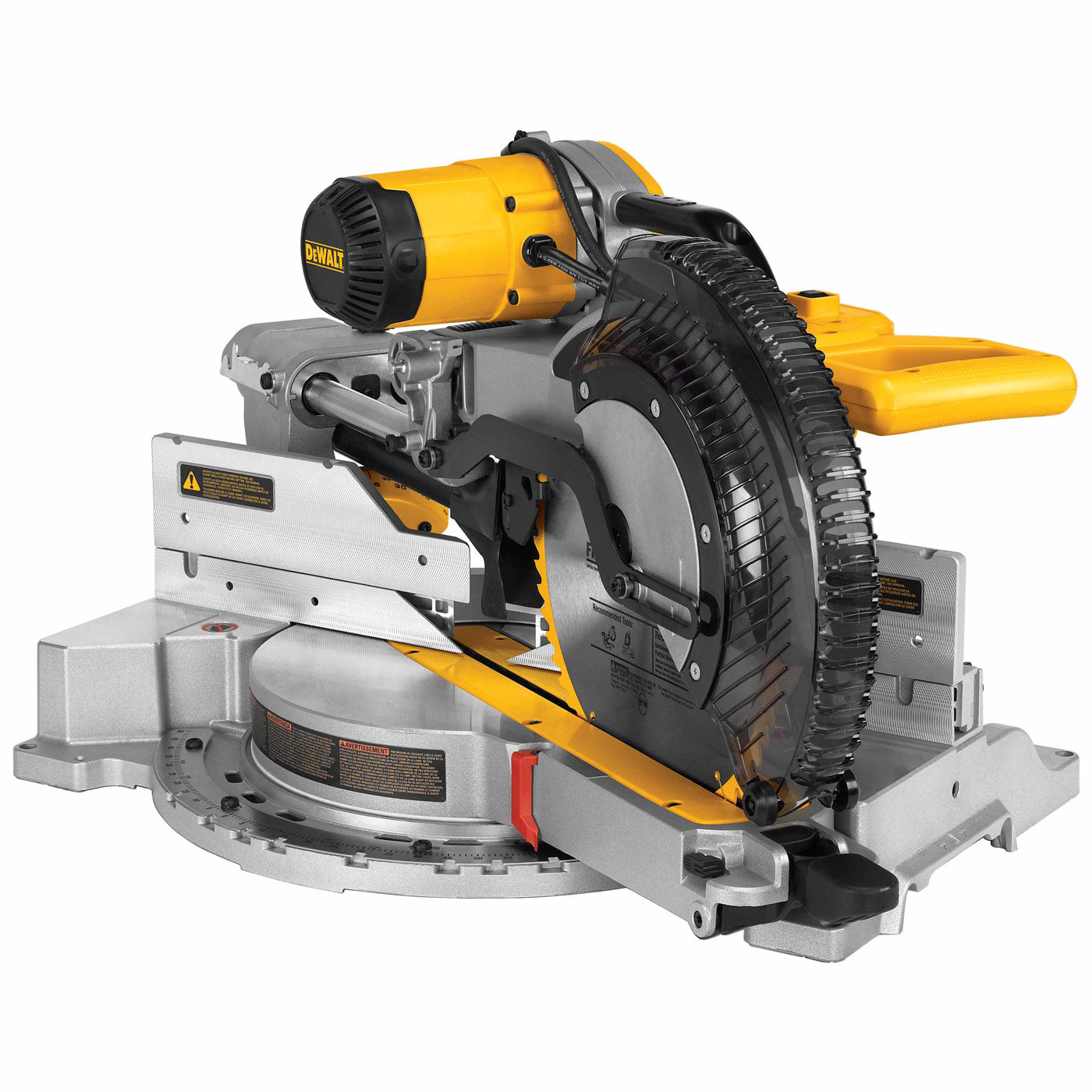

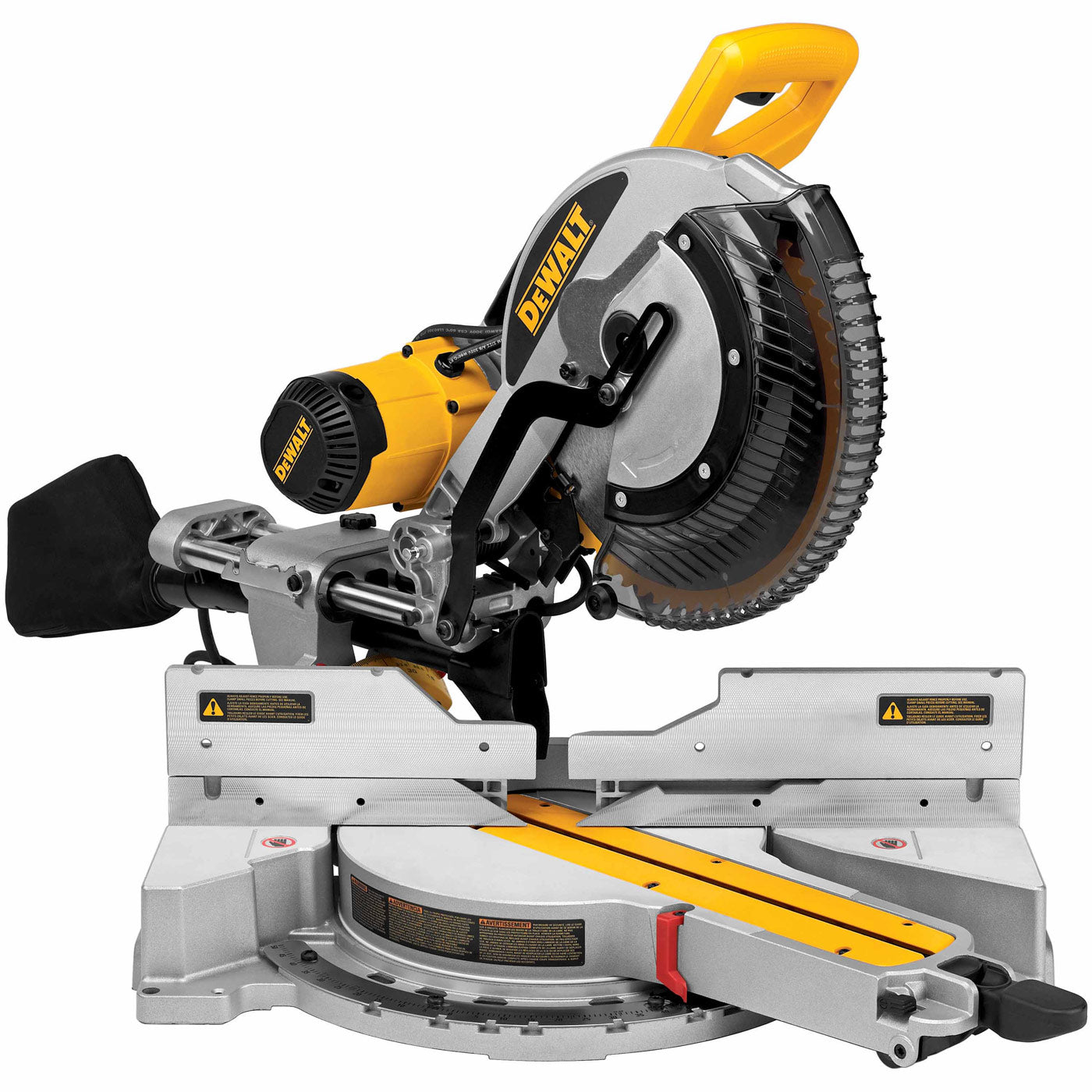

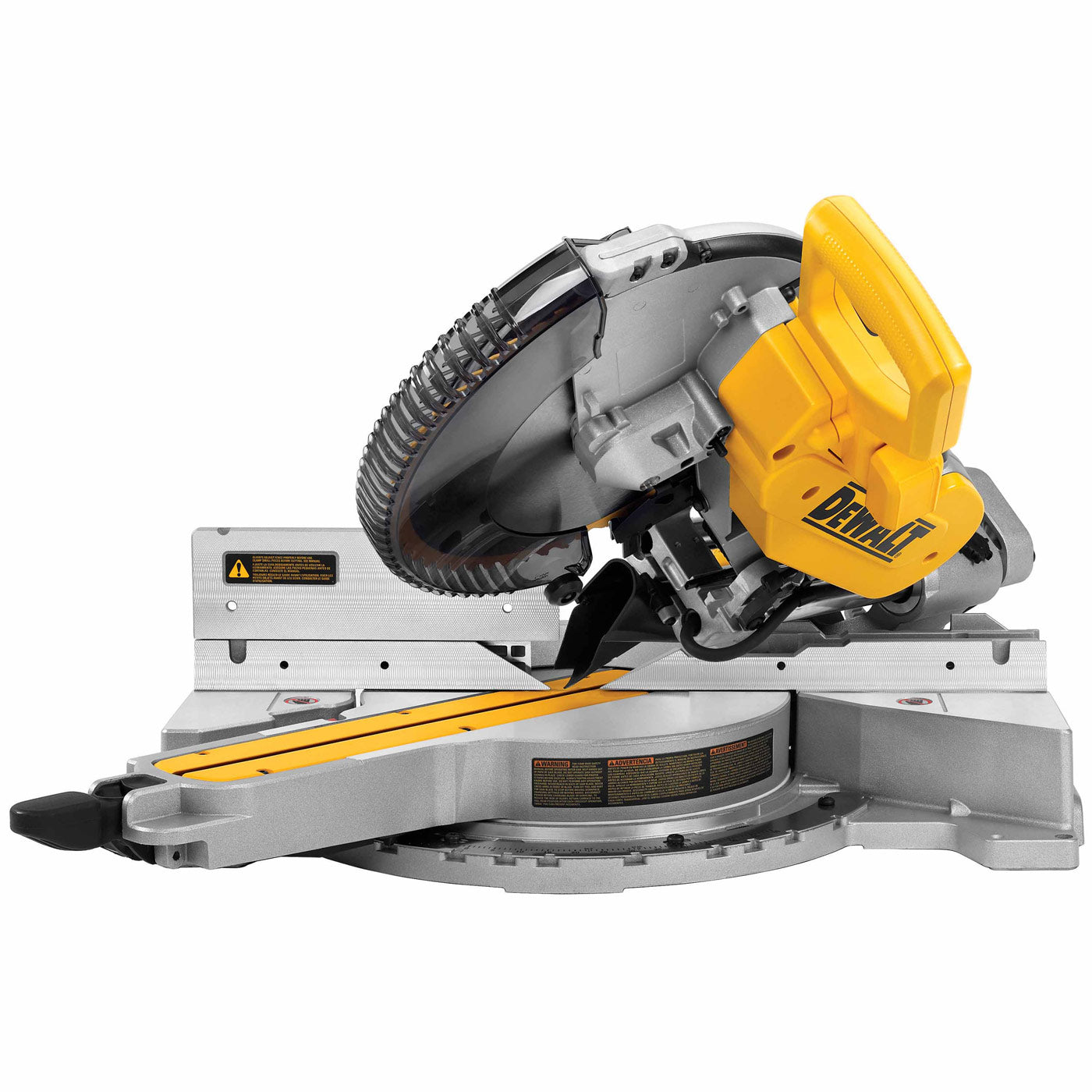

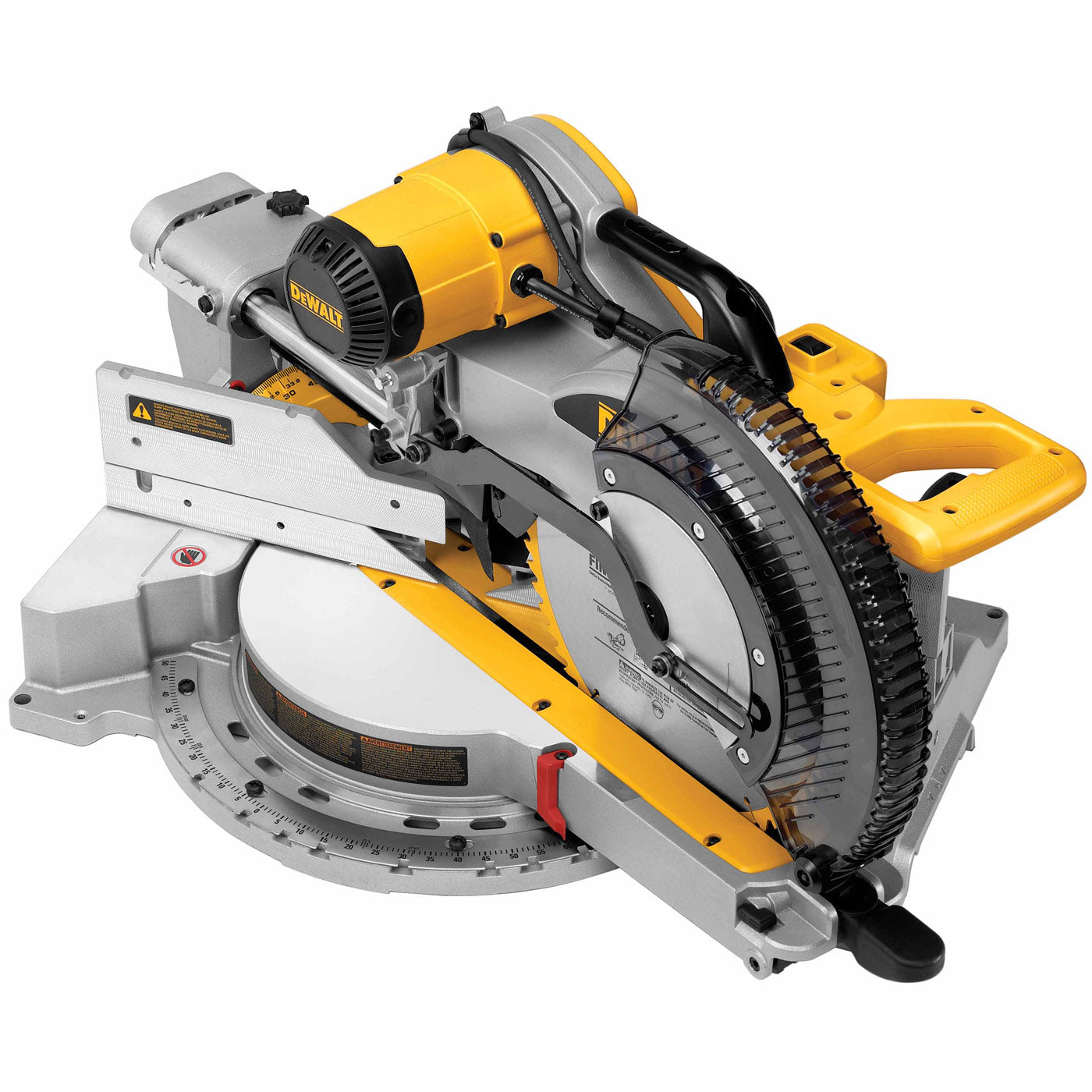

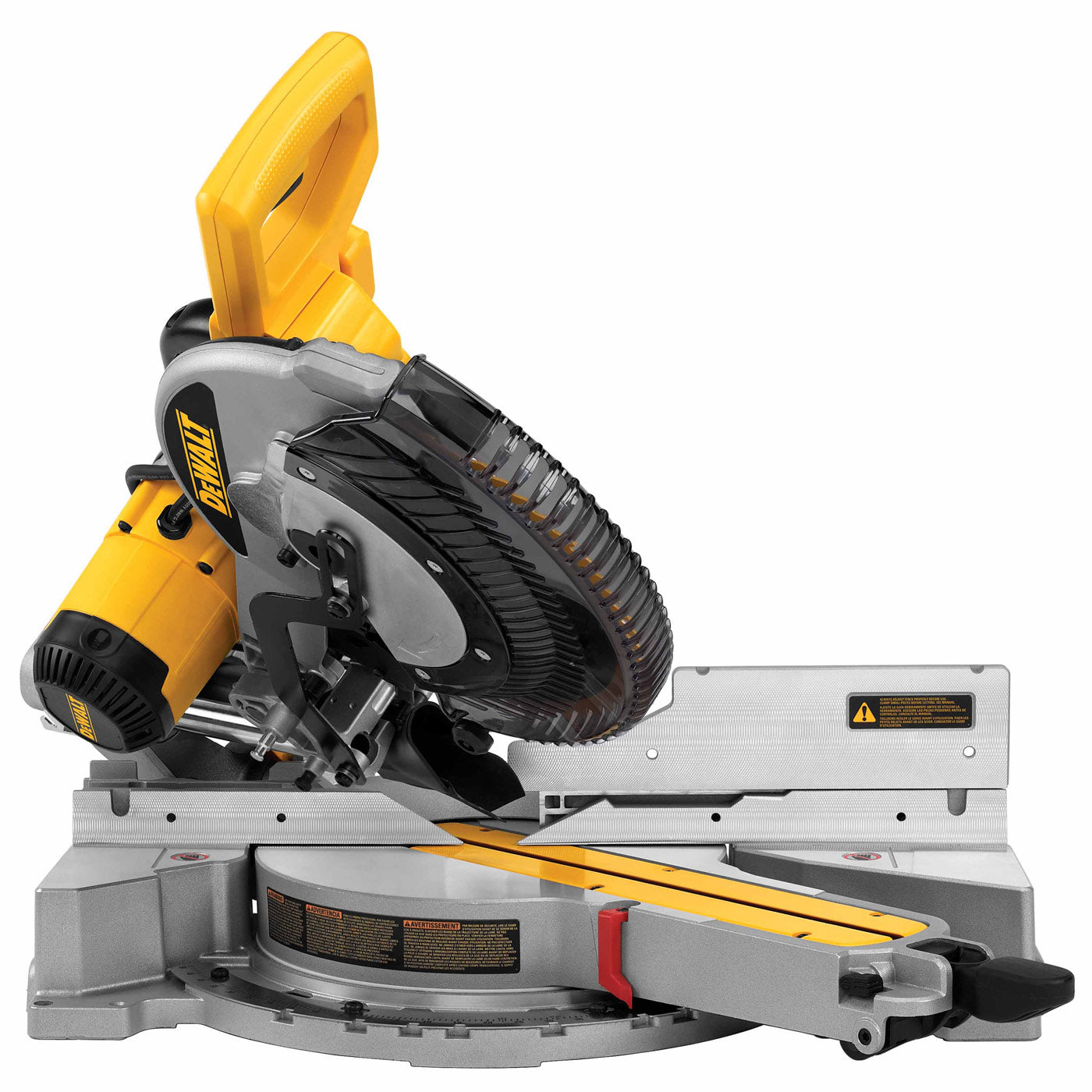

DeWalt DWS780 12" Double Bevel Sliding Compound Miter Saw
$100.00 off
Free Shipping
$549.00
$649.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
DeWalt DWS780 Includes
- Carbide Blade

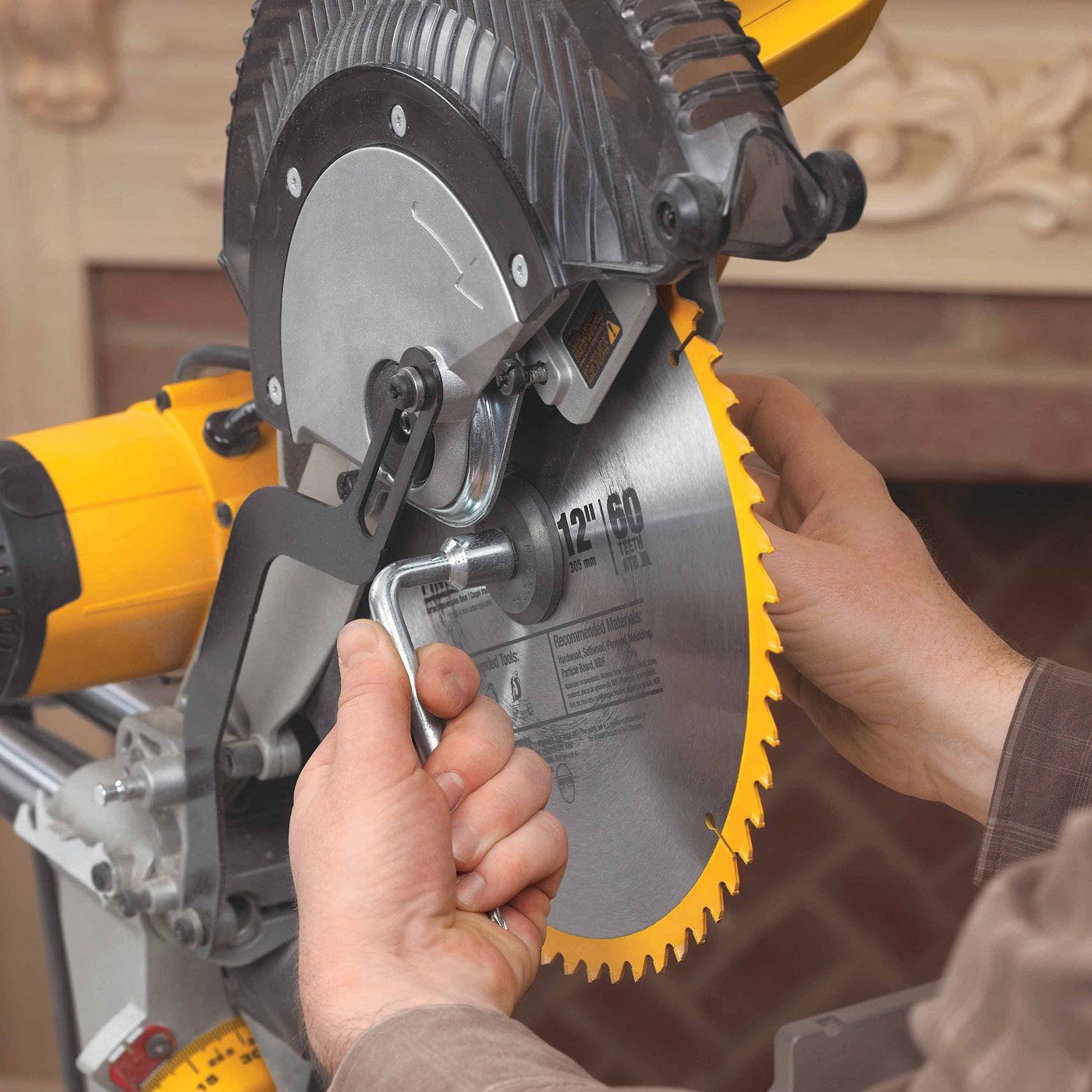

- Blade Wrench
- Dust Bag
- Vertical Material Clamp
DeWalt DWS780 Features

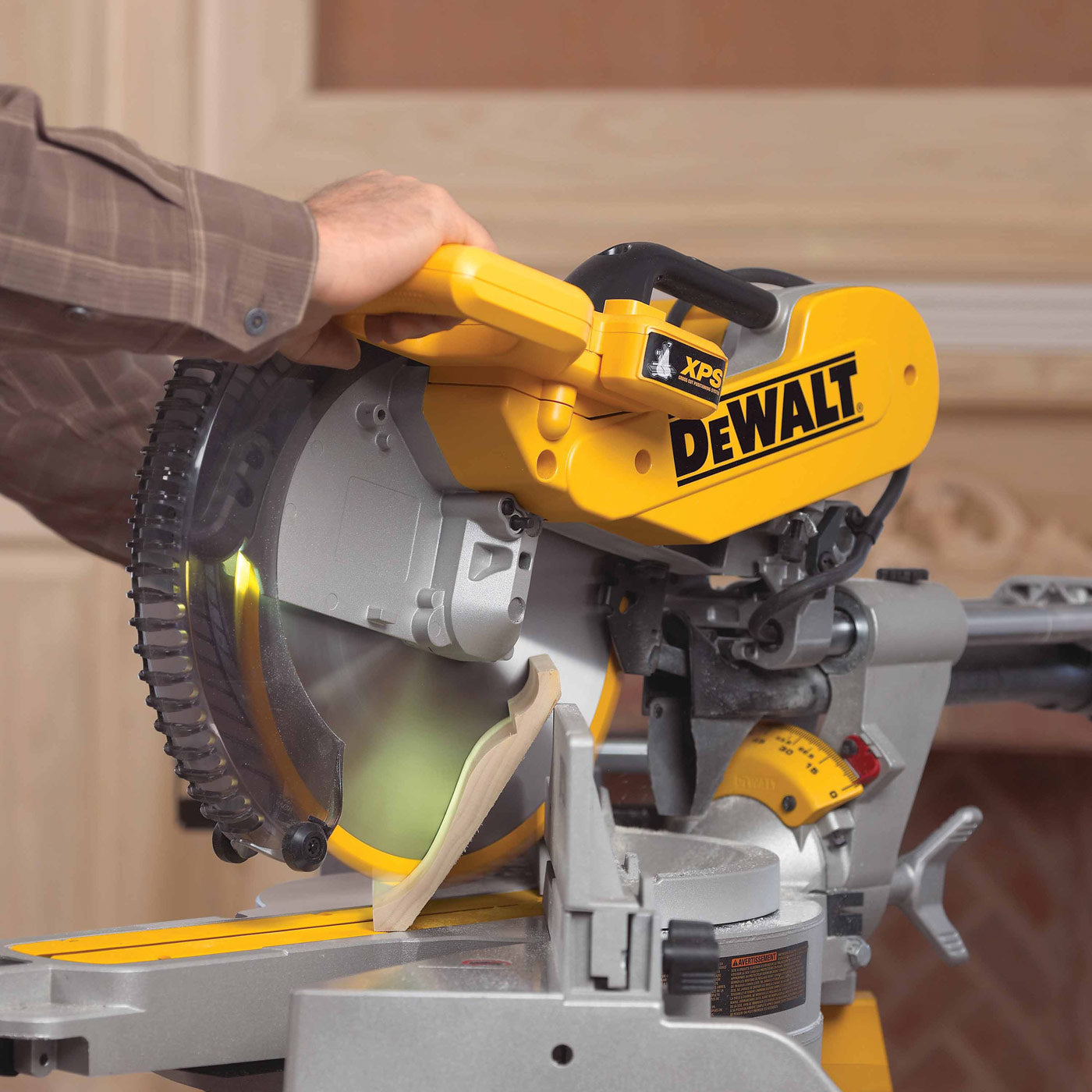

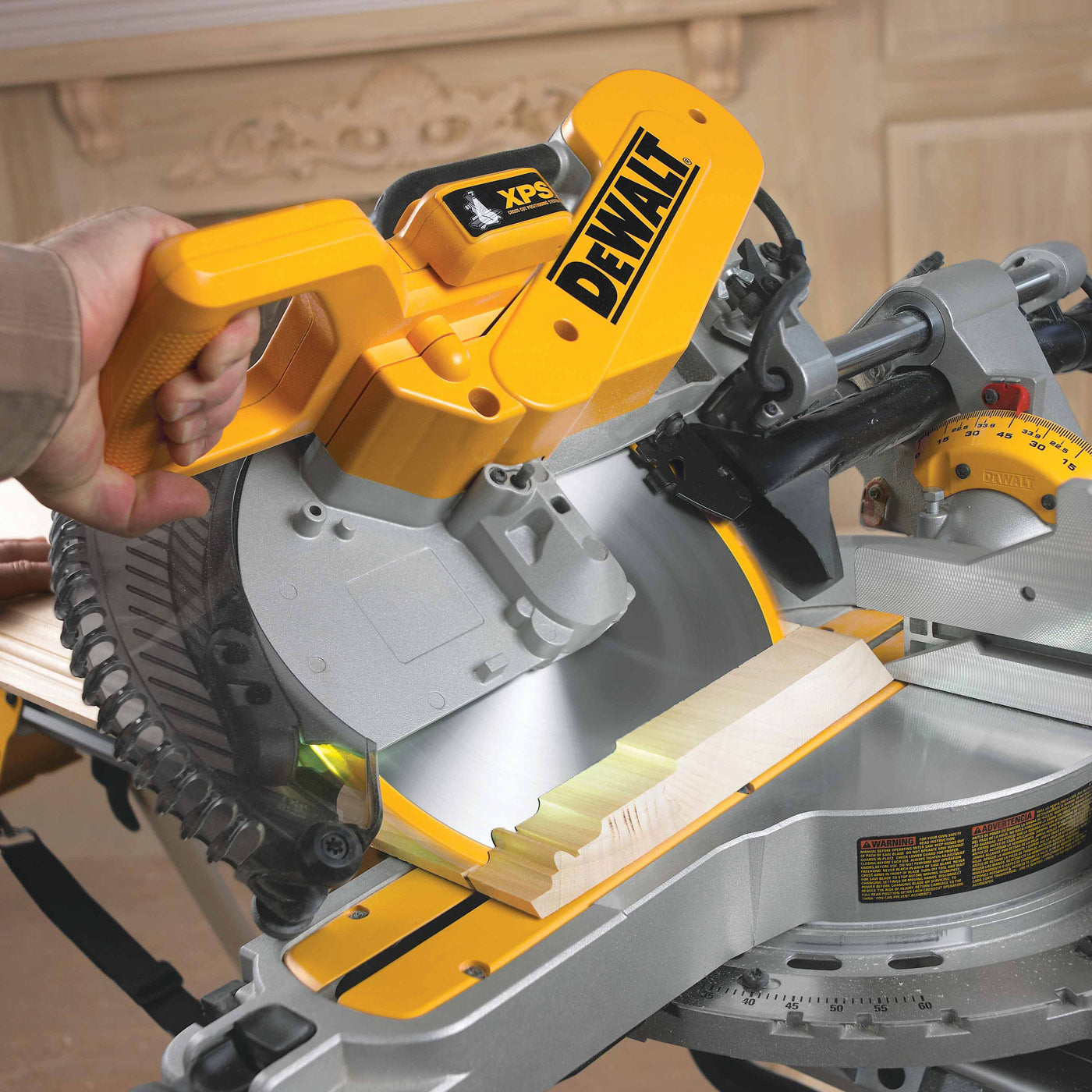

- Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
- Super efficient dust collection system captures over 75% of dust generated

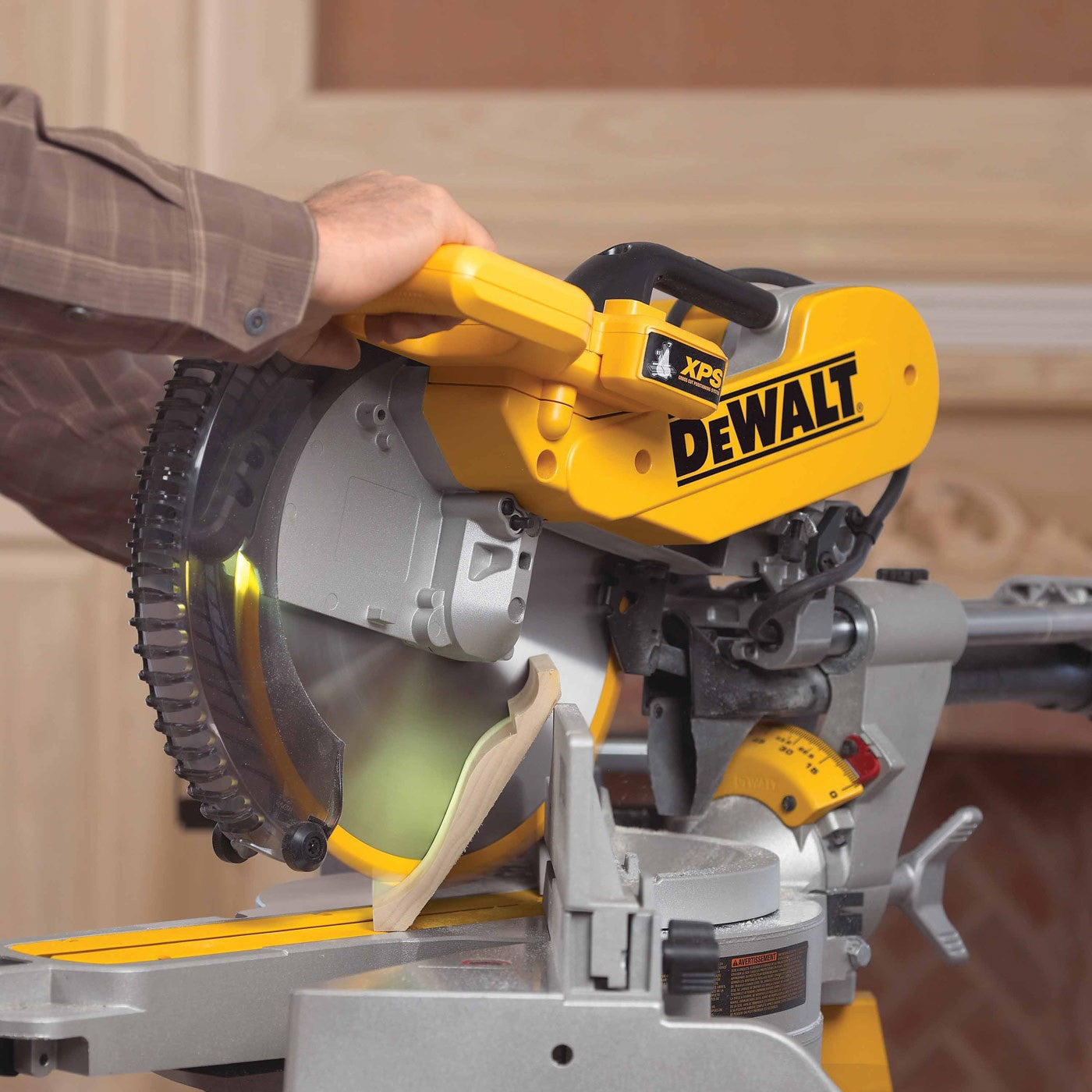

- Tall sliding fences support crown molding up to 7-1/2" nested and base molding up to 6-3/4" vertically
- Against the fence while easily sliding out of the way for bevel cuts
- Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°
- Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60° to the right and 50° to the left providing increased capacity

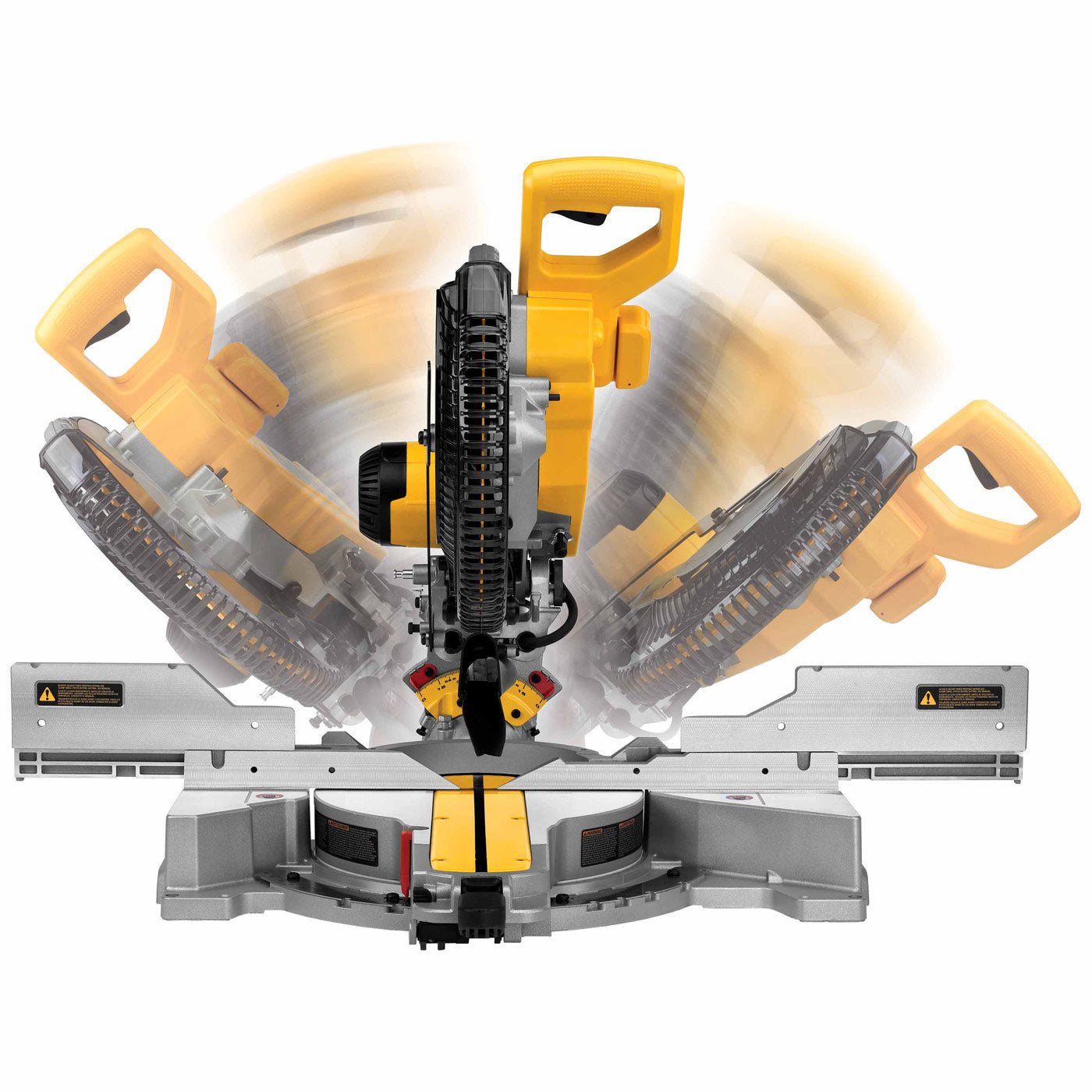

- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design (56 lbs.) allows for easy transport and storage
- Cam lock miter handle with detent override deliver quick and accurate miter angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Precise miter system and machined base fence support optimize durability and cutting accuracy
DeWalt DWS780 Specifications
| Blade Diameter: | 12" |
| Amps: | 15 Amps |
| No Load Speed: | 3800 rpm |
| Vertical Capacity (Baseboard Against Fence): | 6-3/4" |
| Vertical Capacity (Crown Molding Vertically Nested): | 7-1/2" |
| Horizontal Capacity (Baseboard Lying Flat): | 16" |
| Horizontal Capacity (Crown Molding Lying Flat): | 13-3/4" |
| 45° Bevel Cut Capacity (dimensional lumber): | 2x14 (2x16 with back fence) |
| 90° Cross-Cut Capacity (dimensional lumber): | 2x14 (2x16 with back fence) |
| 90° Cross-Cut Capacity (Max Width): | 16" |
| 45° Miter Cut Capacity (Max Height): | 2x12 |
| 45° Miter Cut Capacity (Max Width): | 2x12 |
| Tool Weight: | 56lbs |
| Shipping Weight: | 66lbs |
