At a Glance
Voltage
240 V
Air Flow
16.1 CFM
Max PSI
155 PSI
Tank Capacity
80 gal
Motor Horsepower
4.7 HP
Sold As
Individual
For Use With
Air Compressor
Color
Hi-Vis Yellow
Description
Description
FEATURES:
• Made In The USA
• Color: Dewalt Trademark Yellow
• Size: Large
SPECIFICATIONS:
• Tank Size: 80 Gallon
• Horse Power: 4.7 Hp
• Voltage: 240
• Engine Type: 1 phase Induction
• Drive Type: Belt Drive
• Air Consumption: 16.1 SCFM @ 40 PSI/ 14.0 SCFM @ 90 PSI
• Max PSI: 155 PSI
• Lubrication: Oil Lubricated
• Manufacturer Warranty: 2 Year Pump, 1 Year Other Parts
• Single or 2 Stage: Single

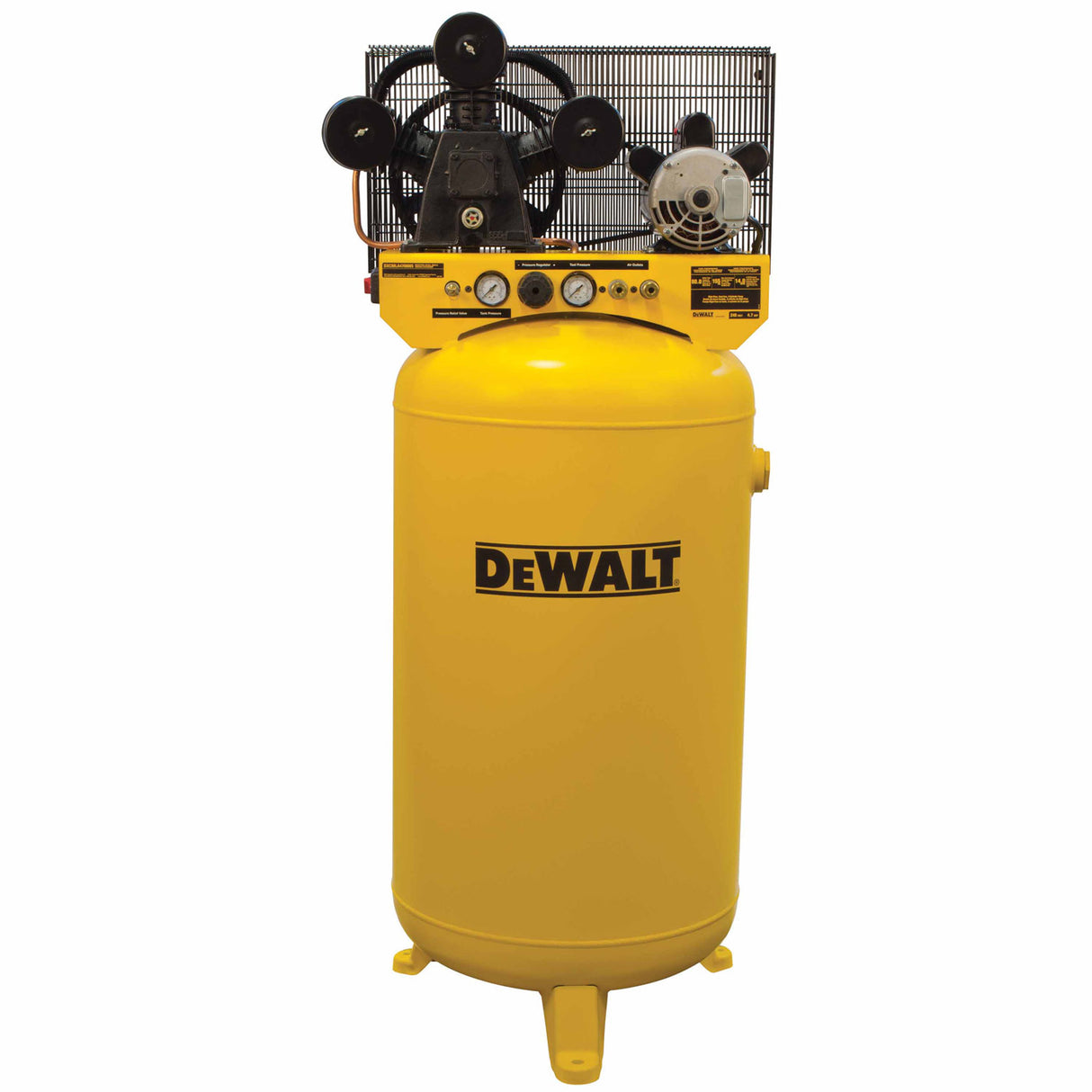

High air flow, single stage – 14 CFM @ 90 PSI~Cast iron, three cylinder, oil lubricated pump features~One-piece cast iron crankcase~Full cast iron cylinder body~Durable Swedish stainless steel flex leaf valves~Oil level sight glass~Easily accessible oil fill~12” cast iron balanced flywheel~Large intake filter/silencers~155 PSI max pressure for optimum tool performance~Integrated control panel includes~Tank and working pressure gauges~Air flow regulator~Two quick connect air outlets~Pressure relief valve~Large capacity, 80 gallon ASME* air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc~Full metal belt guard~Shipped with synthetic oil for optimum performance and long life~Supported by our Toll Free Customer Help Line
Toolup Part # :
313924
