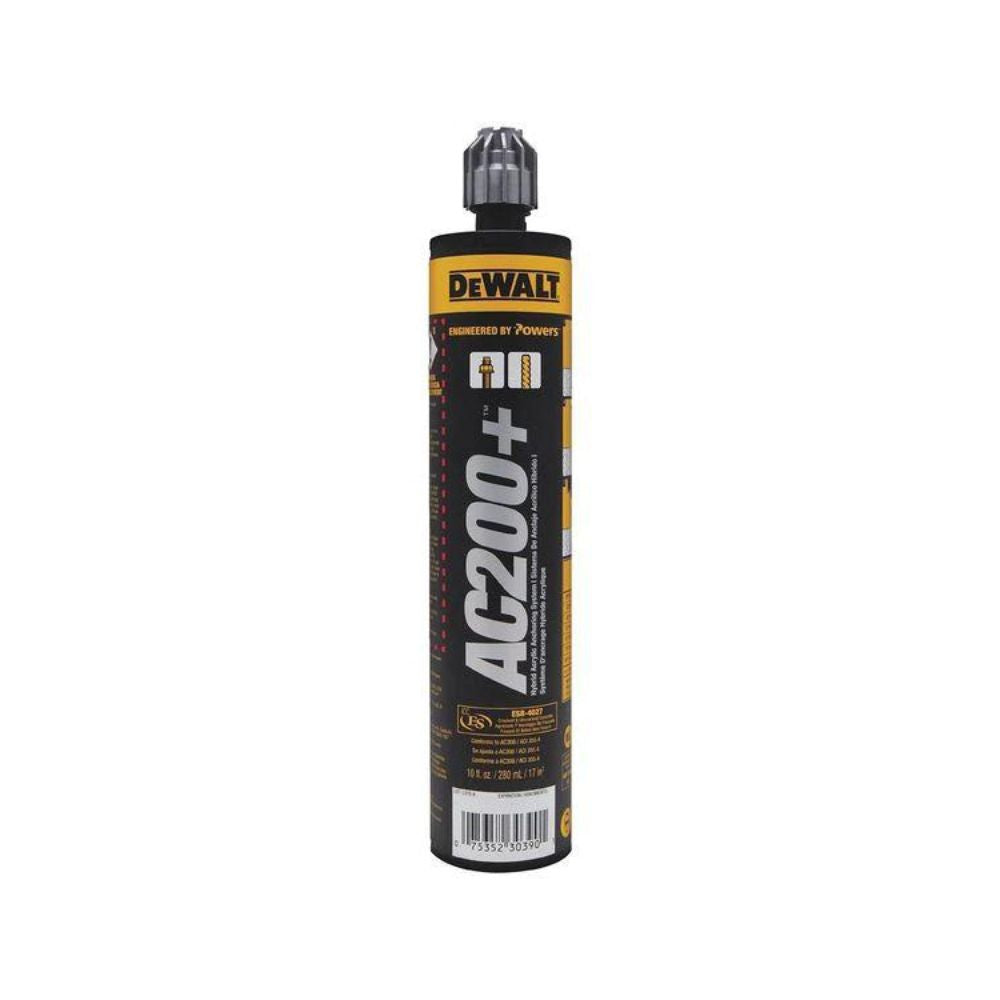

DeWalt PFC1271050 10 Oz AC200+ Acrylic Injection Adhesive Quik-Shot Cartridge
$33.22
$44.18
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
DeWalt PFC1271050 Description
The AC200+ is a two-component, high strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The AC200+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base materials and for post-installed reinforcing bar connections.
DeWalt PFC1271050 Includes
- (1) Adhesive Anchoring System
- (1) Nozzle
DeWalt PFC1271050 Features
- Designed for use with threaded rod and reinforcing bar hardware elements
- Cartridge design allows for multiple uses using extra mixing nozzles
- Evaluated and recognized for long term and short term loading
- Evaluated for installation and use in dry and wet concrete
- Qualified for seismic (earthquake) and wind loading
- Evaluated and recognized for freeze/thaw performance
- Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
- Bonding threaded rod and reinforcing bar into hardened concrete
- Fast curing system which can be installed in a wide range of base material temperatures; qualified for structural applications in concrete and masonry as low as 14ºF (-10ºC)
DeWalt PFC1271050 Specifications
| Container Size | 10 oz |
| Material | Acrylic |
| Min. Embedment | 2-3/8" |
| Min. Hole Depth | 2-3/8" |
| Mixing Ratio | 1 |
| Rod Diameter | 3/8" |
| Begins to Harden | 3 Minutes |
| Curing Time | 30 Minutes |
| Container Type | Cartridge |
| Ultimate Tension in 4000 PSI Concrete (Lb.) | 15655 |
| Temp. Range (F) | 23 Degrees to 110 Degrees |
| Application | Rebar Doweling, Threaded Rod Bonding |
| Characteristics | Can Be Installed In Wet and Dry Concrete, Fast Curing |
| Mixing Steps | Resin and Hardener are Dispensed and Mixed Simultaneously Through the Mixing Nozzle |
| Meets/Exceeds | 2009 IBC, 2009 IRC, 2012 IBC, 2012 IRC, 2015 IBC, 2015 IRC, ACI 318-11/08, ACI 318-14, ACI 355.4, ASTM E 488, ESR-4027, ICC-ES AC308, NSF/ANSI 61 |
