Dewalt PFM3521438 1/4"-3/8" Multi-Thread Bang-It- Metal Deck Insert- White
NOTE: This item is ineligible for free shipping
Description
Description
DeWalt PFM3521438 Description

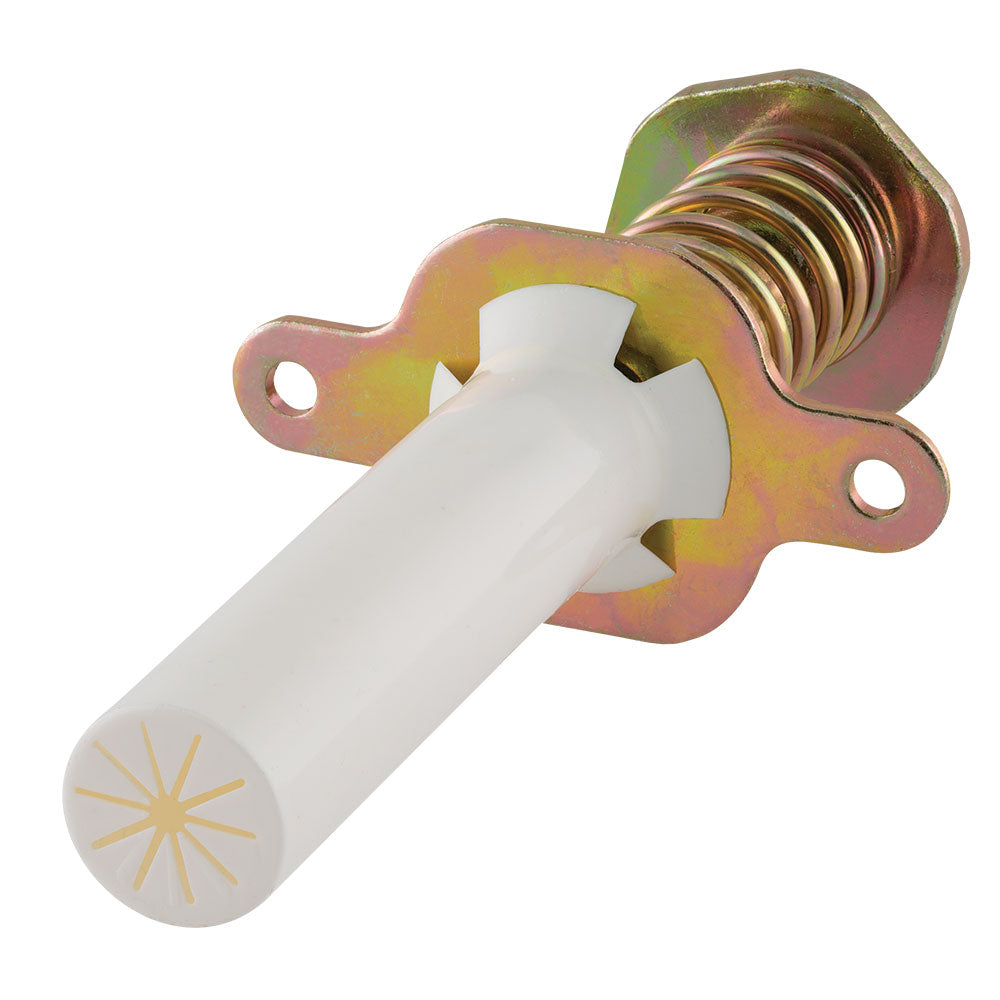

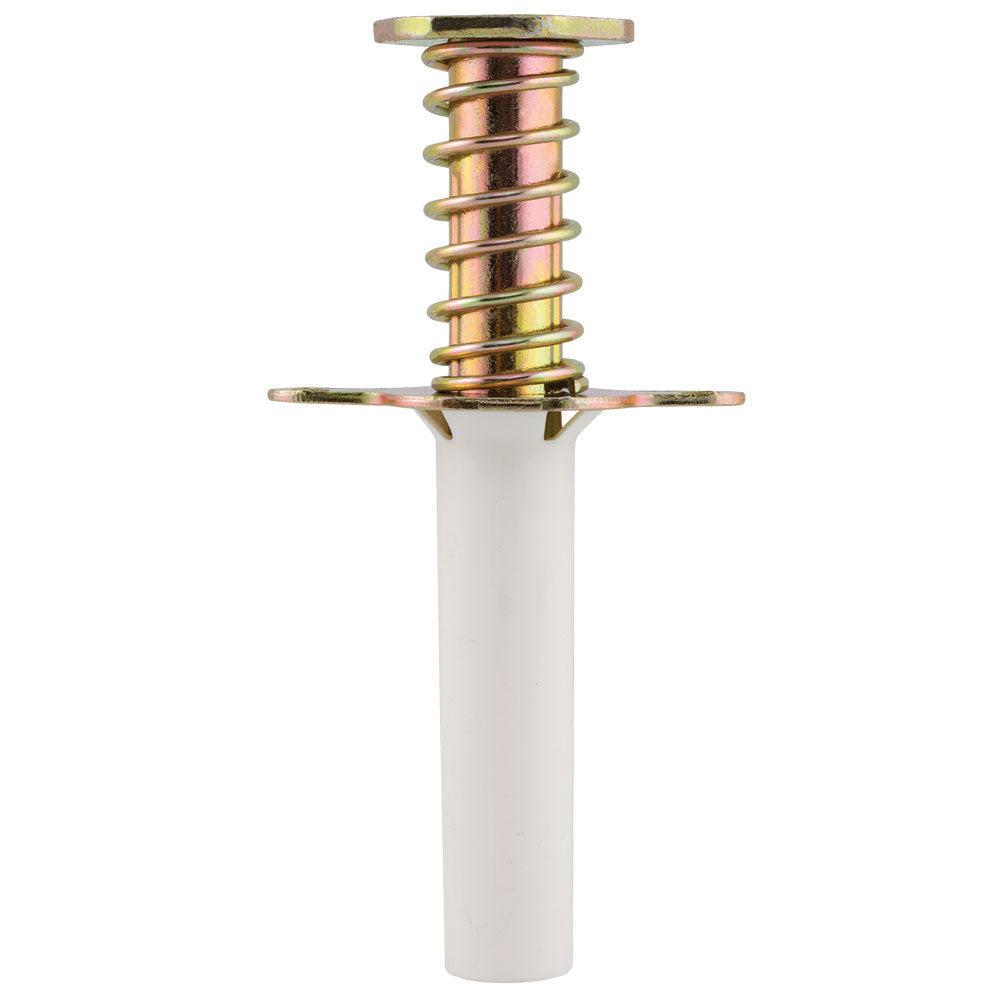

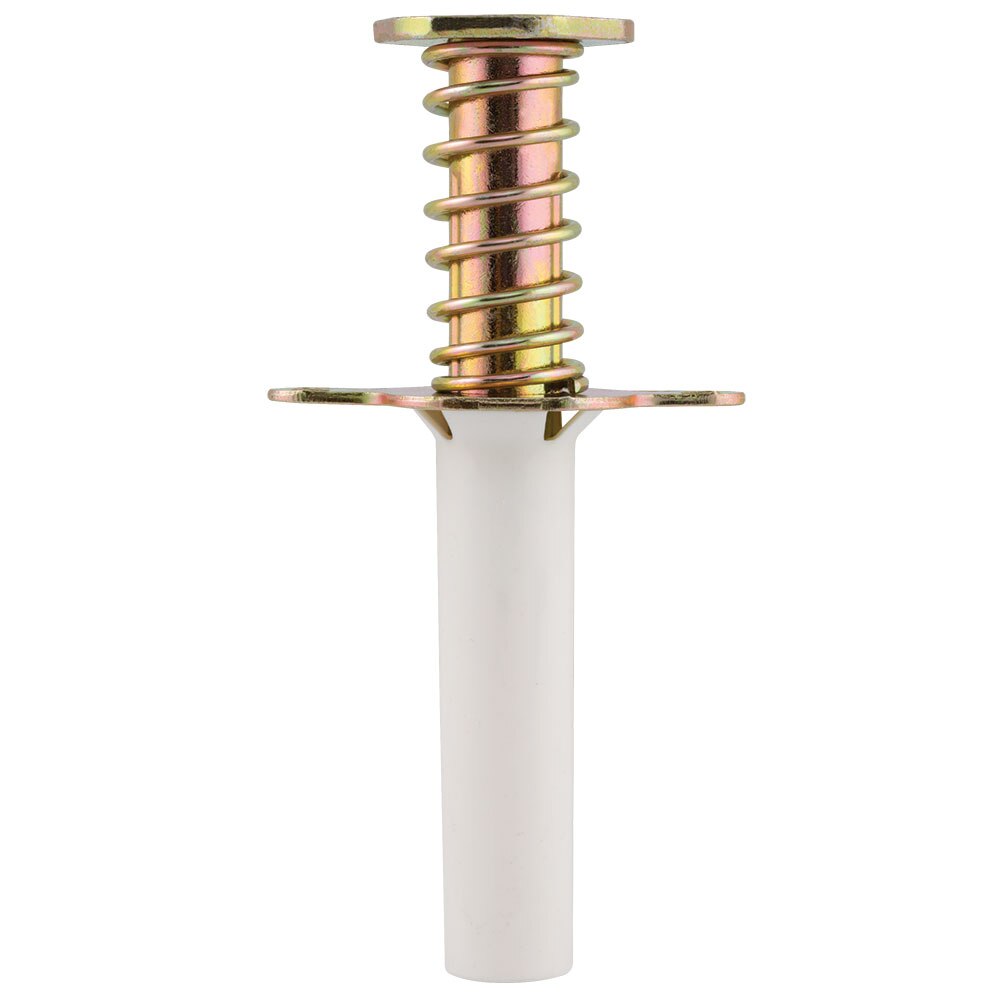

Bang-It+ concrete inserts are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floors or roof slabs. Bang-It+ concrete inserts are specifically designed to provide hangar attachments for mechanical, electrical, plumbing (MEP) and fire protection. After installation, the protective sleeve of the insert protrudes below the surface of the deck. The sleeves are color coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4" to 3/4" in diameter, including 1/4-3/8" and 3/8-1/2" multi version. The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking or losing the insert location. A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being installed.
DeWalt PFM3521438 Includes
- (100) Bang-It Concrete Inserts
DeWalt PFM3521438 Features
- Fast and simple to install, low installed cost
- Bang-It+ can be installed in upper and lower steel deck profiles with limited concrete topping thickness (see installation details)
- Insert design allows for full thread engagement
- Color coded by size for simple identification
- Hex head does not rotate when set
- Suitable for seismic and wind loading
DeWalt PFM3521438 Specifications
| Size | 1/4-3/8" |
| Color | White |
| Materials | Carbon Steel and Engineered Plastic |
| Predrilled Hole | 13/16" OR 7/8" |
