Description
Description
Diamond Products 86523 Description

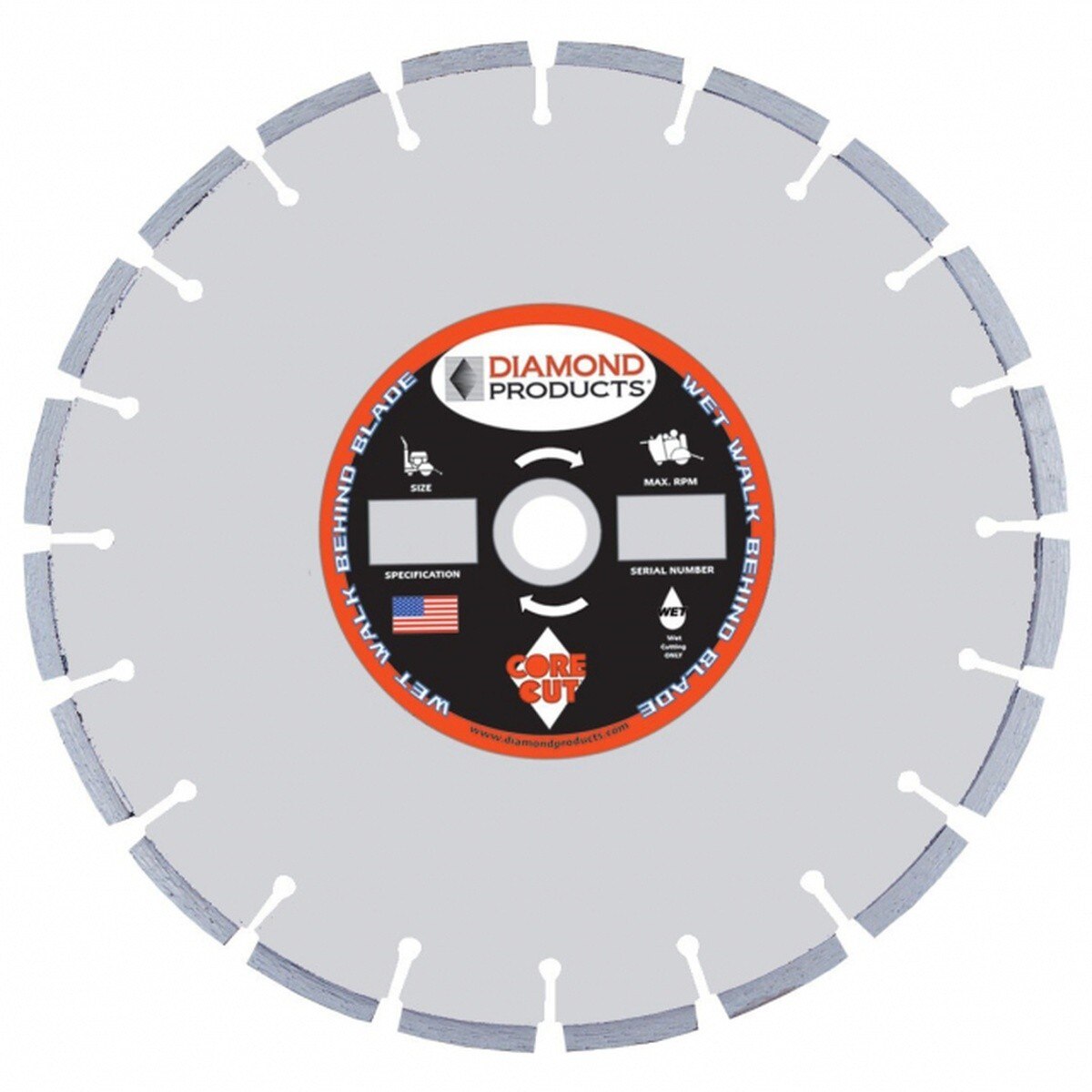

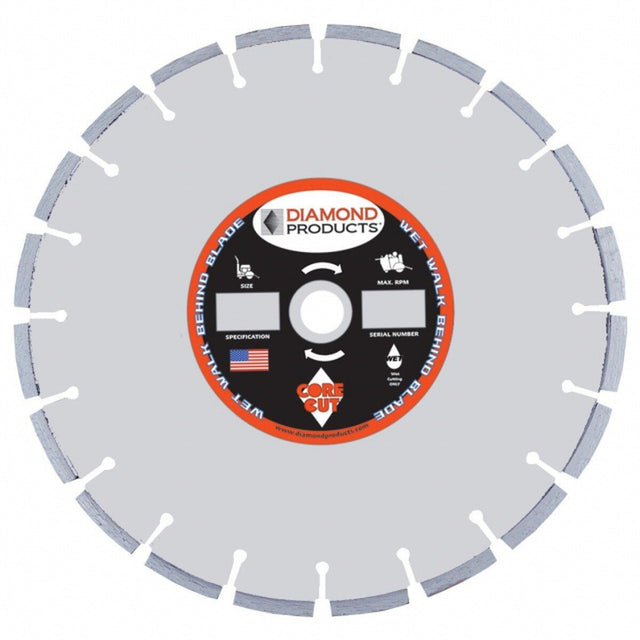

This Super Premium diamond saw blade is designed for wet cutting cured concrete on walk-behind saws. It features a 24 in. diameter with a 0.165 in. blade thickness and is intended to be water-cooled during operation to help maximize cutting performance.
Diamond Products 86523 Includes
- (1) Diamond Products 86523 Super Premium 24 in. x 0.165 in. Diamond Saw Blade for Cured Concrete
Diamond Products 86523 Features
- Super Premium diamond blade for cured concrete cutting
- For use on walk-behind saws
- Wet cutting design, water required for cooling during cutting
- 24 in. blade diameter with 0.165 in. thickness
- 1 in. arbor
- 0.475 in. segment height
- 0.375 in. diamond depth
- Maximum cutting depth: 9-3/4 in.
- Recommended operating speed: 1950 RPM
- Maximum safe speed: 2250 RPM
- Bond specification: C51BSPM
- Model: CSP24165M
Diamond Products 86523 Specifications
| Blade Diameter | 24 in. |
| Blade Thickness | 0.165 in. |
| Arbor Size | 1 in. |
| Diamond Depth | 0.375 in. |
| Segment Height | 0.475 in. |
| Maximum Cutting Depth | 9-3/4 in. |
| Recommended Operating Speed | 1950 RPM |
| Maximum Safe Speed | 2250 RPM |
| Bond Specification | C51BSPM |
| Model Number | CSP24165M |
| Application | Cured concrete |
| Cutting Method | Wet cutting (water required) |
Toolup Part # :
118433
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
