Dixon | SKU:
125-A-BR

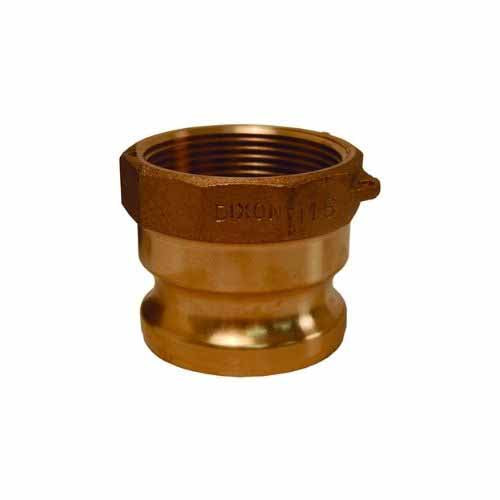

Dixon 125-A-BR 1-1/4" Brass FNPT x Male Adapter
$42.38
$62.03
Unit price
/
Unavailable
Description
Description
Dixon 125-A-BR Description
Couplers are supplied standard with a Buna-N gasket. Other gasket types are available. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature (21°C) with standard Buna-N Seal installed.
Dixon 125-A-BR Includes
- (1) Type A Adapter x Female NPT
Dixon 125-A-BR Features
- Precision machined to rigid tolerances
- To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Dixon 125-A-BR Specifications
| Maximum Operating Pressure | 250 PSI |
| Size | 1-1/4" |
| Material | Brass |
| Type | Type A |
| End Style | Male Adapter x FNPT |
| Fitting/Connector Type | Adapter |
| Domestic/Import | Domestic |
