Dixon | SKU:
2CMF1-B-E

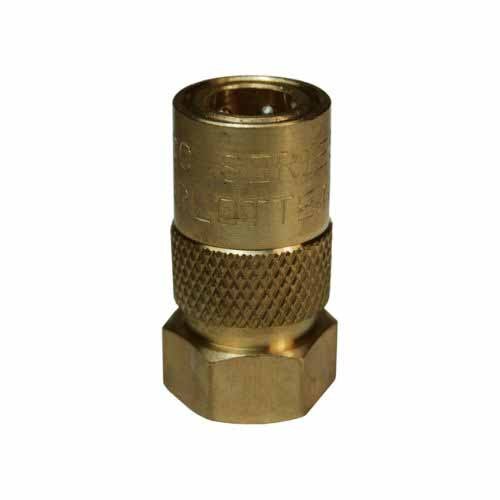

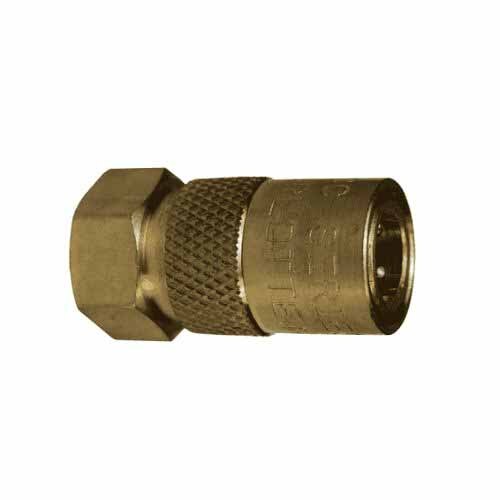

Dixon 2CMF1-B-E 1/4 MOLD COUP, 1/8 F-NPTF BRASS, UNVALVED
$12.20
$16.38
Unit price
/
Unavailable
Description
Description
Dixon 2CMF1-B-E Description
Dixon Quick Disconnect Couplings - CM-Series Hydraulic Couplings - CM-Series Industrial Mold Interchange Unvalved Coupler (Female Threads)
Dixon 2CMF1-B-E Includes
- (1) Coupler
Dixon 2CMF1-B-E Features
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Silicone gaskets are standard
- Rated pressure for connected Brass Unvalved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 10,000 PSI (700 bar) Burst
- Rated pressure for connected Brass Unvalved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 10,700 PSI (750 bar) Burst
Dixon 2CMF1-B-E Specifications
| Material | Brass |
| Thread | Female NPTF |
| Body Size | 1/4" |
| Thread Size | 1/8"-27 |
| Hex | 9/16" |
| Length | 1.35" |
| Temperature Range | -90°F to +400°F (-68°C to +205°C) |
| Valve Type | Unvalved |
| Country of Origin | USA |
