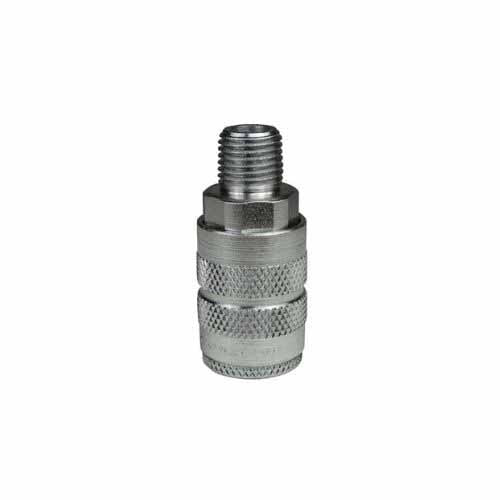

Dixon 2FM2 Description
Industrial interchange brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.
Dixon 2FM2 Includes
- (1) Coupler
Dixon 2FM2 Features
- Machined components are manufactured using solid bar stock.
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel sleeve and steel tubular valve
- Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
- Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
Dixon 2FM2 Specifications
| Material | Steel |
| Thread | NPTF |
| Body Size | 1/4" |
| Thread Size | 1/4" - 18 NPTF |
| Hex | 3/4" |
| Length | 2.04" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure | 500 PSI |
| Maximum OD | 7/8" |
| Country of Origin | USA |
