Dixon | SKU:
2UF2-B

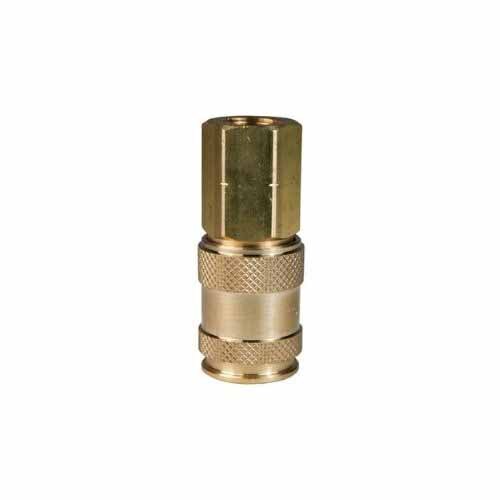

Dixon 2UF2-B 1/4 Universal Coup, 1/4 F-NPTF Brass
$21.77
$32.65
Unit price
/
Unavailable
Description
Description
Dixon 2UF2-B Description
Dixon Quick Disconnect Couplings - U-Series Pneumatic Couplings - U-Series Automatic Universal Coupler (Female Threads)
Dixon 2UF2-B Includes
- (1) Coupler
Dixon 2UF2-B Features
- Machined components are manufactured using solid bar stock
- Stainless steel springs
- Carbon steel balls and retaining rings
- Valve components are machined from solid brass bar stock
- Nitrile (Buna-N) seals are standard
- 1/4 in body
- Interchangeable to ISO7241 series 'B'
- Compatible with Parker 60-series steam couplings
- Rated pressure when connected with steel DF plug: 2800 PSI burst
- Rated pressure when connected with steel CJ plug: 9500 PSI burst
- 6400 PSI burst rated pressure when connected with steel J plug
- Rated pressure when connected with steel m plug 4300 PSI burst
Dixon 2UF2-B Specifications
| Material | Brass |
| Thread | NPT |
| Body Size | 1/4" |
| Thread Size | 1/4" - 18 NPT |
| Hex | 3/4" |
| Length | 2.32" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure | 300 PSI (20 bar) |
| Length | 2.32" |
| Maximum OD | 0.92" |
