At a Glance
Thread Size
1/4 in
Thread Type
NPT
Max PSI
300 PSI
Fitting Size
1/4 in
Fitting Type
Coupling
Material
Brass
Sold As
Individual
Color
Gold
Description
Description

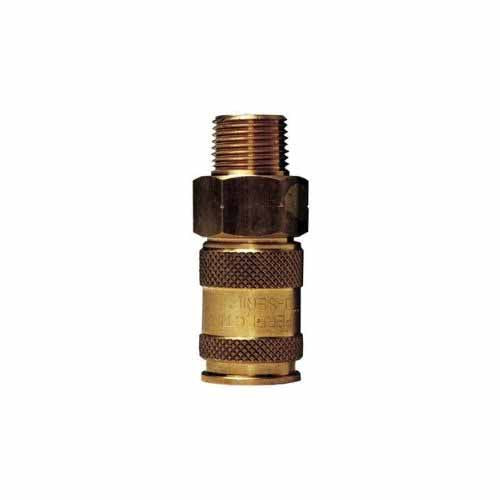

Dixon 2UM2-B Description
Dixon Quick Disconnect Couplings - U-Series Pneumatic Couplings - U-Series Automatic Universal Coupler (Male Threads)
Dixon 2UM2-B Includes
- (1) Coupler
Dixon 2UM2-B Features
- Machined components are manufactured using solid bar stock
- Stainless steel springs
- Carbon steel balls and retaining rings
- Valve components are machined from solid brass bar stock
- Nitrile (Buna-N) seals are standard
- 1/4 in body
- Compatible with 2U-Series 6-in-1 (ARO 210, Industrial, Truflate, Lincoln, Italian, and CEJN 410), Parker UC-series, Hansen Auto-Flo 23 and Coilhose series UC
- Rated pressure when connected with steel DF plug: 2800 PSI burst
Dixon 2UM2-B Specifications
| Material | Brass |
| Thread | NPT |
| Body Size | 1/4" |
| Thread Size | 1/4" - 18 NPT |
| Hex | 3/4" |
| Length | 2.44" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure | 300 PSI (20 bar) |
| Length | 2.44" |
| Maximum OD | 0.92" |
| Country of Origin | China |
Toolup Part # :
670872
