At a Glance
Thread Size
3/8 in
Thread Type
NPT
Max PSI
500 PSI
Fitting Size
3/8 in
Fitting Type
Coupling
Material
Steel
Sold As
Individual
Description
Description

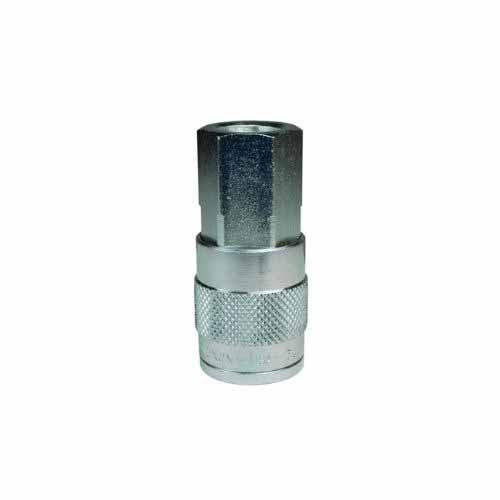

Dixon 3JF3 Description
Dixon quick disconnect couplings - J-Series pneumatic couplings - J-Series truflate interchange coupler (Female Threads)
Dixon 3JF3 Includes
- (1) Coupler
Dixon 3JF3 Features
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome
- Steel sleeve and steel tubular valve
Dixon 3JF3 Specifications
| Size | 3/8" |
| Female Thread | 3/8"-18 NPTF |
| Material | Steel |
| Length | 2.48" |
| Max OD | 1.06" |
| Hex | 7/8" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Pressure Rating | 500 psi |
Toolup Part # :
671267
