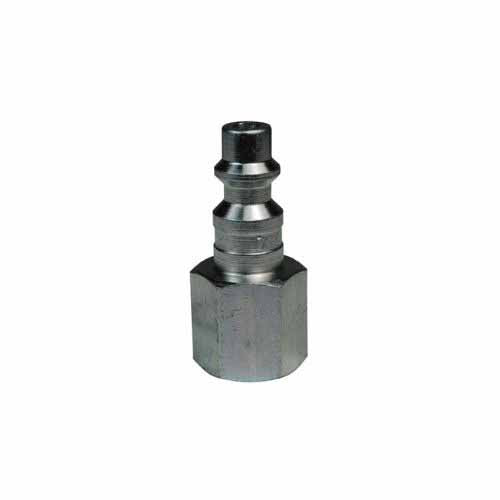

Dixon D2F2 Description
Industrial interchange brass quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.
Dixon D2F2 Includes
- (1) Nipple
Dixon D2F2 Features
- Machined components are manufactured using solid bar stock.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Dixon D2F2 Specifications
| Size | 1/4" |
| Female Thread | 1/4"-18 NPTF |
| Material | Steel |
| Length | 1.66" |
| Max. OD | 0.79" |
| Hex Size | 11/16" |
| Working Pressure | 500 psi |
| Working Pressure Range | 351 to 700 psi |
| Temperature Range | -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) |
