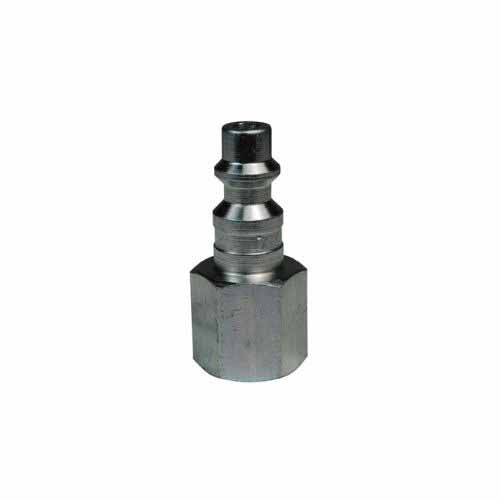

Dixon D3F2 Description
Industrial interchange steel quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Steel couplings are hard and resilient with more damage resistance than softer metals and a wide working temperature range.
Dixon D3F2 Includes
- (1) Coupler Plug
Dixon D3F2 Features
- Machined components are manufactured using solid bar stock.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 15,500 PSI (1,070 bar) Burst
- Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 11,500 PSI (790 bar) Burst
- Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 19,500 PSI (1,345 bar) Burst
Dixon D3F2 Specifications
| Material | Steel |
| Body Size | 3/8" |
| Thread Size | 1/4" |
| Length | 1.78" |
| Hex | 11/16" |
| Maximum OD | 0.79" |
| Thread | NPTF |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure | 500 psi |
