At a Glance
Thread Size
1/4 in
Thread Type
NPT
Max PSI
500 PSI
Fitting Size
3/8 in
Fitting Type
Plug
Material
Steel
Sold As
Individual
Description
Description

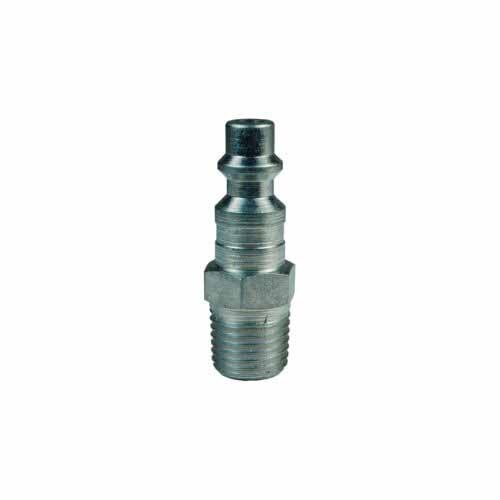

Dixon D3M2 Description
Dixon quick disconnect couplings - DF-Series pneumatic couplings - DF-Series industrial interchange nipple (Male Threads)
Dixon D3M2 Includes
- (1) Plug
Dixon D3M2 Features
- Machined components are manufactured using solid bar stock.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Dixon D3M2 Specifications
| Size | 3/8" |
| Male Thread | 1/4"-18 NPTF |
| Material | Steel |
| Length | 1.81" |
| Max OD | 0.79" |
| Hex | 11/16" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Pressure Rating | 500 psi |
| End Style | Quick-Disconnect Plug x MNPT |
| Type | Industrial Interchange |
Toolup Part # :
671270
