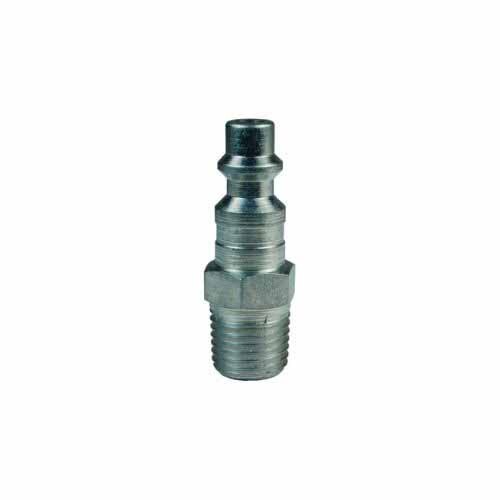

Dixon D4M4 Description
Dixon quick disconnect couplings - DF-Series pneumatic couplings - DF-Series industrial interchange nipple (Male Threads)
Dixon D4M4 Includes
- (1) Plug
Dixon D4M4 Features
- Machined components are manufactured using solid bar stock.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Dixon D4M4 Specifications
| Size | 1/2" |
| Male Thread | 1/2"-14 NPTF |
| Material | Steel |
| Length | 2.34" |
| Max OD | 1.01" |
| Hex | 7/8" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Pressure Rating | 500 psi |
