At a Glance
Thread Size
1/4 in
Thread Type
NPT
Max PSI
300 PSI
Fitting Size
1/4 in
Fitting Type
Plug
Material
Steel
Sold As
Individual
Description
Description

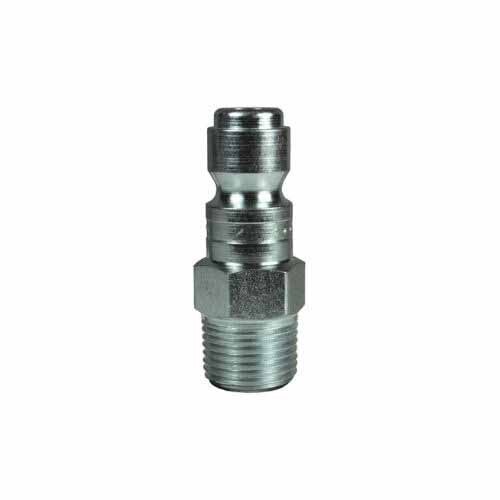

Dixon DCP1 Description
Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Dixon DCP1 Includes
- (1) Plug
Dixon DCP1 Features
- Male pipe thread
- Rated to 300 PSI.
- Semi-automatic- pull sleeve to connect
- Couplers shut-off when disconnected
Dixon DCP1 Specifications
| Body Size | 1/4" |
| Male NPT | 1/4" |
| Material | Steel |
| Length | 1.59" |
| Max. OD | 0.65" |
| Hex Size | 9/16" |
| Pressure Rating | 300 psi |
| Temperature Range | -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) |
Toolup Part # :
671266
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
