Dixon | SKU:
DCP1823

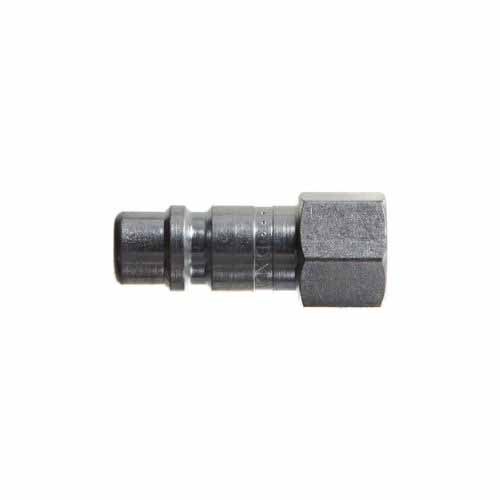

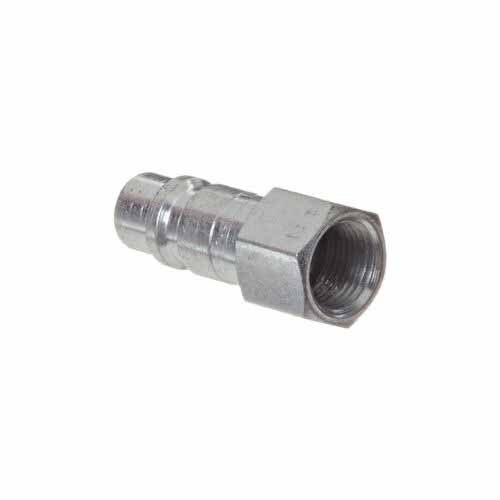

Dixon DCP1823 Air Chief Industrial Fem Plug Steel 1/2" x 3/8" Fem NPT
$12.38
$16.13
Unit price
/
Unavailable
Description
Description
Dixon DCP1823 Description
Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Dixon DCP1823 Includes
- (1) Plug
Dixon DCP1823 Features
- Air chief industrial couplers are the popular industrial design and will interchange with many other makes
- 150 cfm at 100 PSI flow rate
- 1/2 in body
- Interchanges with MIL Spec. MIL-C-4109F/A-A-59439.
- For air service only
Dixon DCP1823 Specifications
| Material | Steel |
| Body Size | 1/2" |
| Female NPT | 3/8" |
| Flow Rating at 100 PSI | 150 CFM |
| Min/Max Temperature Range | -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) |
| PSI | 300 (20.41 bar) |
