Dixon | SKU:
DCP2

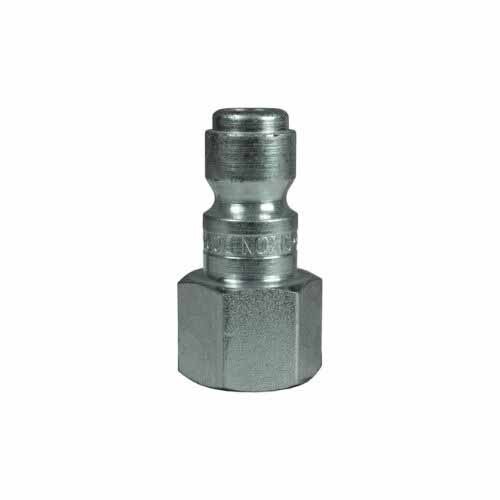

Dixon DCP2 Automotive Quick-Connect Plug Steel 1/4" Body x 1/4" Fem NPT
$6.71
Unit price
/
Unavailable
Description
Description
Dixon DCP2 Description
Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Dixon DCP2 Includes
- (1) Plug
Dixon DCP2 Features
- Female pipe thread
- Rated to 300 PSI.
- Semi-automatic- pull sleeve to connect
- Couplers shut-off when disconnected
Dixon DCP2 Specifications
| Body Size | 1/4" |
| Female NPT | 1/4" |
| Material | Steel |
| Length | 1.56" |
| Max. OD | 0.79" |
| Hex Size | 11/16" |
| Flow Rating at 100 PSI | 37 CFM |
| Min/Max Temperature | -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) |
| PSI | 300 (20.41 bar) |
