Dixon | SKU:
DCP7

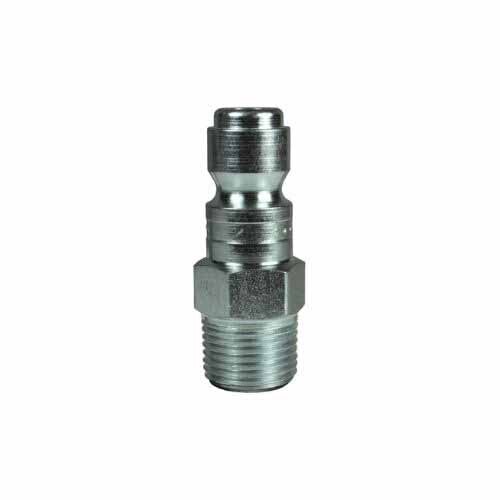

Dixon DCP7 Automotive Quick-Connect Plug Steel 3/8" Body x 1/4" Male NPT
$6.71
Unit price
/
Unavailable
Description
Description
Dixon DCP7 Description
Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Dixon DCP7 Includes
- (1) Plug
Dixon DCP7 Features
- Male pipe thread
- Rated to 300 PSI.
- Semi-automatic- pull sleeve to connect
- Couplers shut-off when disconnected
Dixon DCP7 Specifications
| Material | Steel |
| Body Size | 3/8" |
| Male NPT | 1/4" |
| PSI | 300 (20.41 bar) |
| Flow Rating at 100 PSI | 70 CFM |
| Min/Max Temperature Range | -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) |
