Description
Description
Eastman 10YE505036B Description

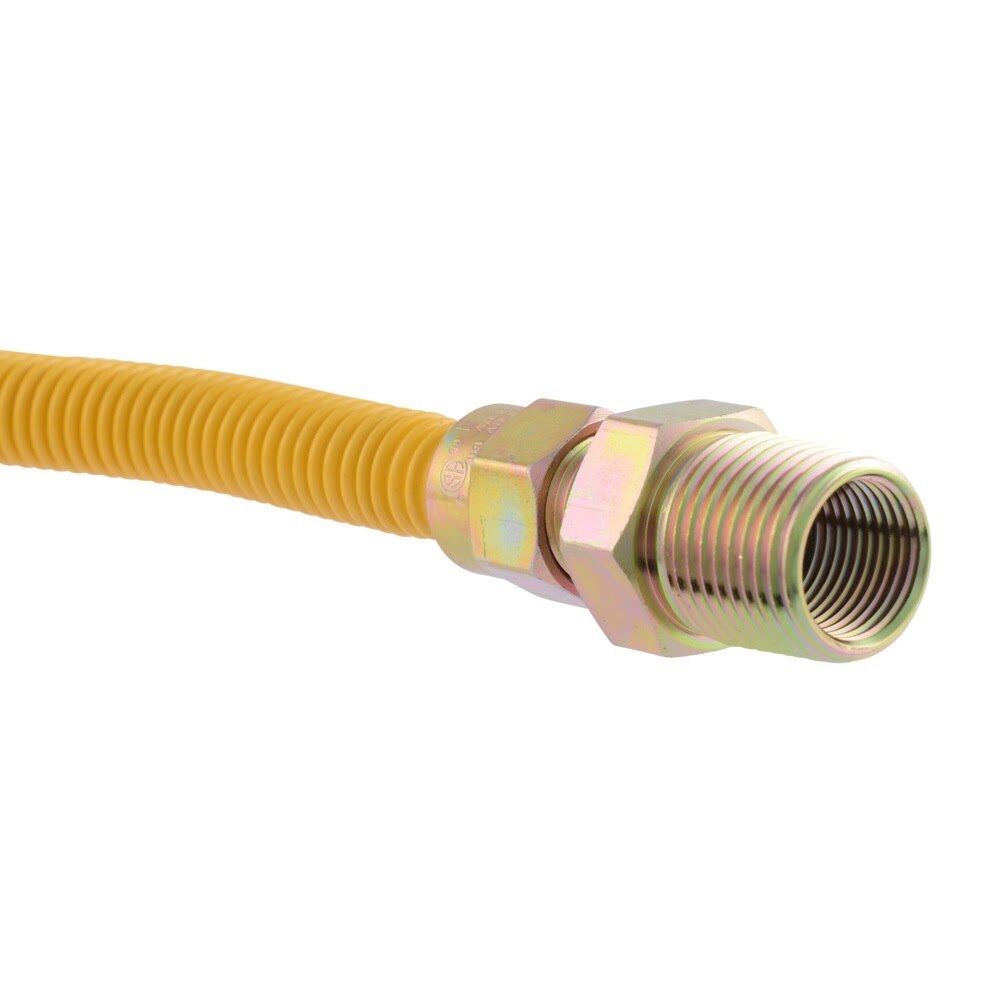

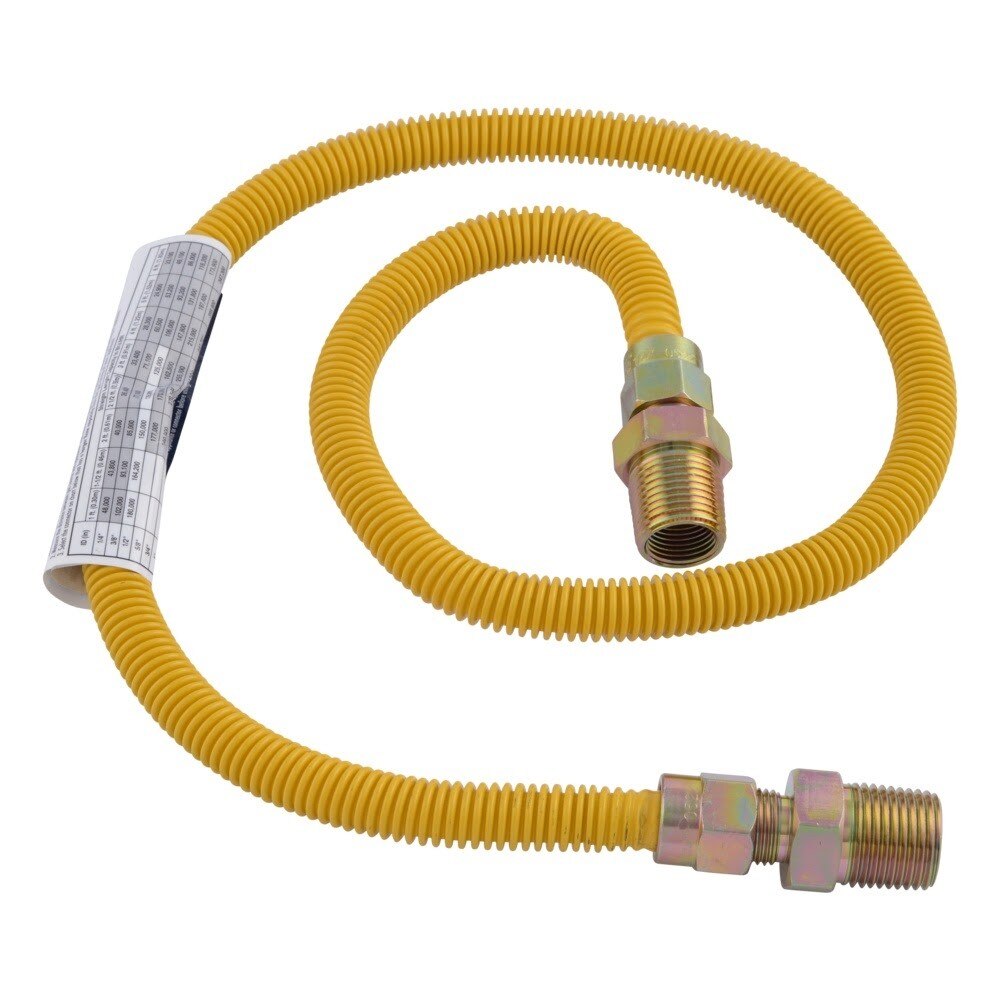

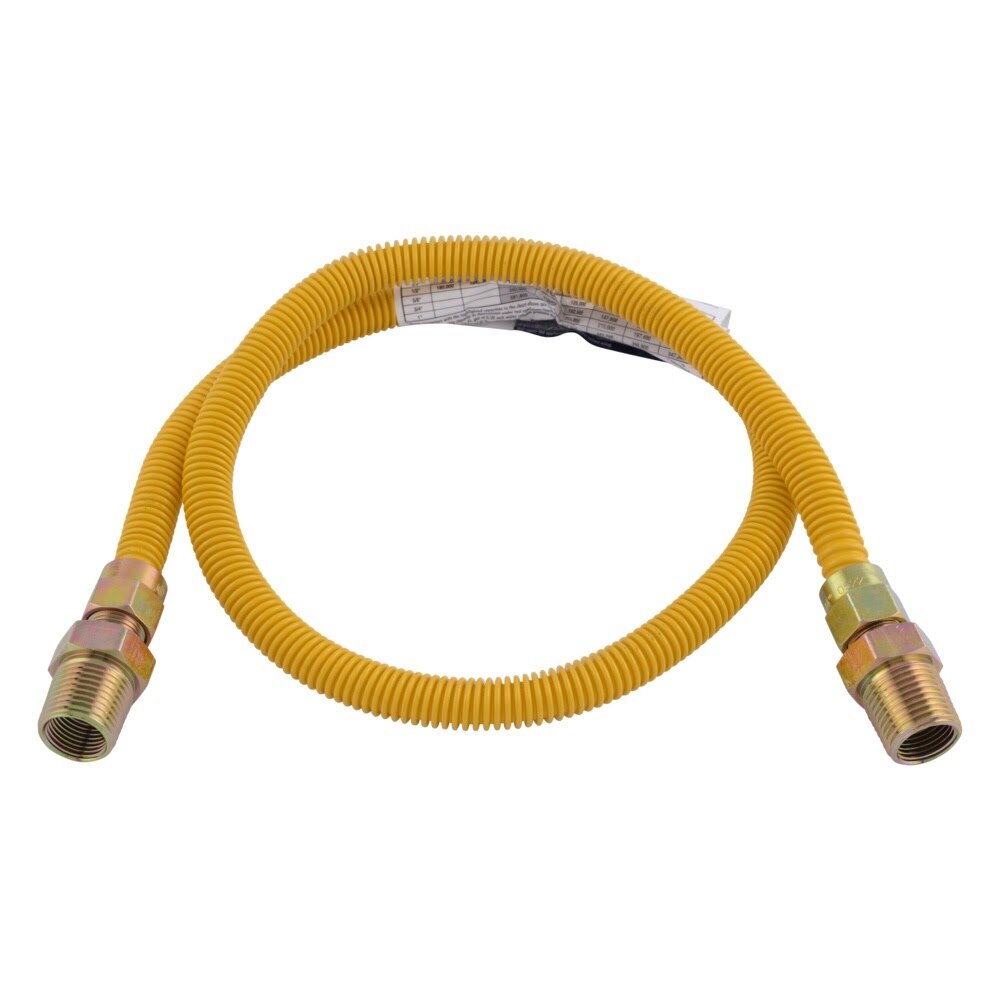

The Eastman 36 in. gas connector is designed for connecting gas logs, space heaters, and other low-usage appliances to a shut-off valve. Its flexible stainless steel construction features a yellow epoxy coating for added resistance to corrosion, stains, and UV exposure, and it is approved for indoor and outdoor use with natural gas or LP applications up to 33,400 BTUs.
Eastman 10YE505036B Includes
- (1) 36 in. 3/8 in. OD yellow stainless steel gas connector
- (2) 1/2 in. MIP tapped 3/8 in. FIP fittings
Eastman 10YE505036B Features
- Designed for gas logs, space heaters, and other low-usage appliances
- Compatible with natural gas and LP applications
- Approved for indoor and outdoor use
- Flexible stainless steel connector with deep corrugations for easier installation
- Yellow epoxy coating helps resist corrosion, chemical stains, and UV exposure
- Rated for appliances up to 33,400 BTUs
- 100% leak tested at the factory
- Includes two 1/2 in. MIP tapped 3/8 in. FIP fittings
Eastman 10YE505036B Specifications
| Type | Gas Connector |
| Material | Stainless Steel |
| Coating | Yellow Epoxy Coated |
| Connector Length | 36 in. |
| Outside Diameter | 3/8 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | MIP |
| Inlet Fitting Size | 1/2 in. |
| Outlet Fitting Size | 1/2 in. |
| Compatible Fuel Type | Natural Gas and LP |
| Maximum BTU Rating | 33,400 BTU |
| Maximum PSI | 0.5 PSI |
| Working Temperature Range | -20 to 150 Degrees F |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Indoor/Outdoor Use | Yes |
| Fitting Material | Zinc |
| Excess Flow Valve | No |
| Warranty | 5-year limited |
| Package Quantity | 1 |
Toolup Part # :
883697
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
