Eastman 10YE505048B Description

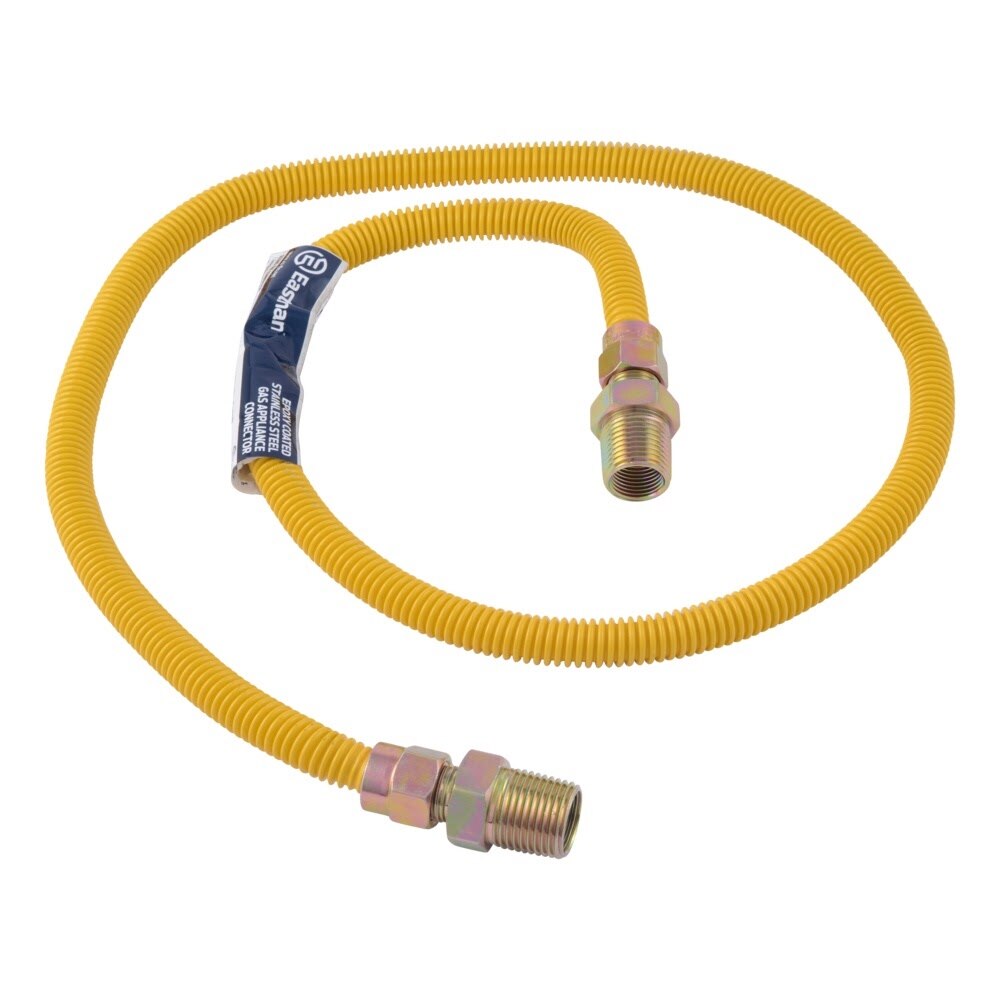

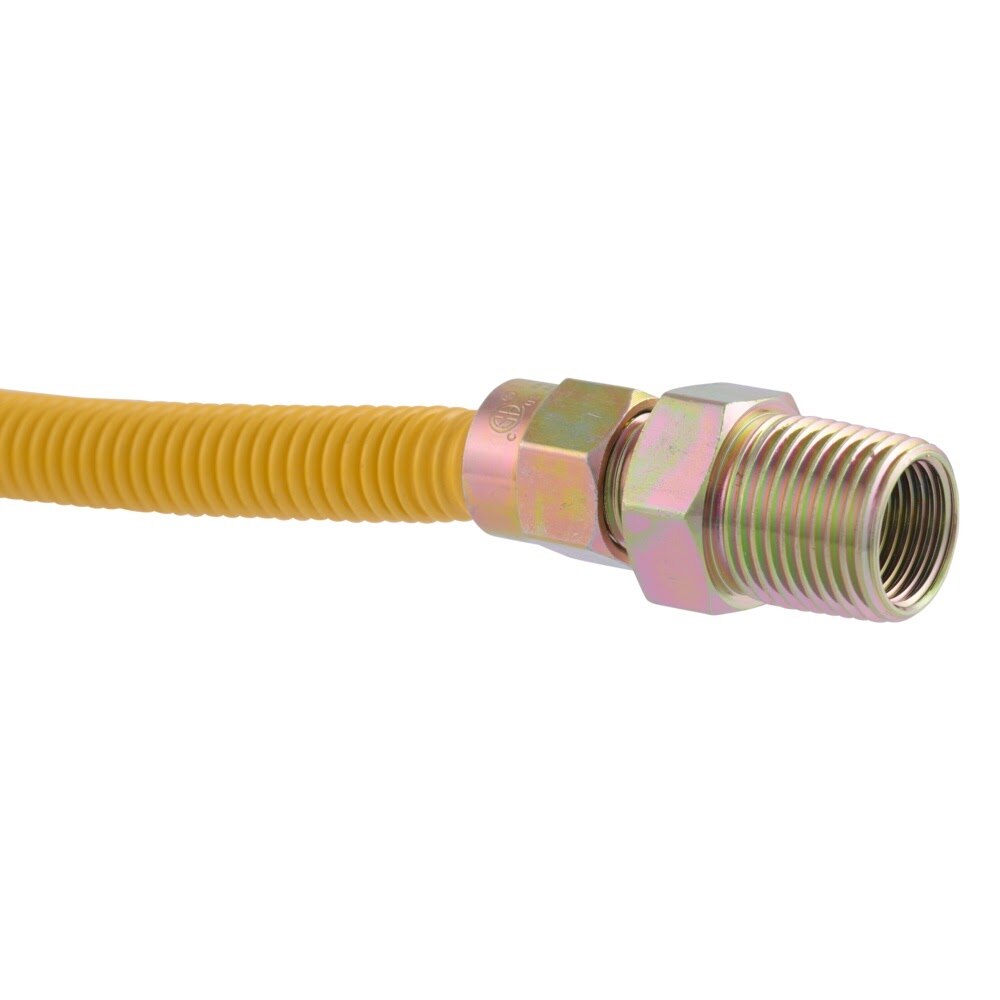

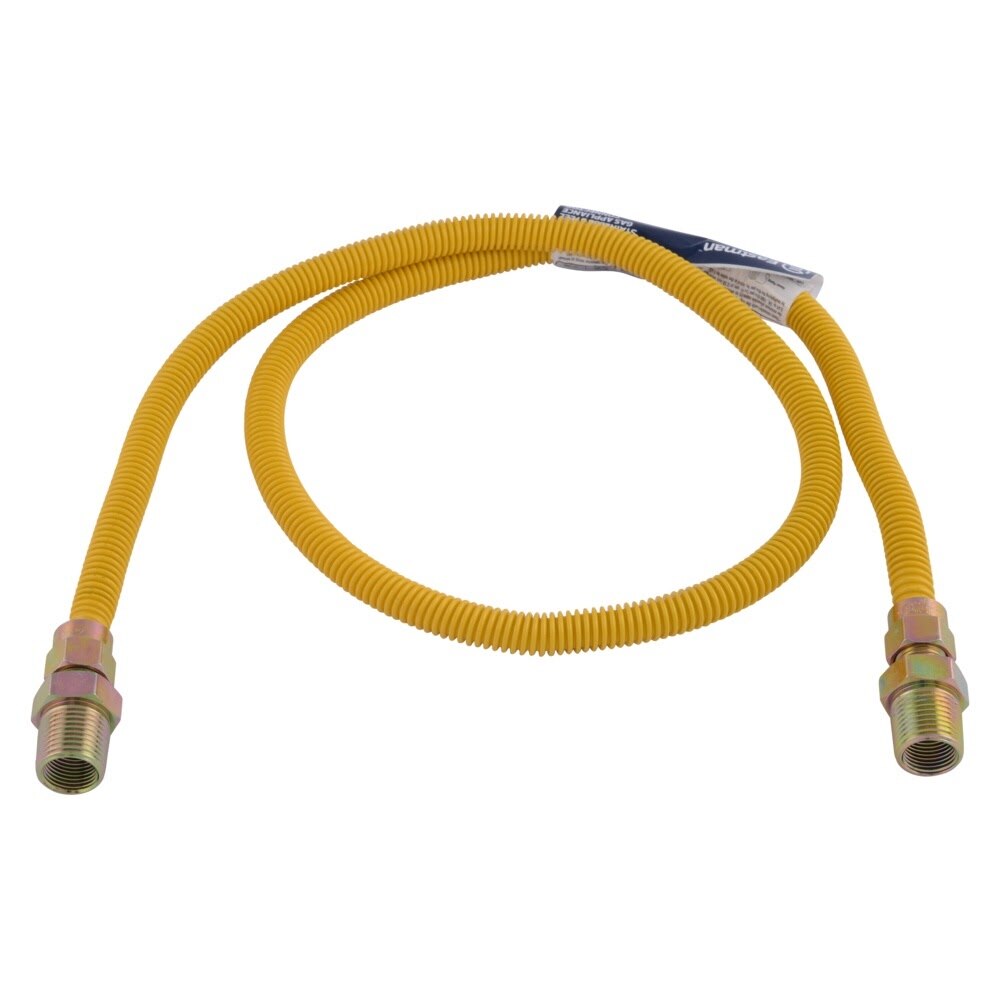

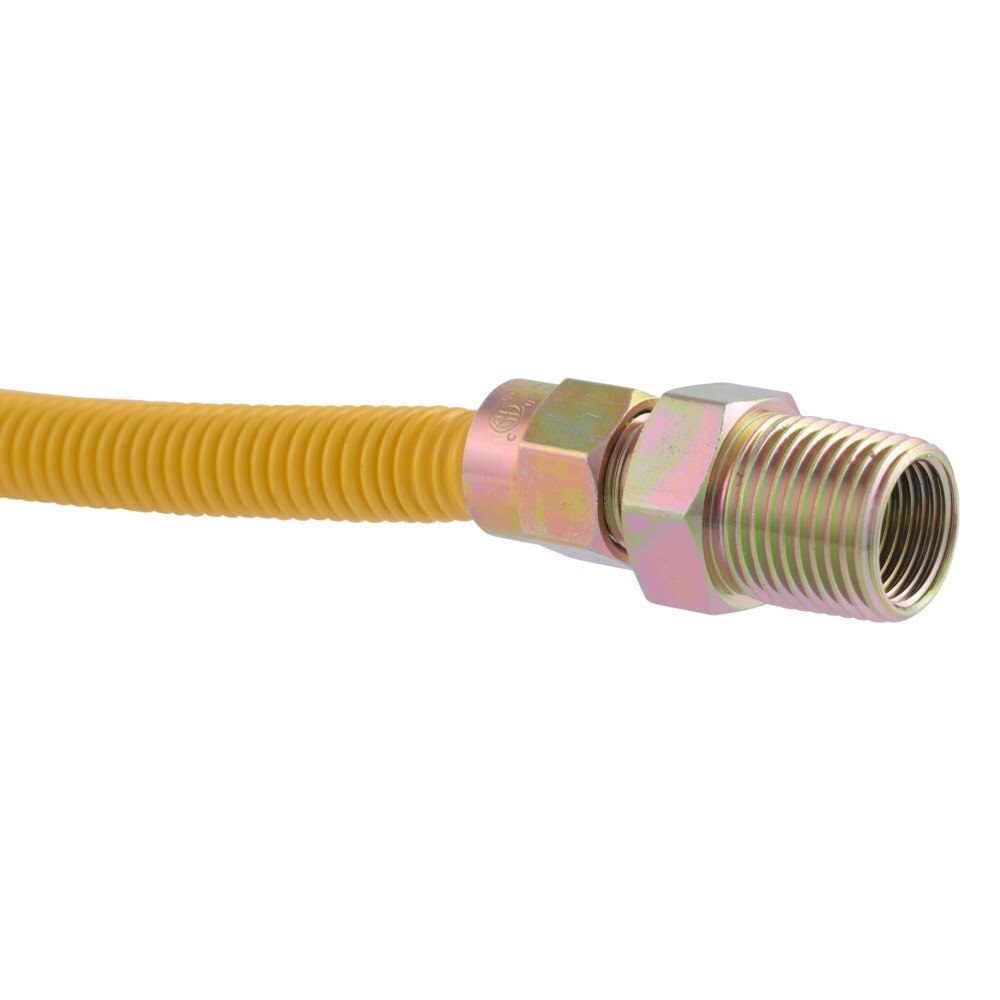

This 48 in. gas connector features a 3/8 in. OD stainless steel corrugated tube with a yellow epoxy coating and 1/2 in. MIP x 1/2 in. MIP end fittings. Designed for gas logs, space heaters, and other low-usage appliances, it supports natural gas or LP applications up to 28,300 BTUs and is approved for indoor or outdoor use.
Eastman 10YE505048B Includes
- (1) 48 in. 3/8 in. OD Gas Connector
- (2) 1/2 in. MIP Tapped 3/8 in. FIP Fittings
Eastman 10YE505048B Features
- Fits gas logs and space heaters rated up to 28,300 BTUs
- Compatible with natural gas and LP applications
- Approved for indoor and outdoor use
- Flexible stainless steel construction with deep corrugations for easier installation
- Yellow epoxy coating helps protect against chemical stains and UV exposure
- Factory leak tested for reliable performance
- Working temperature range of -20 Degree F to 150 Degree F
- Certified to applicable ANSI and CSA standards
Eastman 10YE505048B Specifications
| Type | Gas connector |
| Material | Stainless steel |
| Coating | Yellow epoxy-coated |
| Length | 48 in. |
| Outside Diameter | 3/8 in. |
| Inlet Connection | 1/2 in. MIP |
| Outlet Connection | 1/2 in. MIP |
| Gas Type | Natural Gas and LP |
| Maximum BTU Rating | 28,300 BTU |
| Maximum Pressure | 0.5 PSI |
| Working Temperature Range | -20 Degree F to 150 Degree F |
| Flexible | Yes |
| Indoor/Outdoor Use | Yes |
| Excess Flow Valve | No |
| Fitting Material | Zinc |
| Package Quantity | 1 |
| Warranty | 5-year limited |
| Each Shipping Weight | 0.73 lb |
