Eastman 10YE50V036B Description

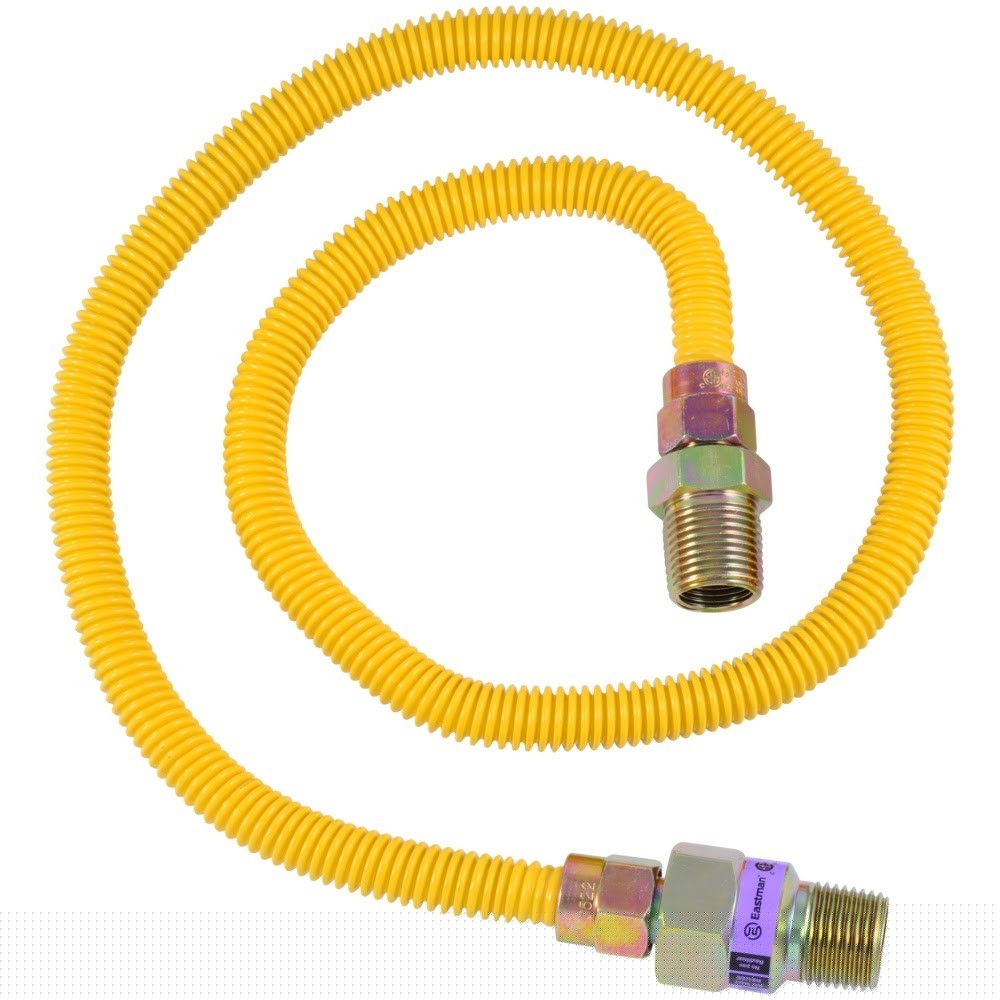

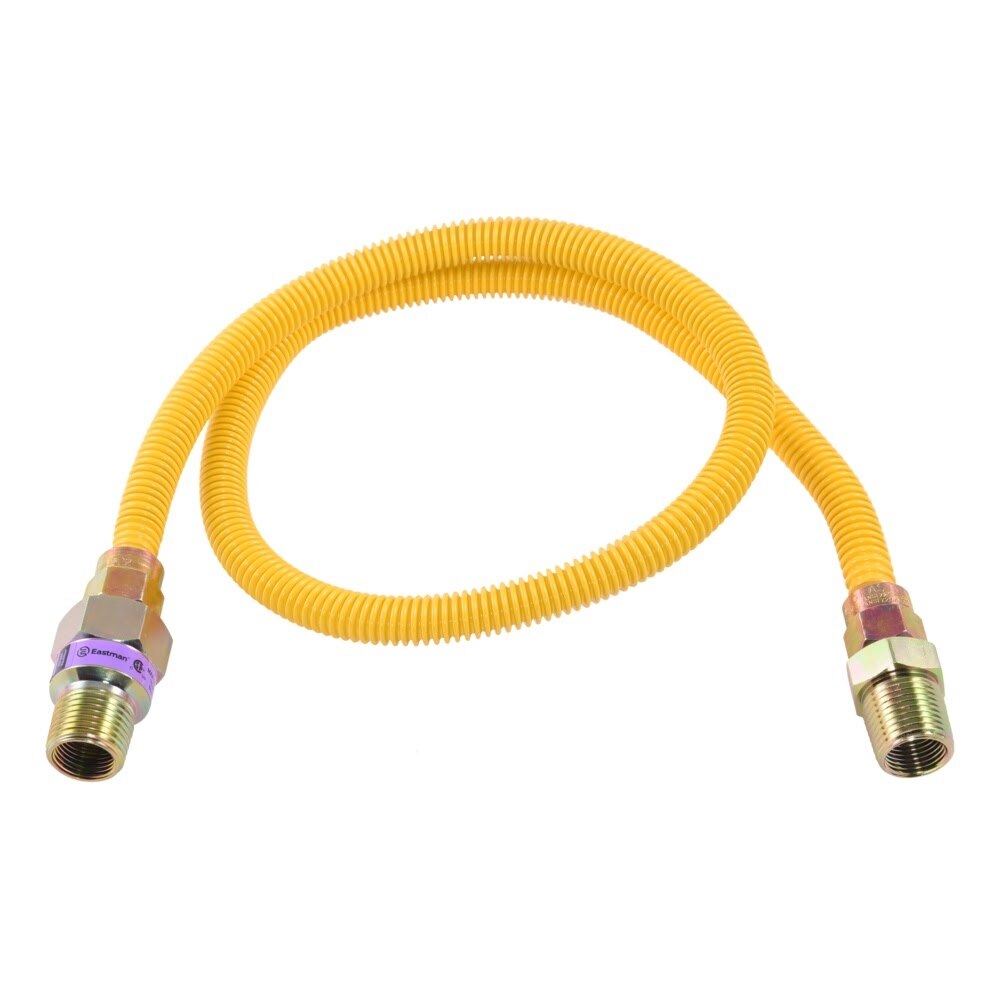

This 36 in. Eastman gas connector features a 3/8 in. OD stainless steel corrugated tube with 1/2 in. MIP x 1/2 in. MIP ends and an integrated excess flow valve for added safety. The yellow epoxy-coated connector is leak tested and suitable for natural gas or liquid propane applications, including gas logs, space heaters, and other low-usage appliances.
Eastman 10YE50V036B Includes
- (1) 3/8 in. OD x 36 in. Gas Connector with 1/2 in. MIP x 1/2 in. MIP Ends
Eastman 10YE50V036B Features
- 3/8 in. OD stainless steel gas connector with 36 in. length
- 1/2 in. MIP x 1/2 in. MIP end connections

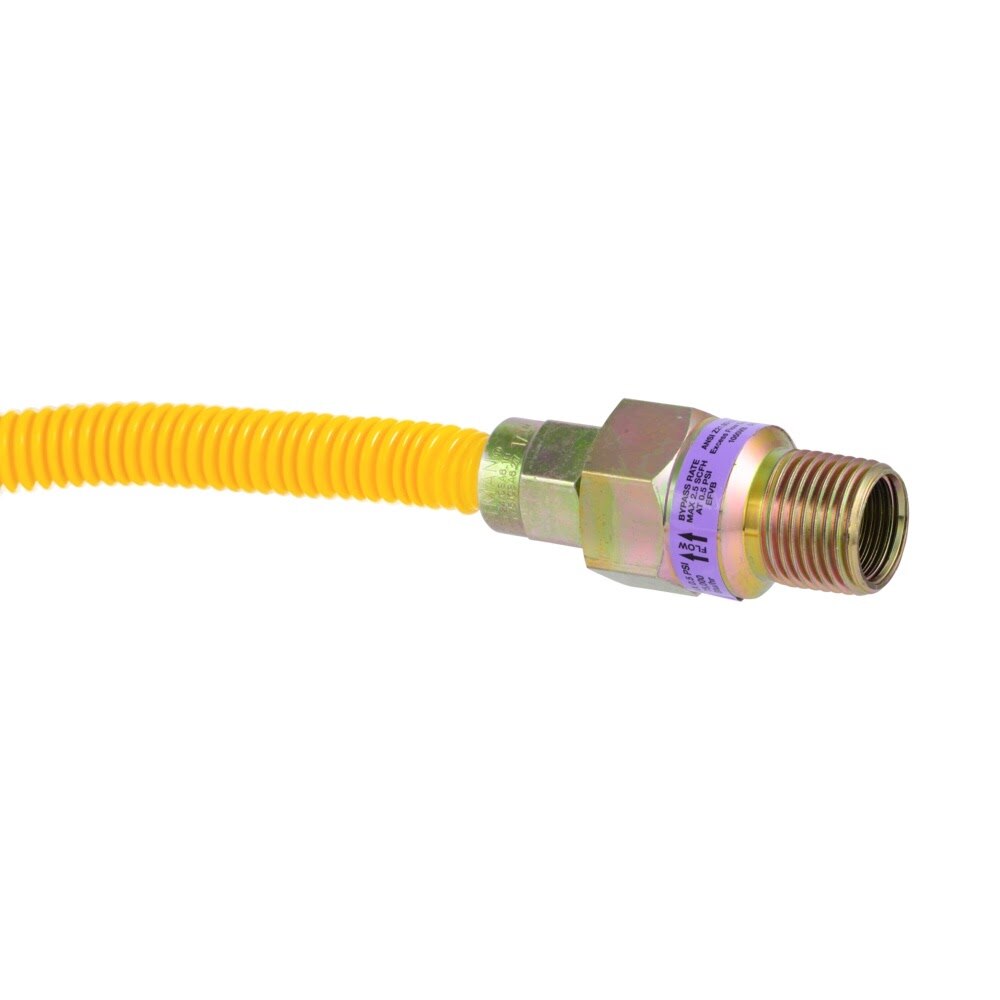

- Integrated excess flow valve helps restrict gas flow after a rupture or disconnect
- Yellow epoxy coating helps protect against corrosion, stains, and UV exposure
- Compatible with natural gas and liquid propane
- Approved for indoor and outdoor use
- Designed for gas logs, space heaters, and other low-usage appliances
- Suitable for applications up to 40,000 BTUs
- Factory leak tested for dependable performance
- Easy to install with no special tools required
- Temperature rating from -20 Degrees F to 150 Degrees F+
Eastman 10YE50V036B Specifications
| Product Type | Gas Connector |
| Length | 36 in. |
| Outside Diameter | 3/8 in. |
| Connection Type | 1/2 in. MIP x 1/2 in. MIP |
| Material | Stainless steel |
| Color | Yellow |
| Valve Type | Excess Flow Valve (EFV) |
| Fuel Type | Natural Gas, Liquid Propane |
| Application | Gas logs, space heaters, low-usage appliances |
| Maximum BTU Rating | 40,000 BTU |
| Use | Indoor and outdoor |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Coating | Epoxy coated |
| Testing | 100% leak tested |
| Shipping Weight | 0.71 lb |
| Standards | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
