Eastman 10YE51V018B Description

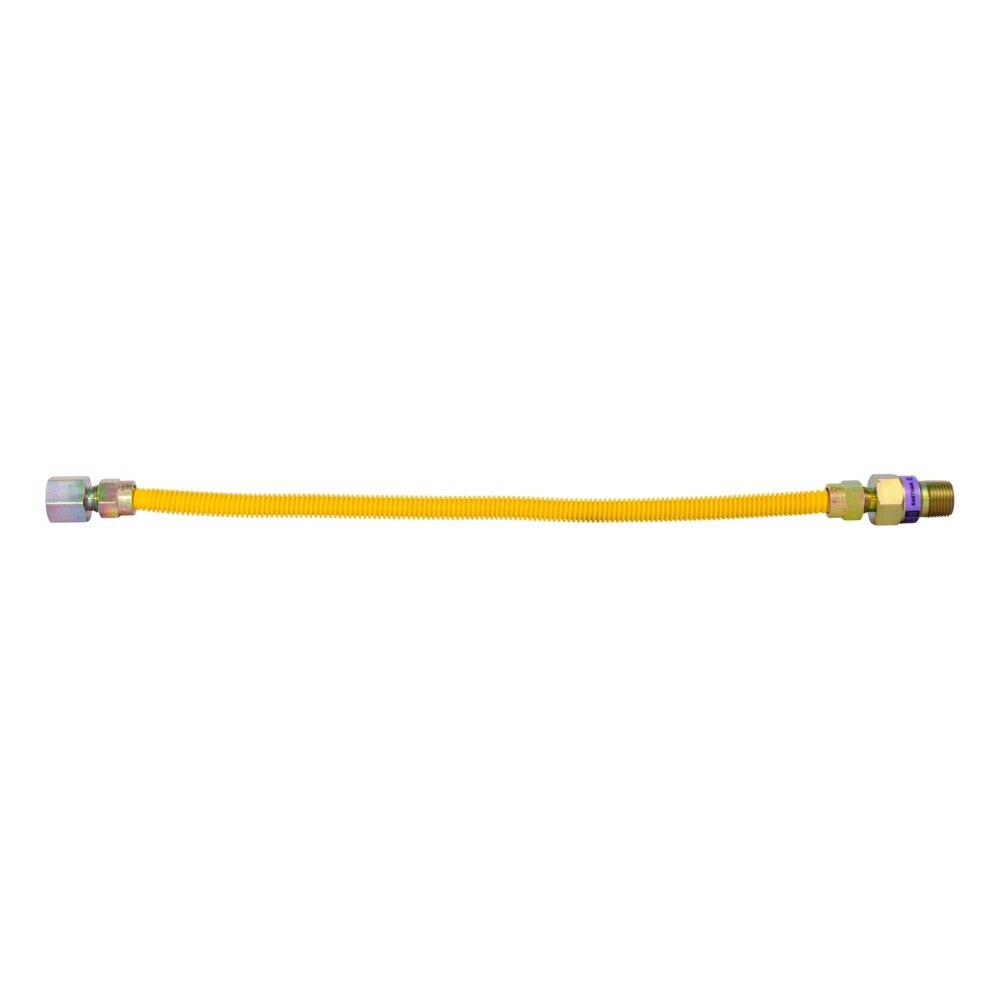

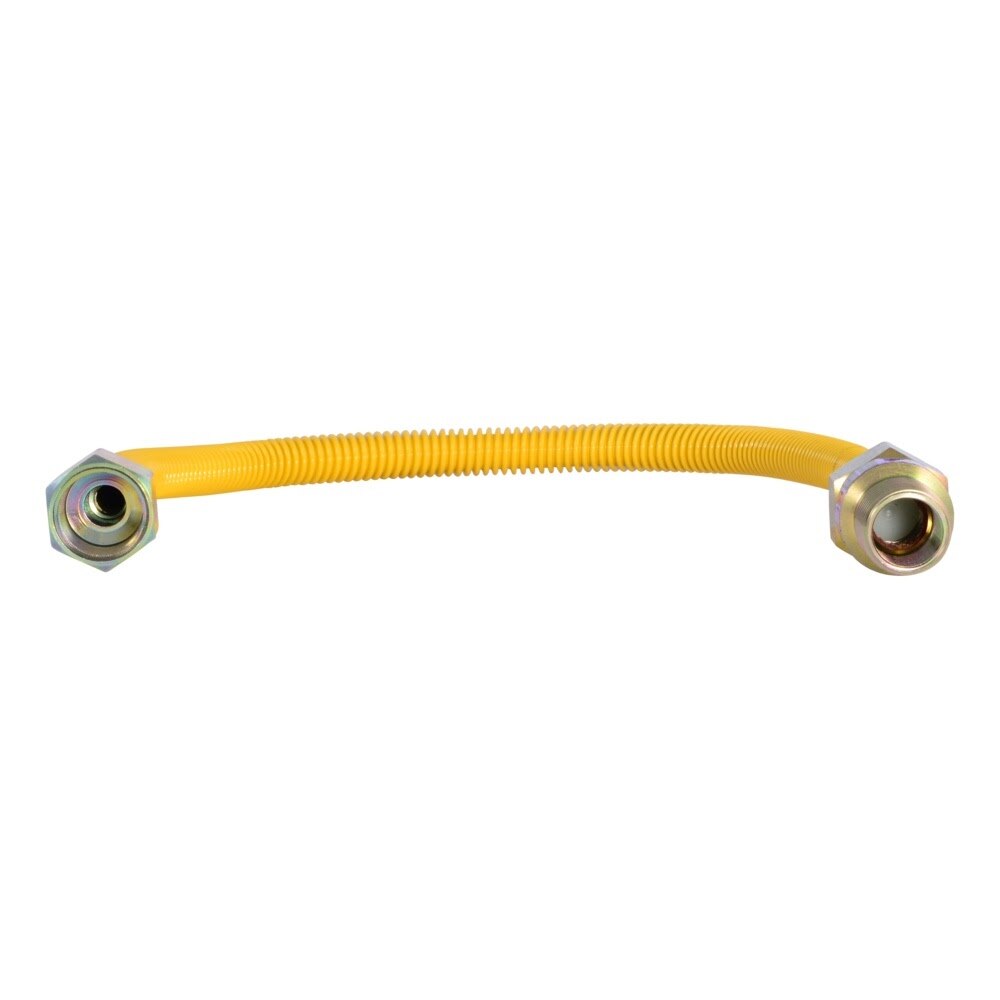

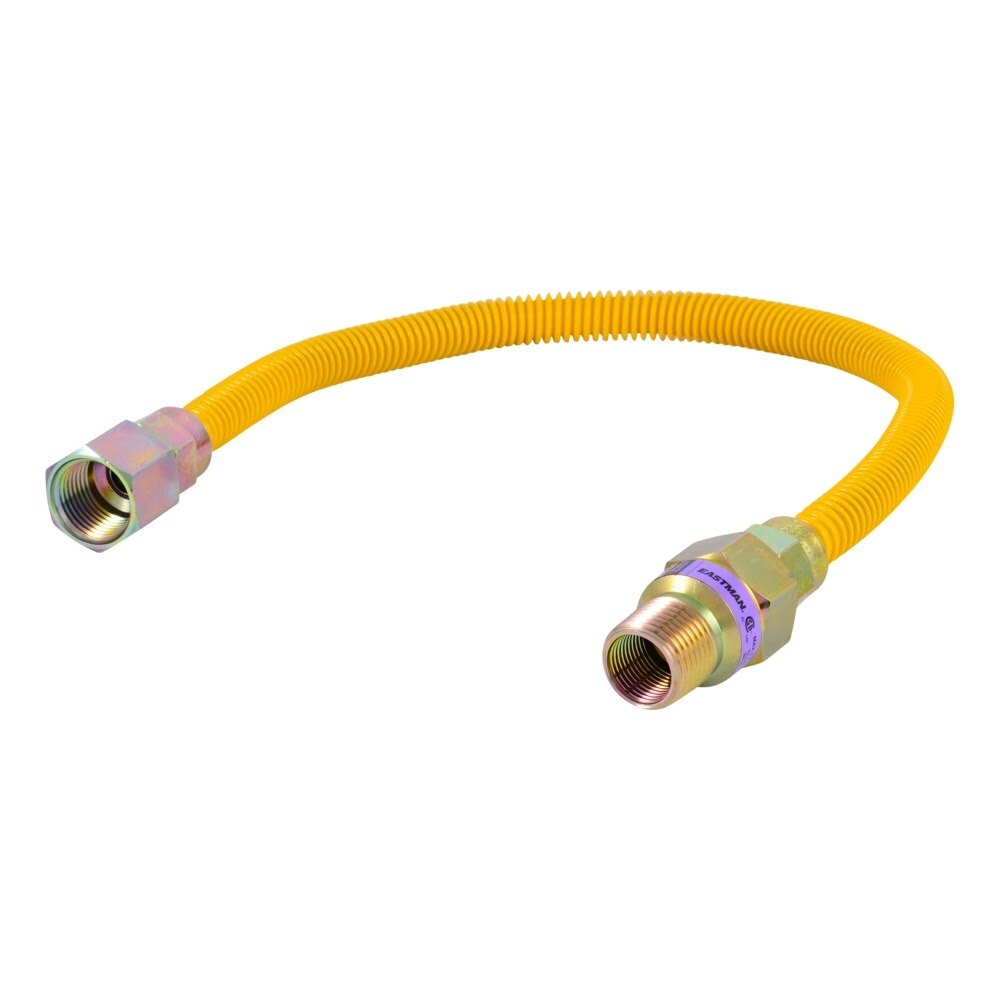

The Eastman 18 in. gas connector is built with a stainless steel corrugated tube and yellow epoxy coating for reliable gas appliance connections in indoor or outdoor applications. It features a 3/8 in. OD connector body, 1/2 in. FIP x 1/2 in. MIP fittings, and an integrated excess flow valve that helps restrict gas flow in the event of a rupture or disconnect.
Eastman 10YE51V018B Includes
- (1) 18 in. 3/8 in. OD gas connector
- (1) 1/2 in. FIP fitting
- (1) 1/2 in. MIP excess flow valve
Eastman 10YE51V018B Features
- Stainless steel gas connector with yellow epoxy coating for corrosion, chemical, and UV resistance
- Integrated excess flow valve helps restrict gas flow during a catastrophic rupture or disconnect
- Fire-safe thermal ring helps stop gas flow when exposed to extreme heat
- Valve can be installed vertically or horizontally
- Suitable for gas logs, space heaters, and other low-usage appliances
- Approved for indoor and outdoor use
- CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
Eastman 10YE51V018B Specifications
| Brand | Eastman |
| Connector Length | 18 in. |
| Connector Outside Diameter | 3/8 in. |
| Fitting Size | 1/2 in. FIP x 1/2 in. MIP |
| Material | Stainless steel |
| Coating | Yellow epoxy-coated |
| Valve Type | Excess flow valve |
| Maximum Capacity | 43,800 BTU/hr |
| Installation Orientation | Vertical or horizontal |
| Use | Indoor and outdoor |
| Packaging Type | Bagged |
| Certification | CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 |
Toolup Part # :
883877
