Eastman 10YE52V036B Description

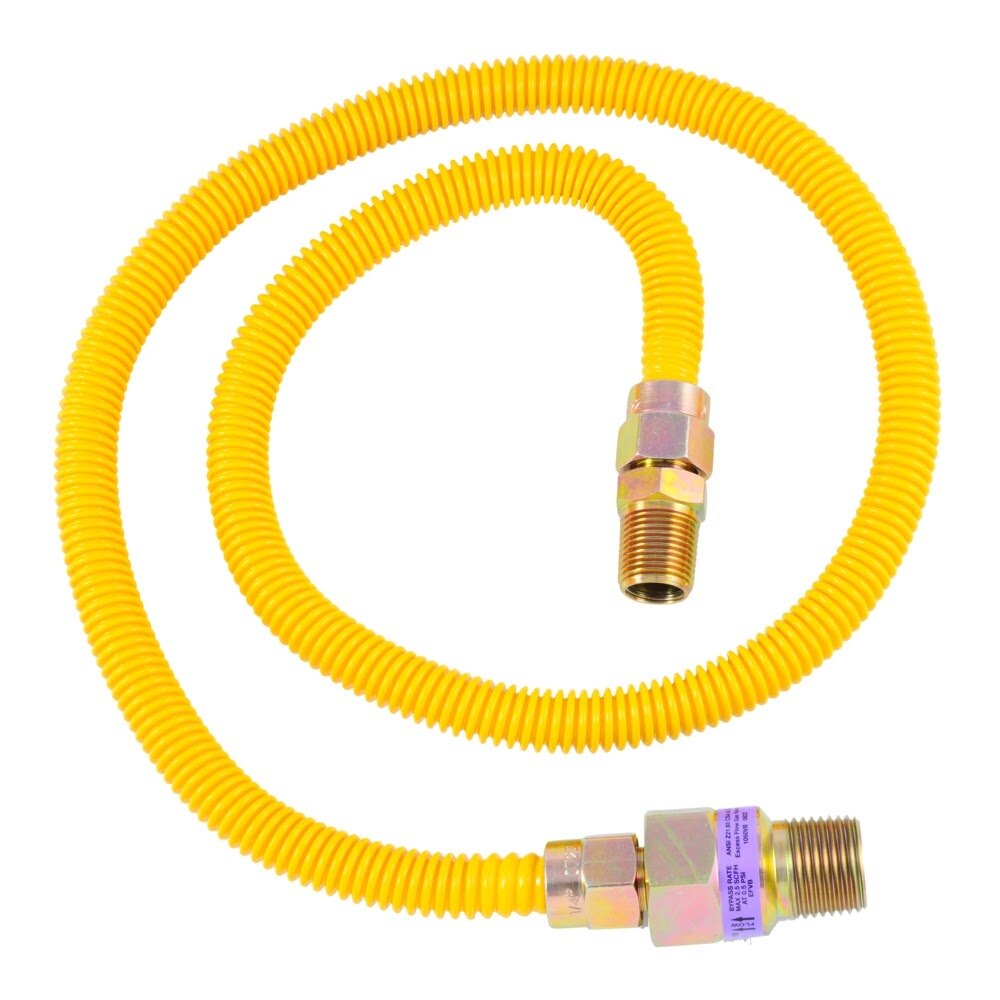

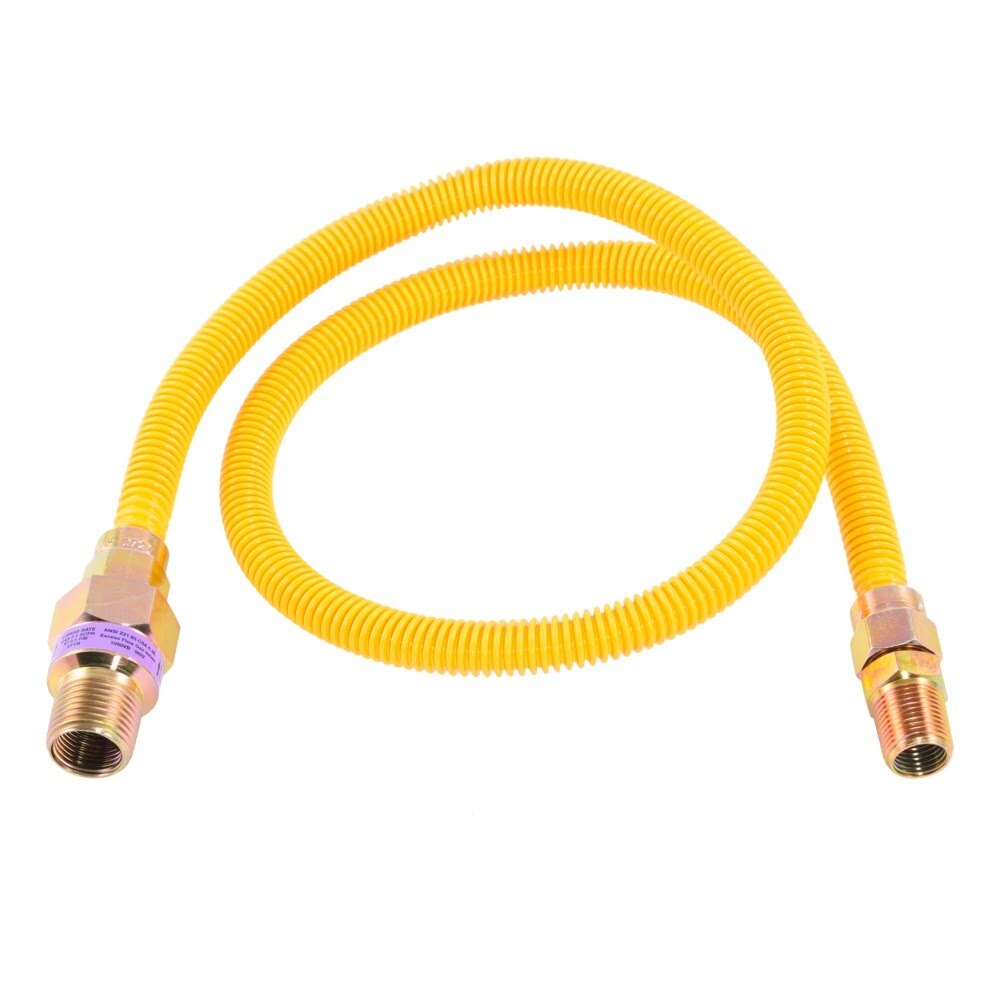

The Eastman 36 in. gas connector is made of corrugated stainless steel with a yellow epoxy coating for added corrosion, chemical, UV, and salt resistance. It features 3/8 in. OD construction with 3/8 in. MIP and 1/2 in. MIP connections plus an integrated excess flow valve for added gas shutoff protection. Approved for indoor and outdoor use, it is designed for dryers, decorative stoves, gas log fireplaces, space heaters, and other low-usage gas appliances.
Eastman 10YE52V036B Includes
- (1) 36 in. 3/8 in. OD Stainless Steel Gas Connector
- (1) 3/8 in. MIP Fitting
- (1) 1/2 in. MIP Excess Flow Valve
Eastman 10YE52V036B Features
- Corrugated stainless steel gas connector with 3/8 in. OD and 36 in. length
- Yellow epoxy coating helps resist corrosion, household chemicals, UV rays, and salt exposure

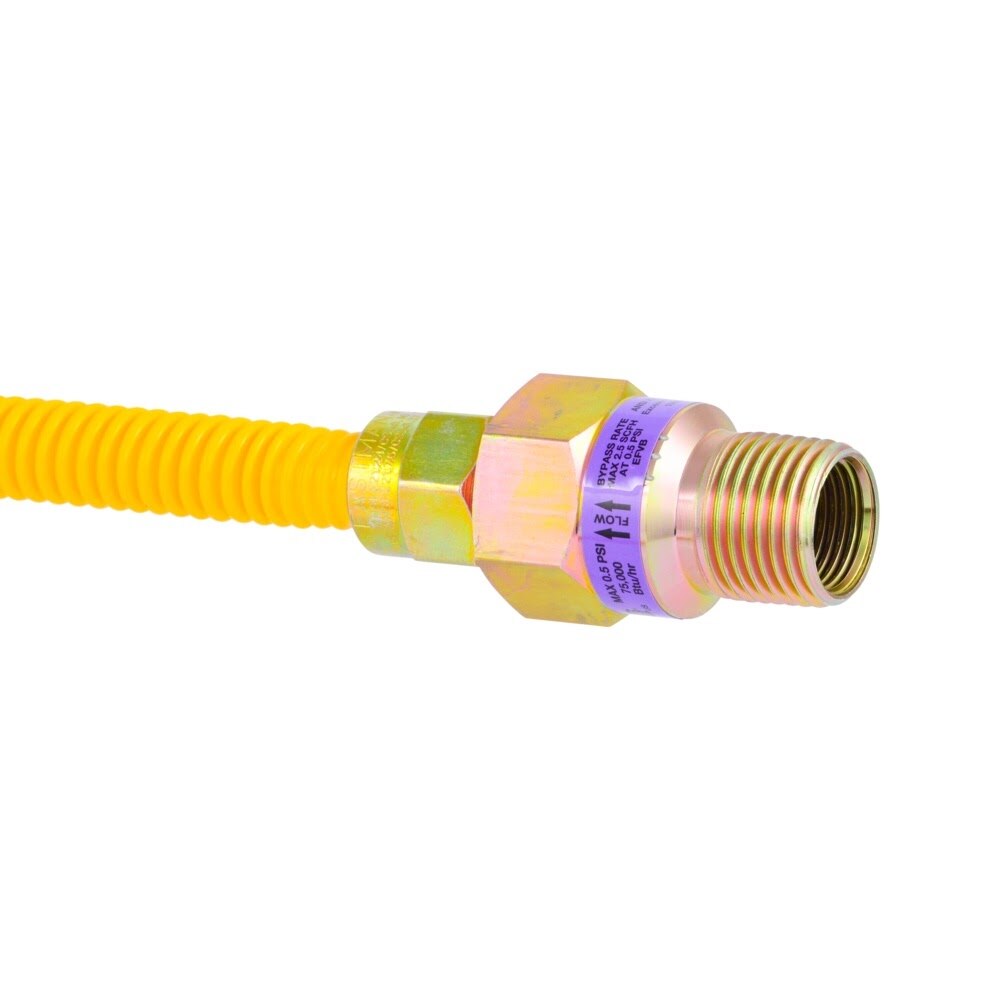

- Integrated excess flow valve helps restrict gas flow in the event of a rupture or disconnect
- Fire-safe thermal protection activates at extreme temperatures for added safety
- Installs like a standard gas fitting
- Approved for indoor and outdoor use
- Suitable for dryers, decorative stoves, gas log fireplaces, space heaters, and other low-usage gas appliances
- Omnidirectional valve can be installed vertically or horizontally
- CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
Eastman 10YE52V036B Specifications
| Brand | Eastman |
| Product Type | Gas Connector |
| Material | Stainless steel |
| Coating | Yellow epoxy-coated |
| Length | 36 in. |
| Outer Diameter | 3/8 in. |
| Inner Diameter | 1/4 in. |
| Inlet Connection | 1/2 in. MIP |
| Outlet Connection | 3/8 in. MIP |
| Excess Flow Valve | Yes |
| Application | Gas appliance |
| Packaging Type | Bagged |
| Indoor/Outdoor Use | Yes |
| Certification | CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 |
| Shipping Weight | 0.66 lbs |
Toolup Part # :
883652
