Eastman 20515 Description

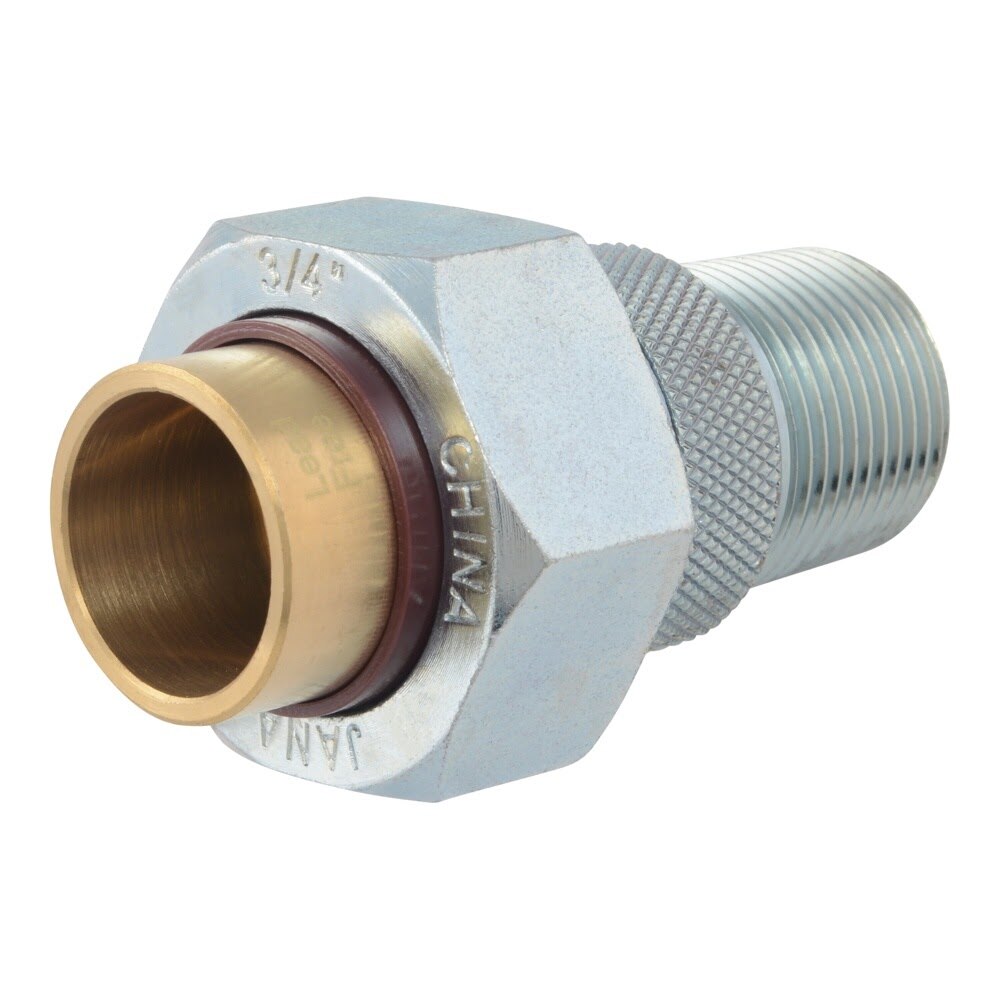

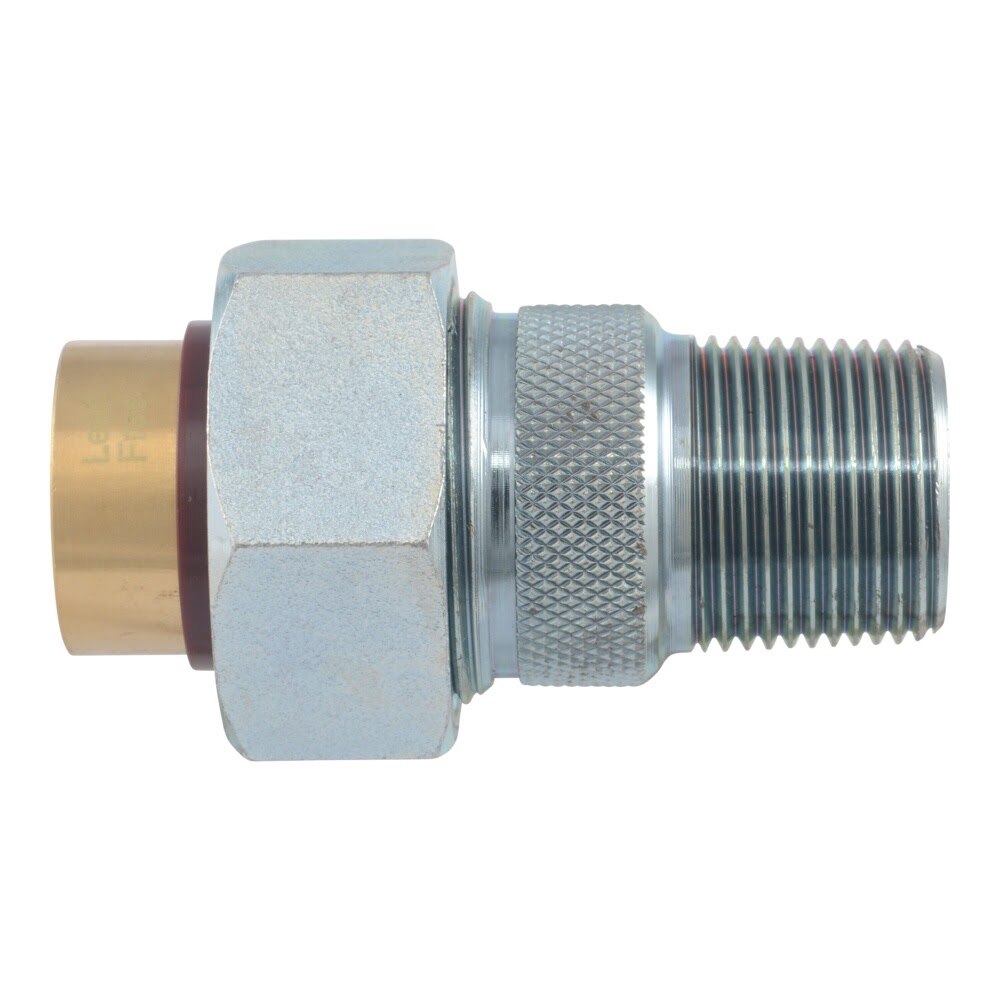

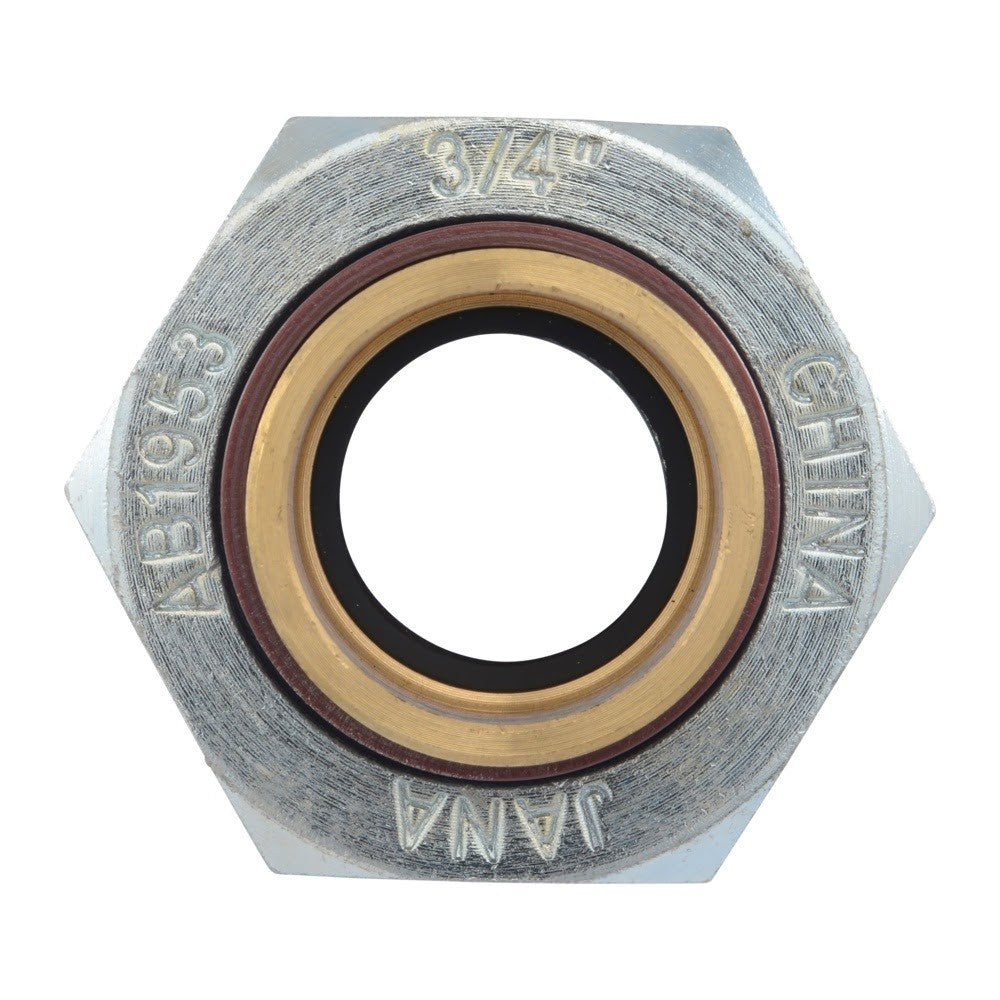

The Eastman dielectric union is designed for transitioning between steel and copper piping in water heater installations and repairs. This 3/4 in. MIP x 3/4 in. solder fitting features a steel IPS connection and nut, a brass solder end, and a leak resistant gasket made of silicone rubber with a nylon insert to help minimize corrosion.
Eastman 20515 Includes
- (1) 3/4 in. MIP x 3/4 in. Solder Dielectric Union
Eastman 20515 Features
- 3/4 in. MIP x 3/4 in. solder connection
- Designed to transition between steel pipe and copper pipe
- Helps reduce galvanic corrosion in mixed metal piping systems
- Rated for up to 250 PSI
- Maximum temperature rating of 180 Degrees F
- Steel IPS connection and nut with brass solder connection
- Leak resistant gasket made of silicone rubber with nylon insert
- Compatible with copper, brass, and steel
Eastman 20515 Specifications
| Product Type | Dielectric Union |
| Connection 1 | 3/4 in. MIP |
| Connection 2 | 3/4 in. Solder |
| Application | Water heater installation and repair |
| Maximum Pressure | 250 PSI |
| Maximum Temperature | 180 Degrees F |
| Connection Materials | Steel IPS connection and nut; brass solder end |
| Gasket Material | Silicone rubber with nylon insert |
| Compatible Materials | Copper, brass, and steel |
| Product Length (in) | 4.52 |
| Product Width (in) | 3.49 |
| Product Height (in) | 1.62 |
| Shipping Weight (lb) | 0.59 |
Toolup Part # :
883769
