Description
Description
Eastman 20BE52515024K Description
The Eastman 1/2 in. OD gas log installation kit is designed to connect most major gas log kits to a shut-off valve. This 24 in. black stainless steel connector kit is compatible with natural gas and liquid propane appliances up to 85,000 BTU and features a black DuraCoat epoxy coating for corrosion, stain, and UV resistance. It is approved for indoor and outdoor use and includes installation fittings, leak detector solution, and PTFE thread sealant tape.

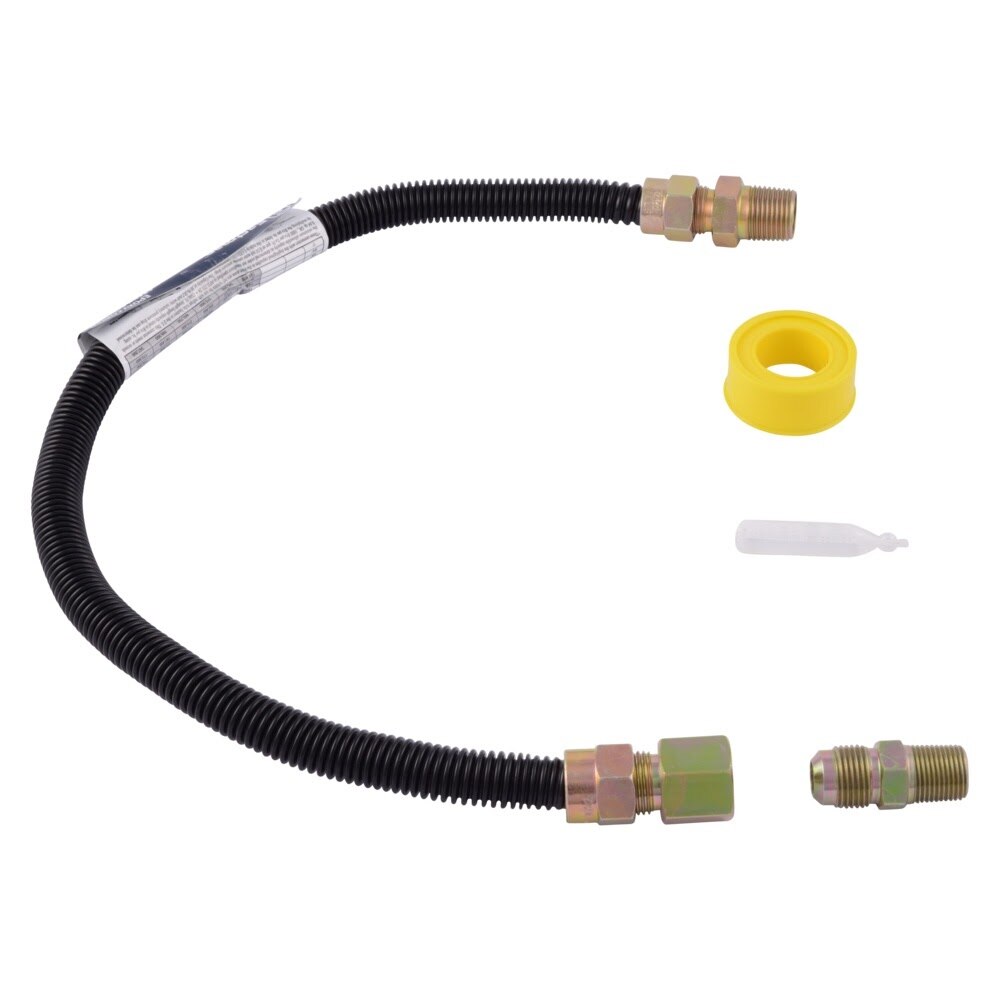

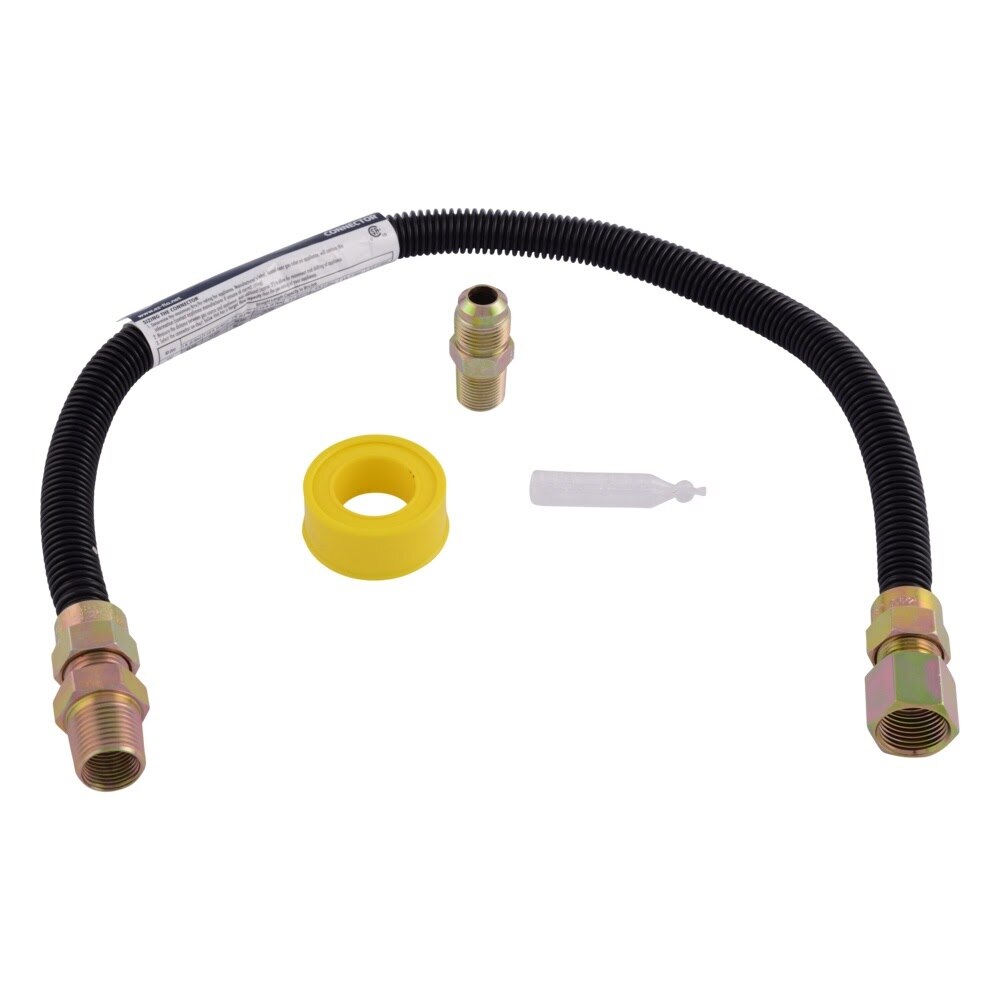

Eastman 20BE52515024K Includes
- (1) Gas Log Installation Kit
- (1) 24 in. 1/2 in. OD epoxy-coated gas connector
- (1) 3/8 in. MIP tapped 1/4 in. FIP fitting
- (1) 1/2 in. MIP tapped 3/8 in. FIP fitting
- (1) 1/2 in. FIP fitting
- (1) Leak detector solution
- (1) PTFE thread sealant tape
Eastman 20BE52515024K Features
- Designed to connect most major gas log kits to a shut-off valve
- Fits gas log kits rated up to 85,000 BTU
- Compatible with natural gas and liquid propane
- Approved for indoor and outdoor use
- Black epoxy finish helps conceal visible gas connections
- DuraCoat epoxy coating resists corrosion, stains, and UV exposure
- Easy installation with no special tools required
- 100% leak tested at the factory
- Temperature rating from -20 Degrees F to 150 Degrees F+
- Certified to ANSI Z21.24/CSA 6.10, ANSI Z21.69/CSA 6.16, and ANSI Z21.75/CSA 6.27
Eastman 20BE52515024K Specifications
| Product Type | Gas Log Installation Kit |
| Connector Length | 24 in. |
| Connector OD | 1/2 in. |
| Material | Stainless steel |
| Finish | Black DuraCoat epoxy |
| Gas Type | Natural gas and liquid propane (LP) |
| Maximum Gas Rating | 85,000 BTU |
| Use Location | Indoor and outdoor |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Included Fitting 1 | 3/8 in. MIP tapped 1/4 in. FIP |
| Included Fitting 2 | 1/2 in. MIP tapped 3/8 in. FIP |
| Included Fitting 3 | 1/2 in. FIP |
| Product Width (in) | 1.23 |
| Product Height (in) | 0.94 |
| Product Weight (lb) | 0.76 |
| Certifications | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
