Eastman 20YE505036 Description

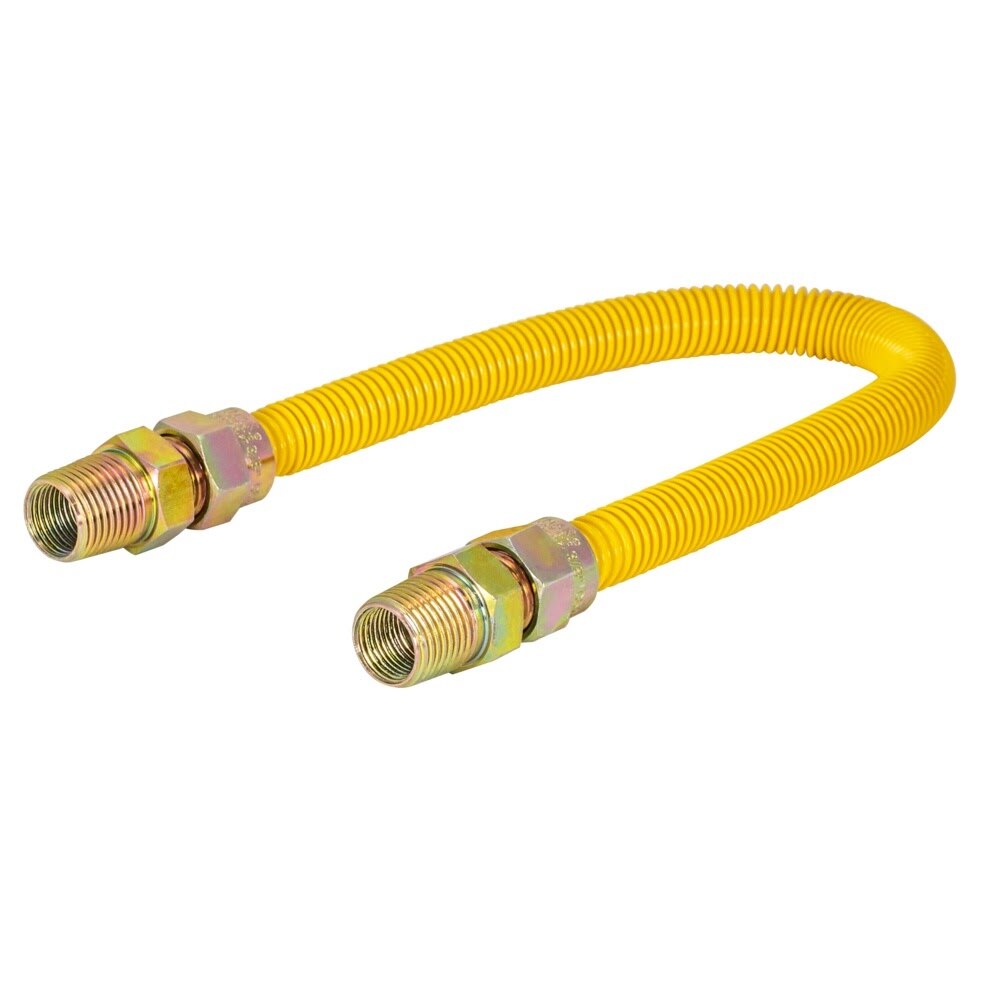

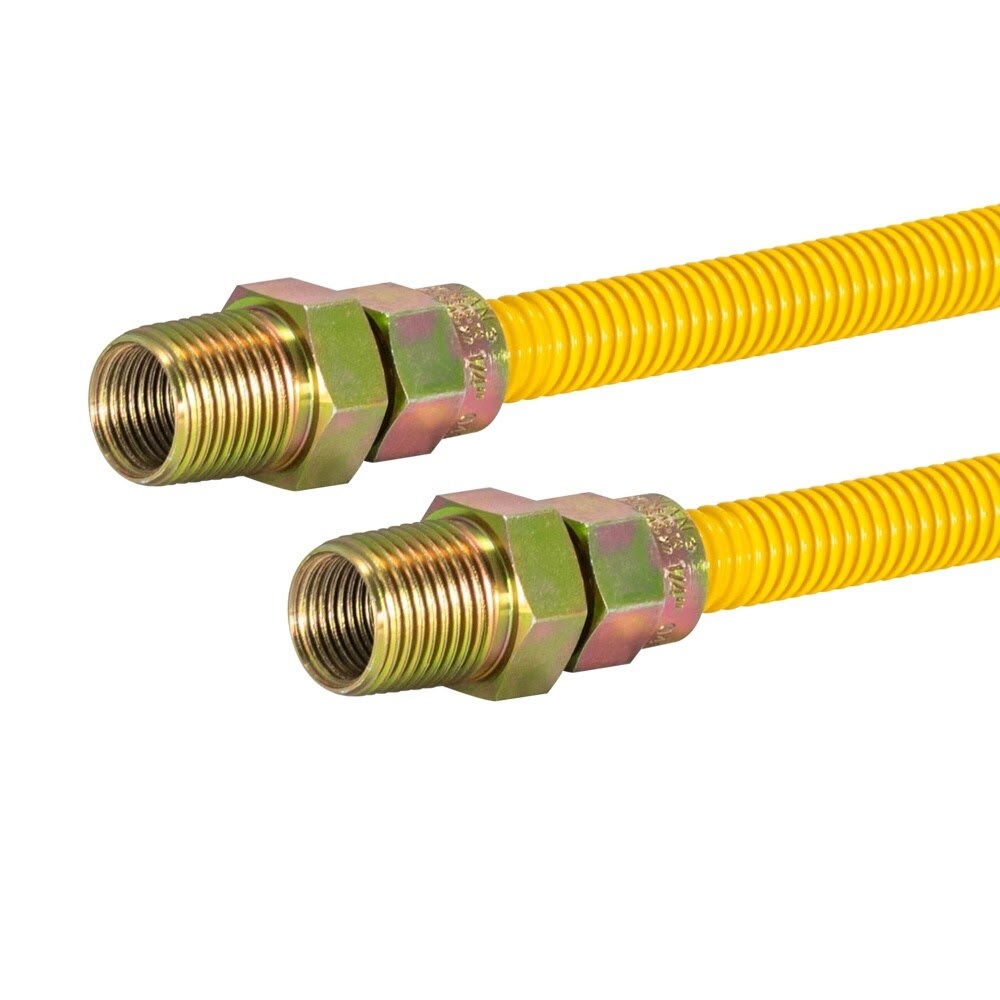

The Eastman 1/2 in. OD x 36 in. gas connector is a flexible stainless steel connector with a yellow epoxy coating for connecting gas appliances such as water heaters and dryers to a shut-off valve. It features 1/2 in. MIP x 1/2 in. MIP ends, resists corrosion, stains, and UV exposure, and is approved for indoor and outdoor use.
Eastman 20YE505036 Includes
- (1) 36 in. 1/2 in. OD yellow stainless steel gas connector
- (2) 1/2 in. MIP tapped 3/8 in. FIP fittings
Eastman 20YE505036 Features
- Designed for gas appliance connections including water heaters and dryers
- Compatible with natural gas and LP applications
- Rated for appliances up to 71,100 BTUs
- Approved for indoor and outdoor use

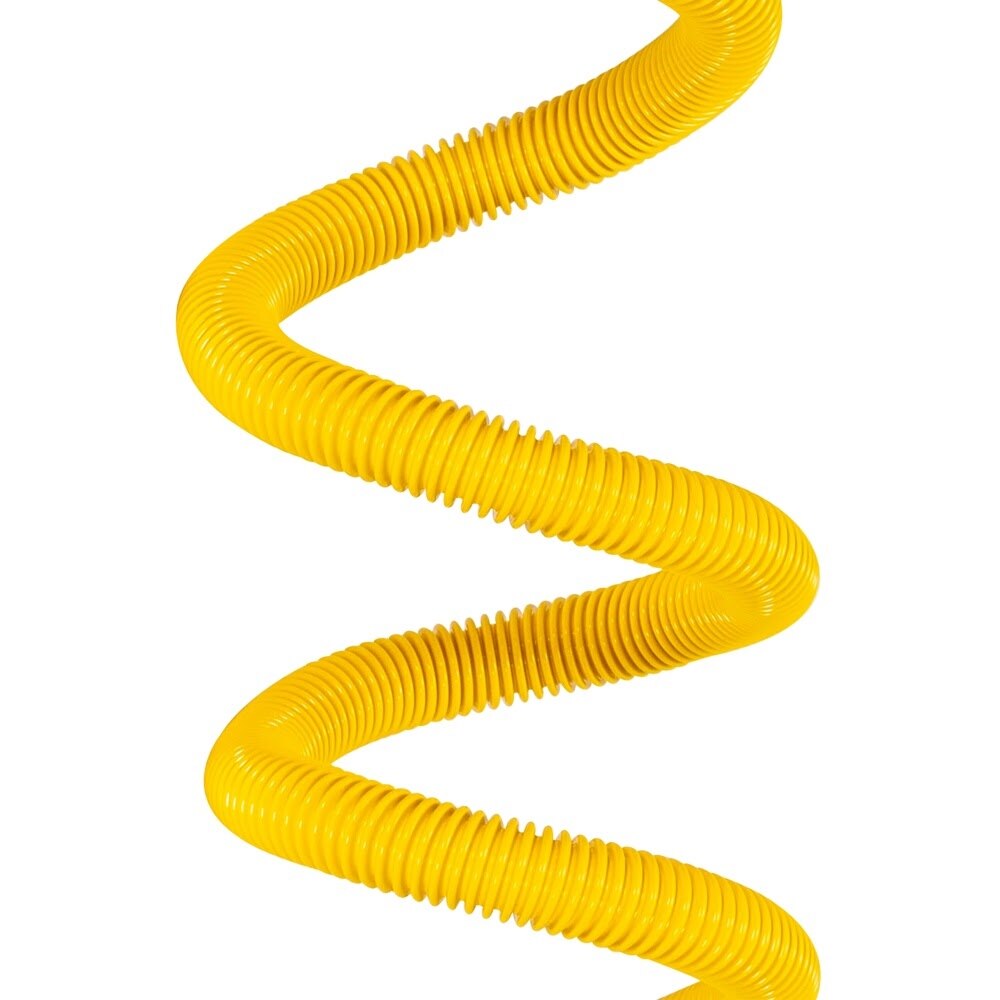

- Flexible stainless steel construction with deep corrugations
- Yellow epoxy coating helps protect against corrosion, chemical stains, and UV exposure
- Factory leak tested for reliable performance
- Temperature rated from -20 Degree F to 150 Degree F
- Certified to ANSI and CSA standards
Eastman 20YE505036 Specifications
| Type | Gas connector |
| Material | Stainless steel |
| Color | Yellow |
| Coating | Epoxy coated |
| Connector Length | 36 in. |
| Outside Diameter | 1/2 in. |
| Inlet Fitting End Type | MIP |
| Outlet Fitting End Type | MIP |
| Inlet Fitting Size | 1/2 in. |
| Outlet Fitting Size | 1/2 in. |
| Fitting Material | Zinc |
| Maximum PSI | 0.5 |
| BTU Rating | 71,100 BTU |
| Working Temperature Range | -20 to 150 Degree F |
| Excess Flow Valve (EFV) | No |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Indoor/Outdoor Use | Yes |
| Warranty | 5-year limited |
| Each Shipping Weight | 0.79 lb |
Toolup Part # :
883450
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
