Eastman 20YE505036B Description

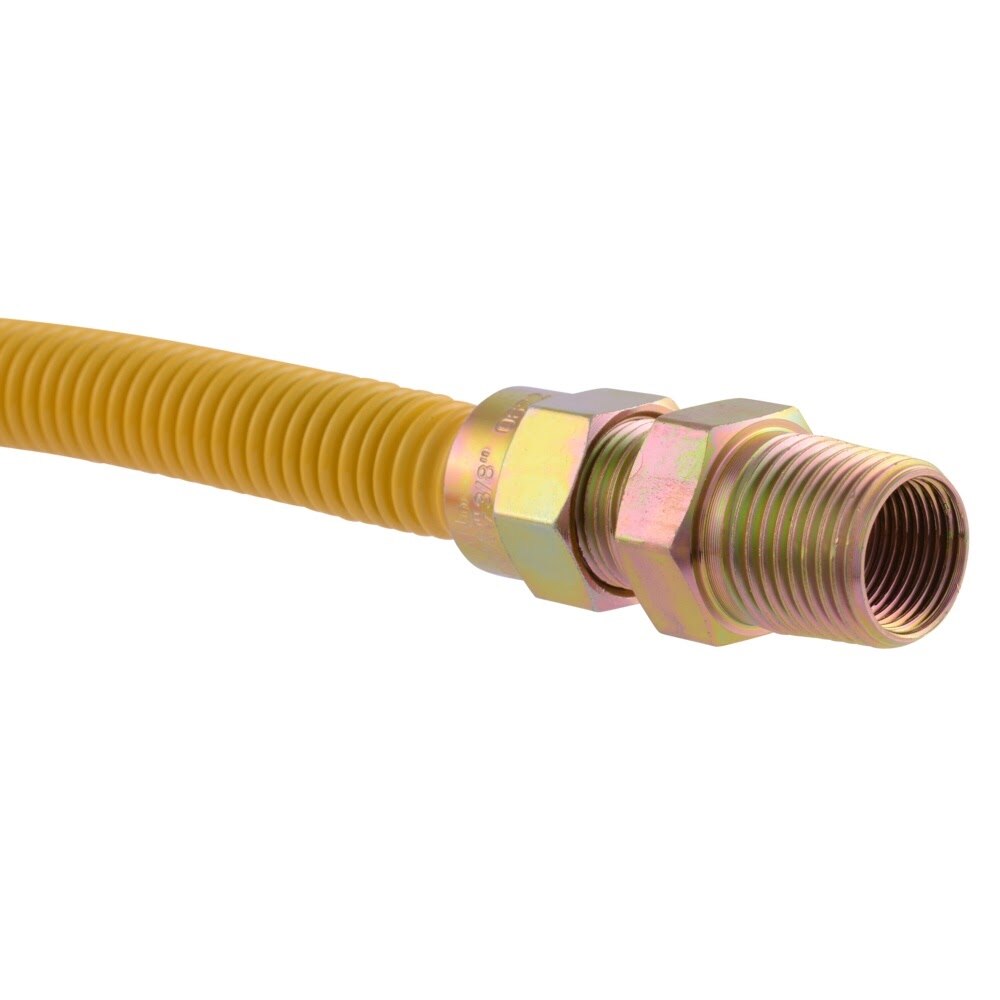

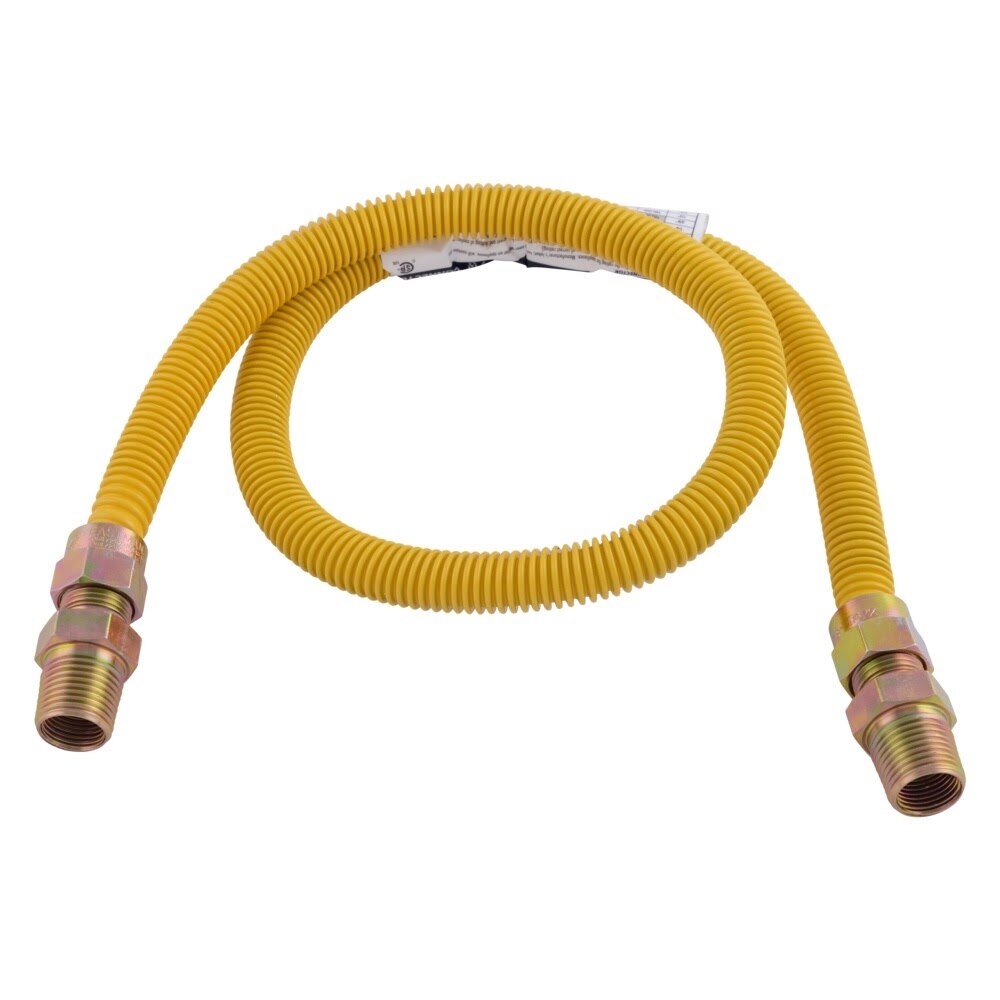

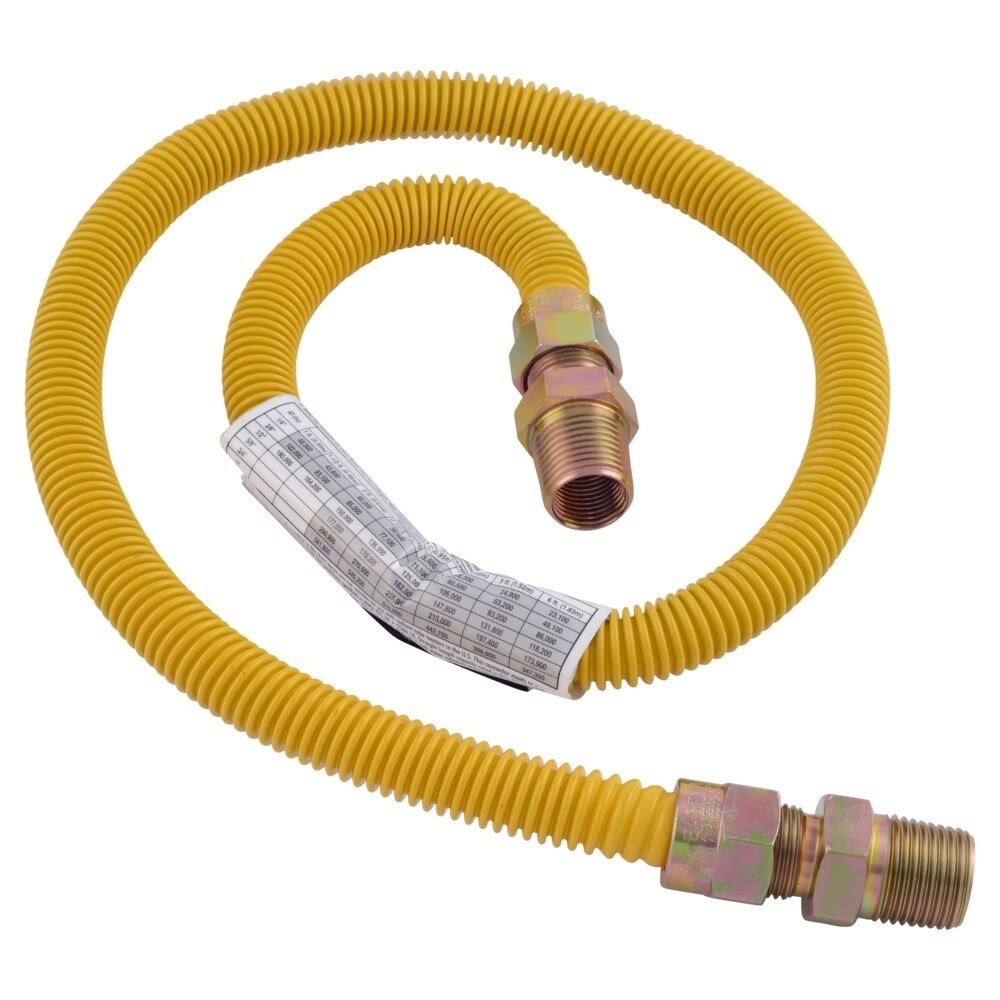

The Eastman stainless steel gas connector is designed for connecting water heaters, dryers, and other moderate-usage gas appliances to a shut-off valve. Its flexible deep-corrugated design, yellow epoxy coating, and indoor or outdoor approval provide reliable performance, corrosion resistance, and easier installation.
Eastman 20YE505036B Includes
- (1) Gas Connector
- (2) 1/2 in. MIP Tapped 3/8 in. FIP Fittings
Eastman 20YE505036B Features
- 36 in. long with 1/2 in. OD connector body
- 1/2 in. MIP inlet and 1/2 in. MIP outlet ends
- Flexible stainless steel construction with deep corrugations
- Yellow epoxy coating helps resist corrosion, stains, and UV exposure
- Suitable for natural gas and LP applications
- Approved for indoor and outdoor use
- For water heaters and dryers with gas ratings up to 71,100 BTUs
- 100% factory leak tested
Eastman 20YE505036B Specifications
| Brand | Eastman |
| Part Number | 20YE505036B |
| Product Type | Gas connector |
| Material | Stainless steel |
| Color | Yellow |
| Length | 36 in. |
| Outer Diameter | 1/2 in. |
| Inlet Fitting End Type | MIP |
| Outlet Fitting End Type | MIP |
| Inlet Fitting Size | 1/2 in. |
| Outlet Fitting Size | 1/2 in. |
| Fitting Material | Zinc |
| Maximum Pressure | 0.5 PSI |
| BTU Rating | 71,100 |
| Working Temperature Range | -20 Degree F to 150 Degree F |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Excess Flow Valve | No |
| Lead-Free | No |
| Warranty | 5-year limited |
| Product Weight | 0.79 lb |
