Eastman 20YE50V018B Description

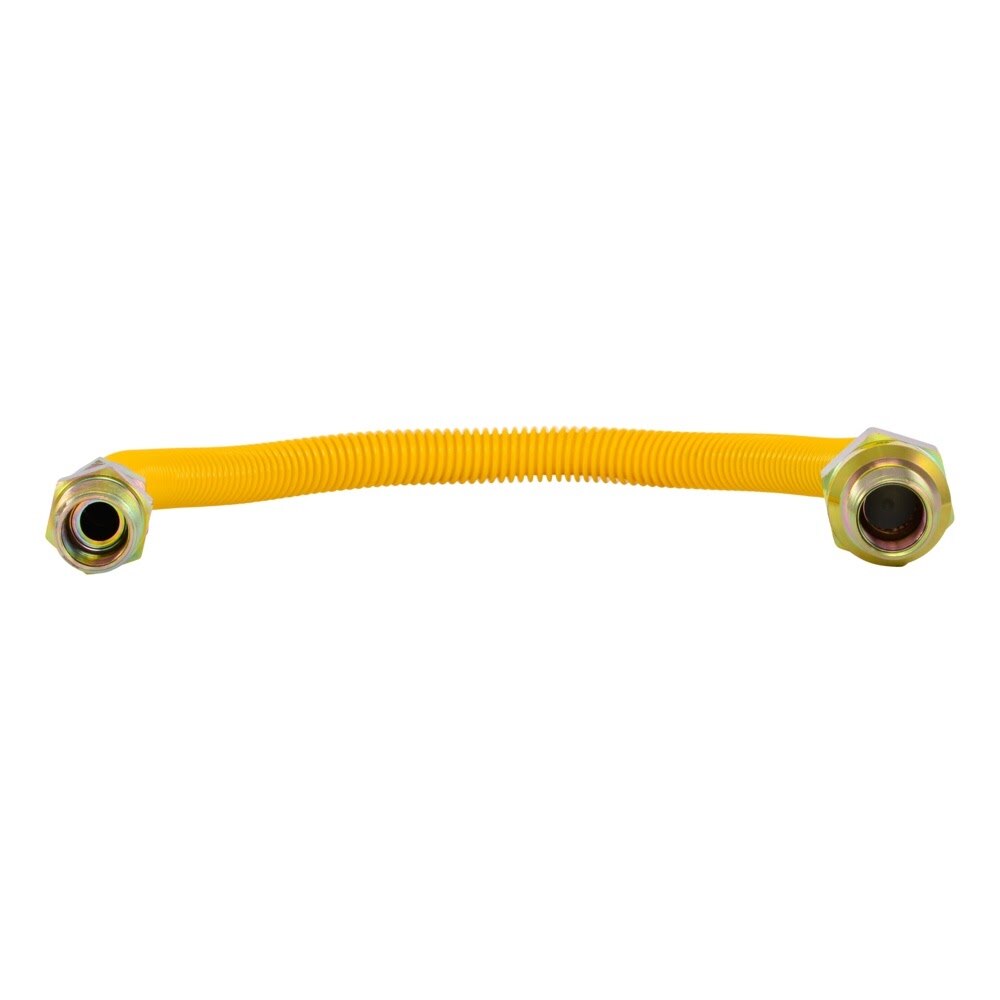

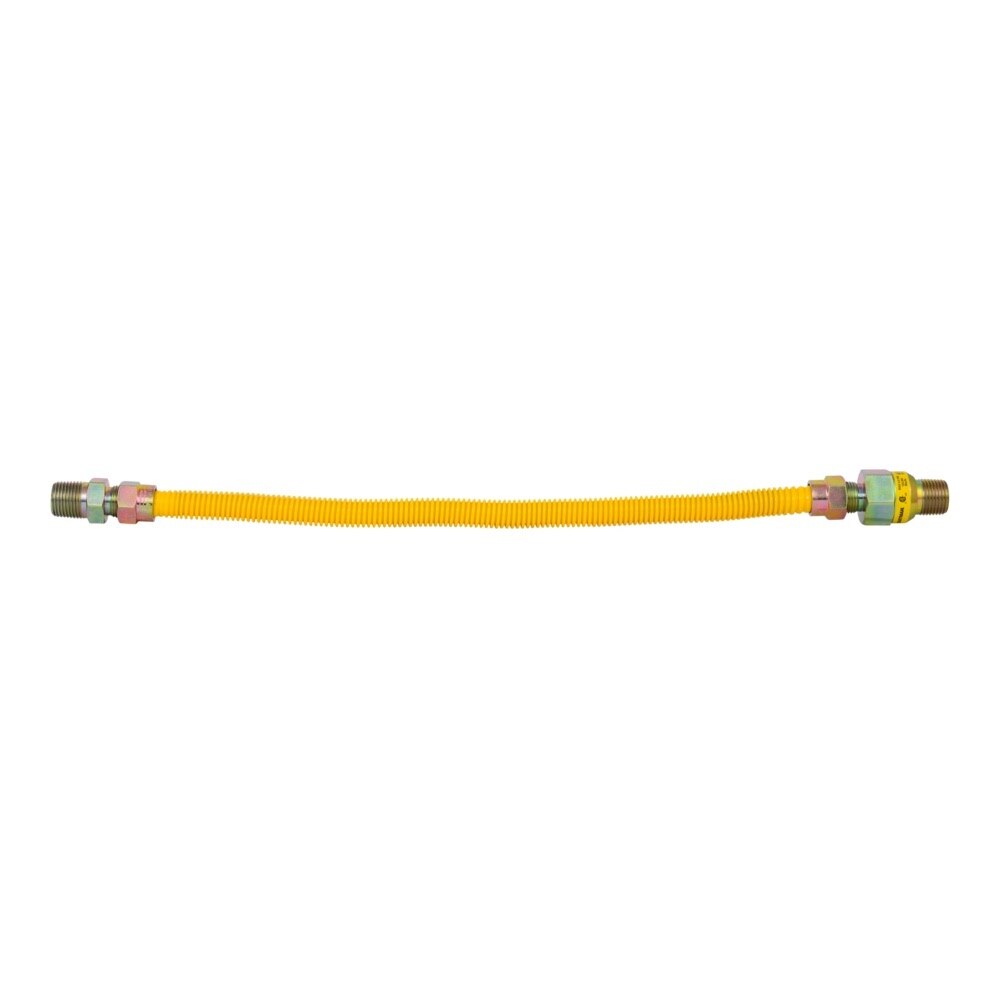

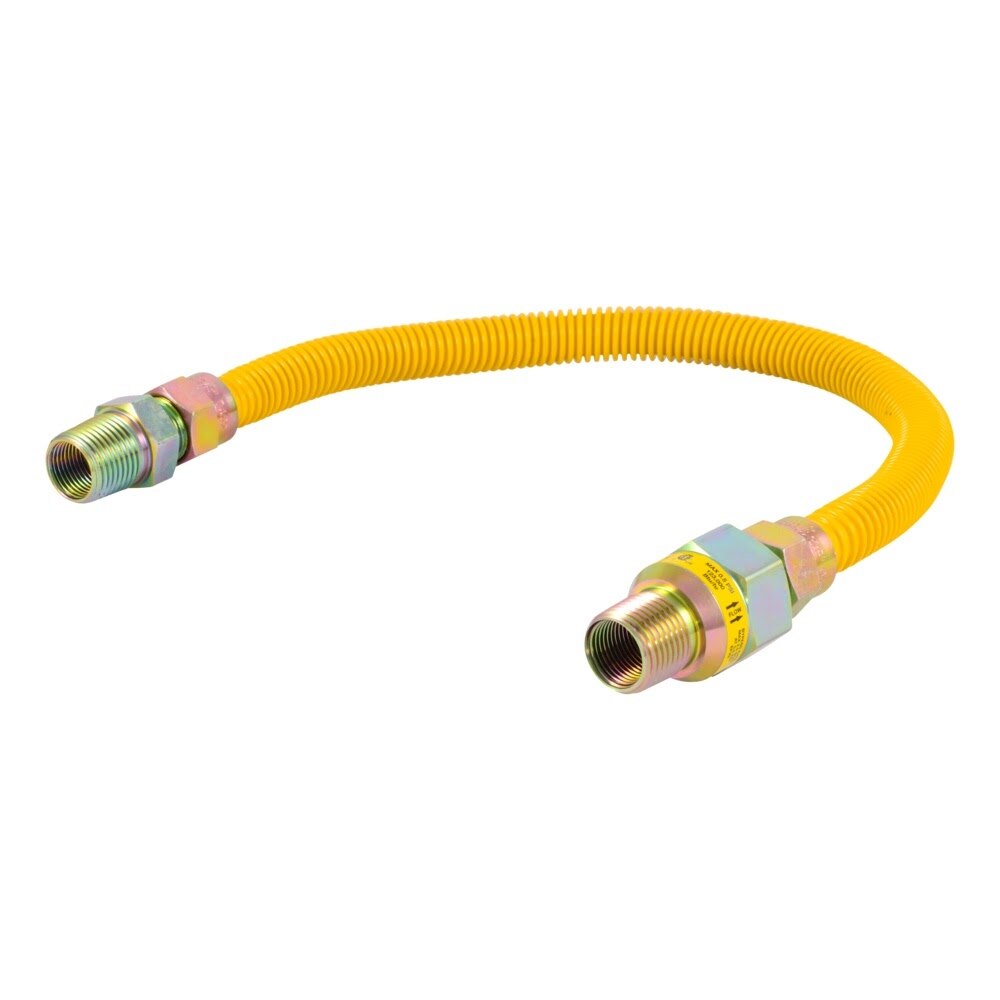

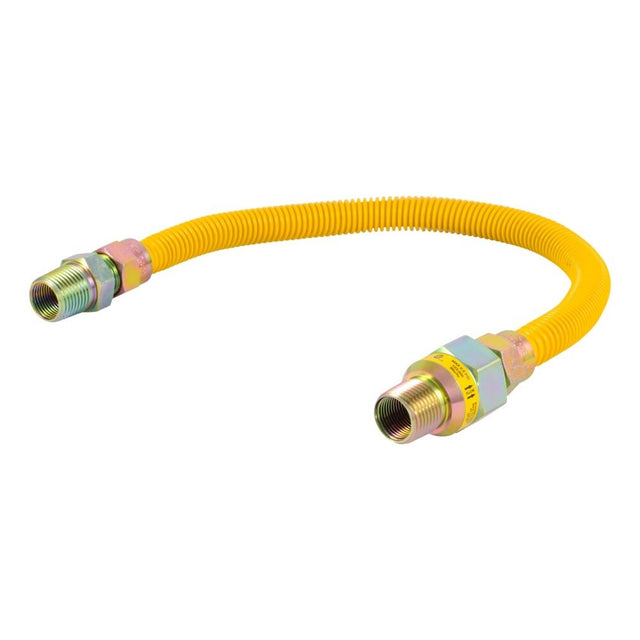

The Eastman 18 in. gas connector is designed for connecting water heaters, dryers, gas ranges, cooktops, and other moderate-use appliances to a shut-off valve. Its stainless steel construction with yellow epoxy coating helps resist corrosion, chemical stains, and UV exposure, while the integrated ArmorBoost EFV helps restrict gas flow in the event of a catastrophic rupture or disconnect. Suitable for low pressure natural gas and LP gas piping systems, it is approved for indoor and outdoor use.
Eastman 20YE50V018B Includes
- (1) 18 in. 1/2 in. OD epoxy-coated stainless steel gas connector
- (1) 1/2 in. MIP fitting tapped 3/8 in. FIP
- (1) 1/2 in. MIP ArmorBoost EFV auto shut-off valve tapped 3/8 in. FIP
Eastman 20YE50V018B Features
- ArmorBoost EFV helps protect against gas fires and explosions
- Auto shut-off valve restricts gas flow during a catastrophic rupture or disconnect
- Fire-safe thermal ring expands at extreme temperatures to stop gas flow
- Yellow DuraCoat epoxy coating helps resist corrosion, chemical stains, and UV exposure
- Approved for indoor and outdoor use
- Suitable for low pressure natural gas and LP gas piping systems
- Designed for water heaters, dryers, gas ranges, cooktops, and other moderate-use appliances
- Certified for appliances with gas ratings up to 93,100 BTU
Eastman 20YE50V018B Specifications
| Connector Length | 18 in. |
| Outside Diameter | 1/2 in. |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | MIP |
| Material | Stainless steel |
| Coating | Yellow epoxy-coated |
| Excess Flow Valve | ArmorBoost EFV |
| Working Pressure | 0.5 psi |
| Gas Type | Natural gas and LP gas |
| Indoor/Outdoor Use | Yes |
| Packaging Type | Bagged |
| BTU Rating | Up to 93,100 BTU |
| Product Weight | 0.65 lb |
Toolup Part # :
883665
