Eastman 20YE50V048B Description

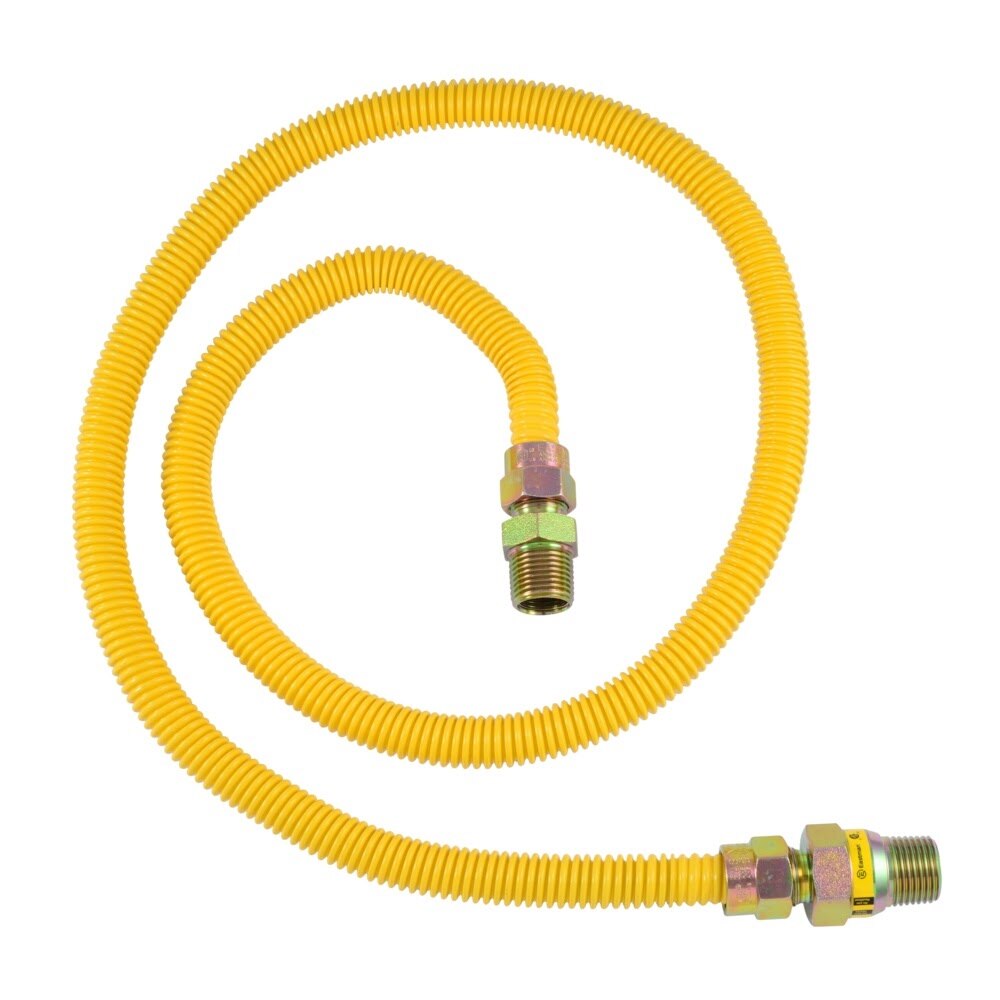

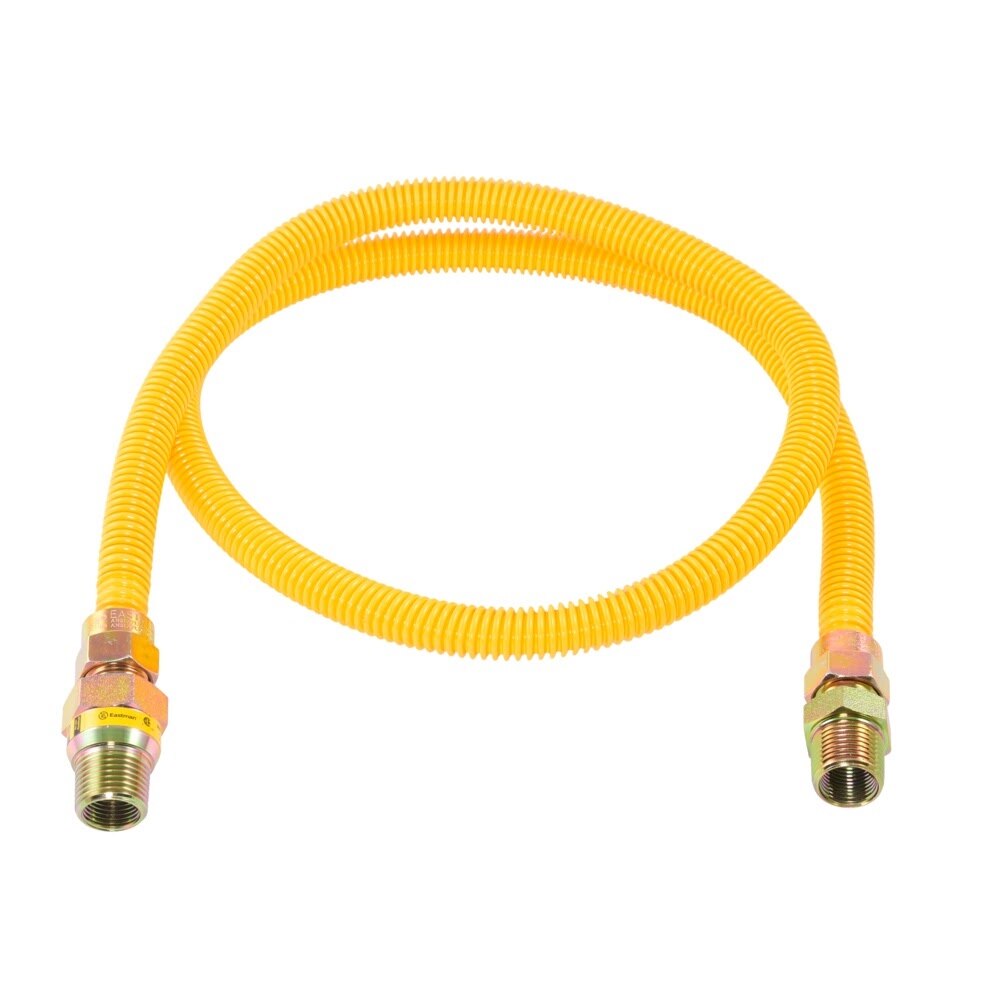

This Eastman gas connector features a 48 in. long, 1/2 in. OD corrugated stainless steel body with a yellow epoxy coating and 1/2 in. MIP x 1/2 in. MIP connections. Built with an ArmorBoost EFV auto shut-off valve, it is designed to help restrict gas flow after a rupture or disconnect and is suitable for connecting water heaters, ranges, cooktops, and dryers.
Eastman 20YE50V048B Includes
- (1) 48 in. 1/2 in. OD yellow epoxy-coated gas connector
- (1) 1/2 in. MIP tapped 3/8 in. FIP fitting
- (1) 1/2 in. MIP tapped 3/8 in. FIP ArmorBoost EFV auto shut-off valve
Eastman 20YE50V048B Features
- Corrugated stainless steel construction with yellow epoxy coating for added corrosion resistance
- 48 in. connector length with 1/2 in. OD tubing
- 1/2 in. MIP x 1/2 in. MIP end connections

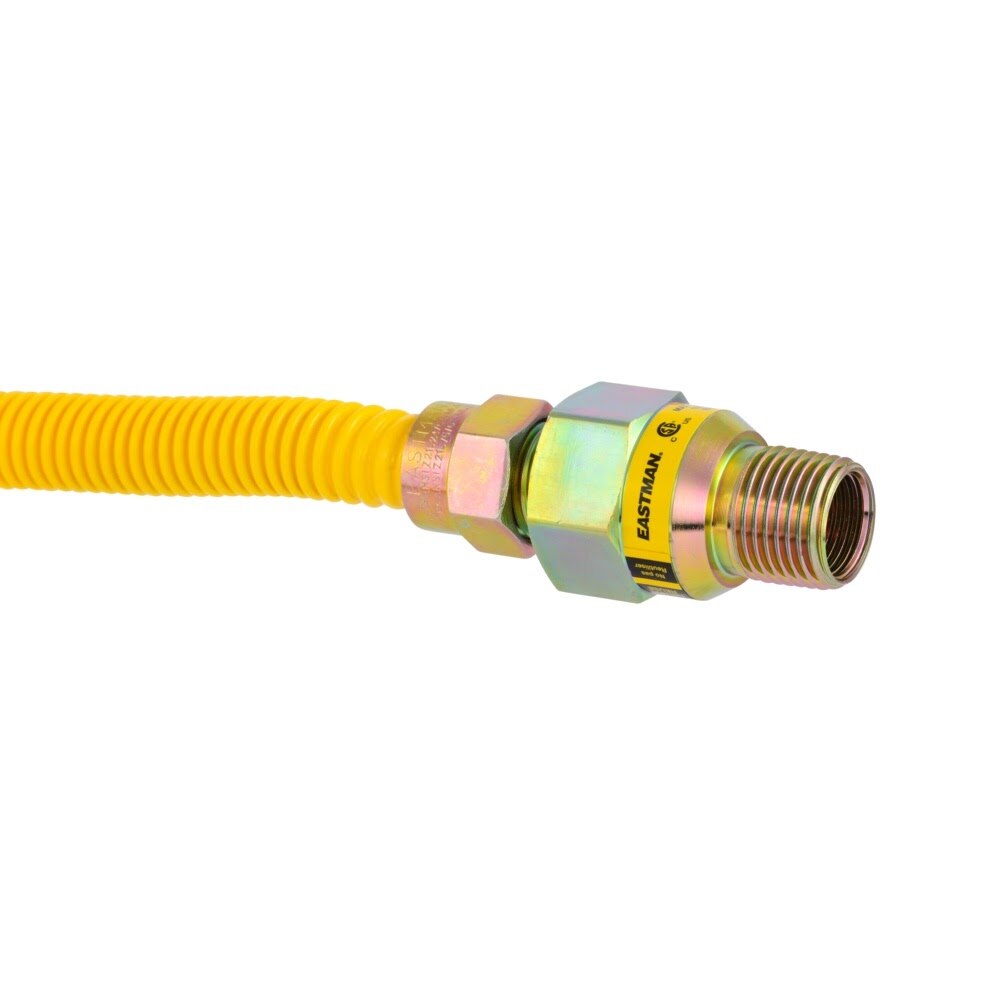

- ArmorBoost EFV auto shut-off valve helps restrict gas flow after a rupture or disconnect
- Fire-safe thermal ring expands at extreme temperatures to help stop gas flow
- Designed for use with water heaters, ranges, cooktops, and dryers
- CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
Eastman 20YE50V048B Specifications
| Product Type | Gas Connector |
| Length | 48 in. |
| Outside Diameter | 1/2 in. |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | MIP |
| Material | Stainless Steel |
| Coating | Yellow Epoxy |
| Valve Type | ArmorBoost EFV Auto Shut-Off Valve |
| Working Pressure | 1/2 psi |
| Temperature Rating | -20 Degree F to 150 Degree F |
| BTU Rating | Up to 60,500 BTUs |
| Application | Water Heater, Range, Dryer, Cooktop |
| Packaging Type | Bagged |
| Certification | ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 |
| Product Shipping Weight | 0.95 lbs |
